3-Point Hitch Subsoiler with Category 1 Hitch — Adjustable 12" to 22" Depth

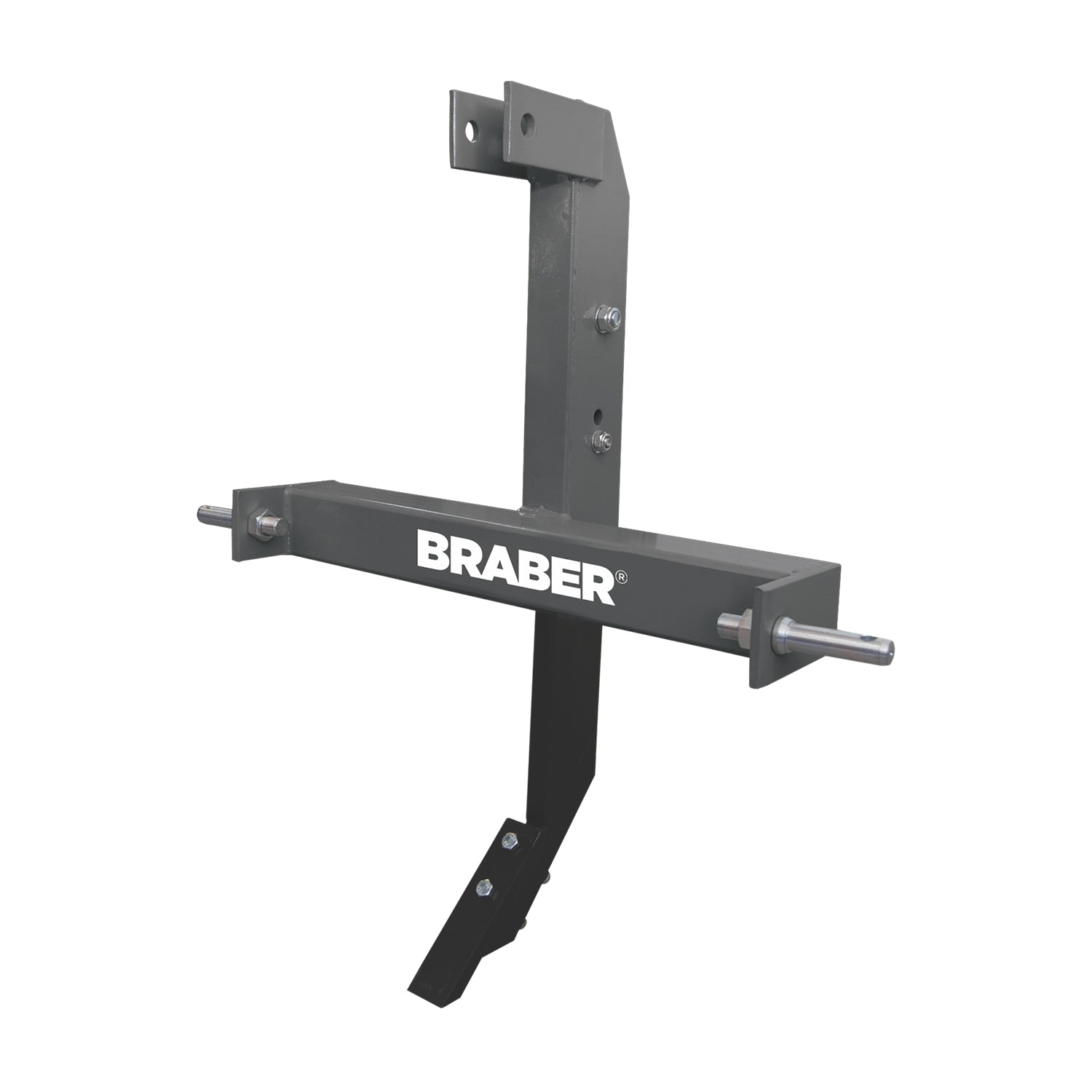

The Braber SS1RN is a single-shank subsoiler sized for compact tractors, built to break up hardpan and deep soil compaction that surface tillage can't reach. Mounting to a Category 1 3-point hitch and matched to tractors up to 40 HP, it rips the soil at an adjustable depth of 12" to 22" to fracture compacted layers, improve drainage, and open the ground for deeper root growth.

Its narrow 2" working width concentrates the tractor's power into a single deep cut for maximum penetration with minimal drag, while a durable 98 lb build stands up to high-stress soil conditions — making the SS1RN a practical, versatile tool for compact tractor owners.

Deep Soil Loosening for Compact Tractors

Compacted soil — hardpan — develops below the surface over years of traffic and settling, blocking drainage and stopping roots from reaching deeper moisture and nutrients. The SS1RN's single shank slices up to 22" deep to shatter that layer without inverting the topsoil, restoring drainage and air movement below the surface. The adjustable 12" to 22" depth lets you match the cut to the job and the available tractor power, and the narrow 2" profile keeps draft loads manageable for smaller tractors while still reaching deep.

Features

Category 1 3-Point Hitch

The SS1RN mounts directly to the tractor's draft system for universal compact-tractor compatibility:

• Category 1, 3-point hitch for easy mounting across compact tractors
• Matched to tractors up to 40 HP
• No engine or PTO required — the shank is drawn through the soil by the tractor

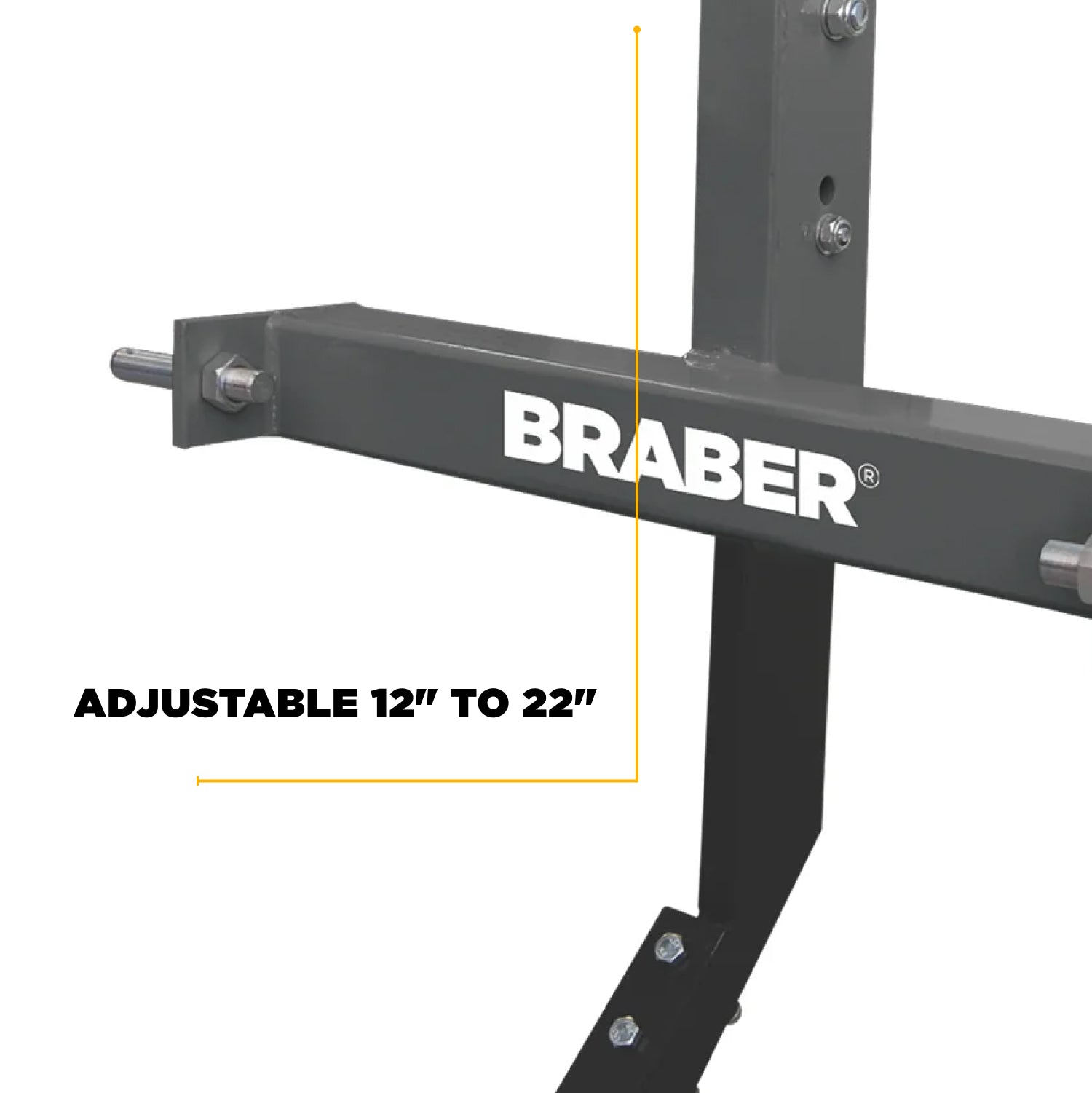

Adjustable 12" to 22" Working Depth

The adjustable digging depth from 12" to 22" gives you precise control over how deep the shank works, letting you set the cut to suit soil conditions, the task at hand, and the power your tractor has available.

Narrow 2" Profile

The 2" working width focuses all of the tractor's pulling force into a single narrow cut. That concentrated penetration reaches deep with minimal drag, making efficient use of a compact tractor's available horsepower.

Durable, High-Stress Build

The 98 lb construction is built to handle the high-stress loads of deep ripping in tough, compacted ground, for dependable performance season after season.

Versatile Utility

Beyond soil loosening, the SS1RN is useful for soil aeration and light underground utility installation — its deep, narrow channel makes it handy for tasks like running lines below the surface in addition to general subsoiling work.

Built for Soil Loosening and Sub-Surface Work

With adjustable depth and a narrow profile, the SS1RN is suited for:

• Shattering hardpan and breaking up soil compaction
• Improving drainage and water infiltration
• Aerating soil for deeper root development
• Light underground utility and line installation
• Sub-surface soil work on compact-tractor properties

Warranty

The SS1RN is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1, 3-Point Hitch
• Power Requirement: Up to 40 HP Tractor
• Working Depth: Adjustable 12" to 22"
• Working Width: 2"
• Number of Shanks: 1
• Weight: 98 lbs
• SKU: SS1RN
• Brand: Braber Equipment

Note: Working depth and performance vary with soil type, moisture, and condition, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Compact Deep Ripping — Built by Braber

The Braber SS1RN combines a Category 1 3-point hitch, an adjustable 12" to 22" working depth, and a narrow, deep-penetrating profile into one versatile single-shank subsoiler. For compact tractor owners breaking up hardpan and improving drainage, the SS1RN gets down where it counts.

SS1RN — 3-Point Hitch Subsoiler with Category 1 Hitch and Adjustable 12" to 22" Working Depth.
