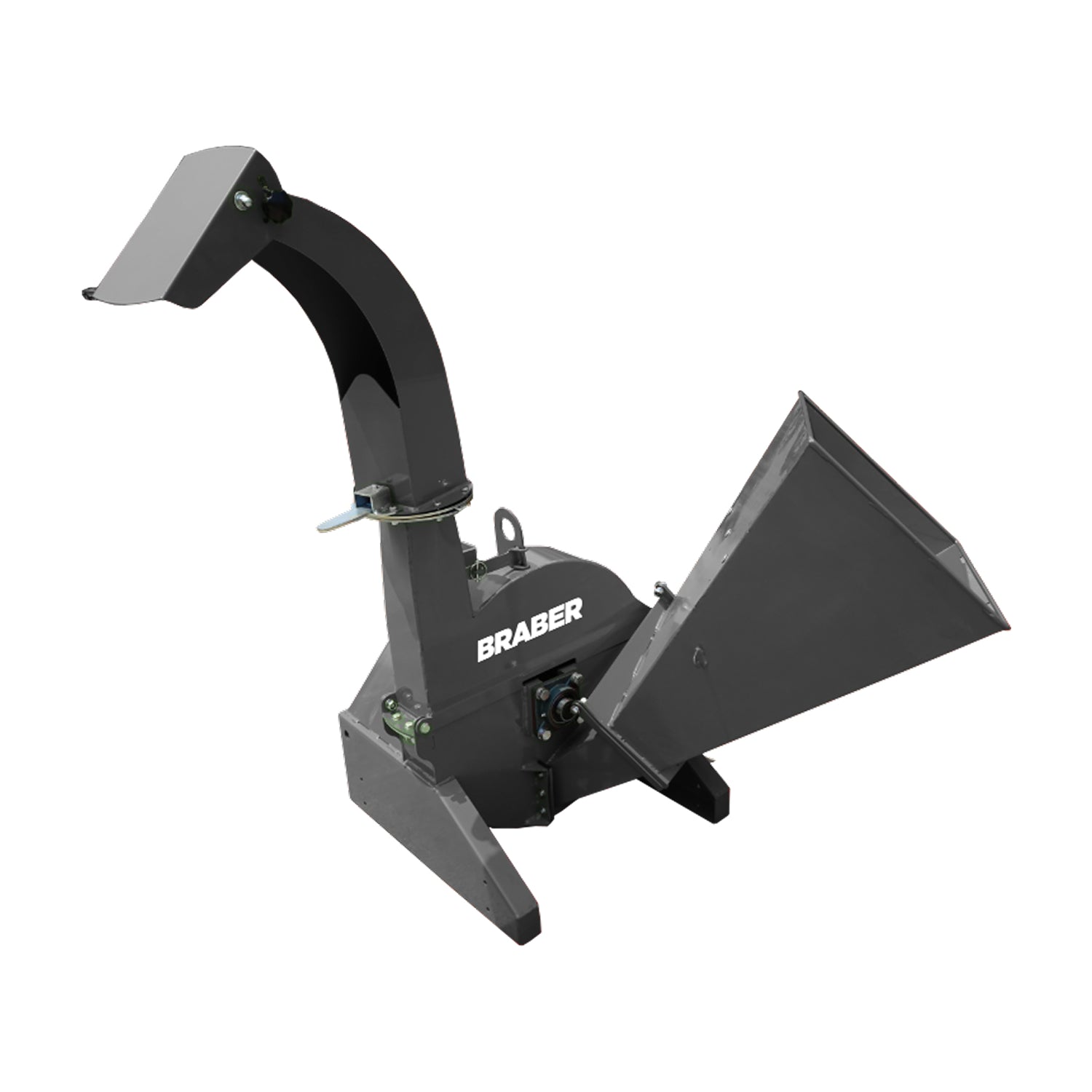

5" 3-Point Hitch PTO Wood Chipper for 18–45 HP Tractors

The Braber BE-WCX5 is a compact tractor-mounted wood chipper that puts dependable chipping power behind smaller tractors. Mounting to a Category 1 3-point hitch with a shear-pin PTO yoke and running off a 540–1000 RPM PTO, the BE-WCX5 handles branches and limbs up to 5" in diameter — an ideal match for property owners and operators running compact and utility tractors in the 18–45 HP range.

At its core is a 24-3/4" flywheel rotor weighing 125 lbs, fitted with special hardened blades and backed by a 270° rotating discharge chute. With no engine to fuel or maintain, the BE-WCX5 draws all its power directly from the tractor, making it a low-maintenance, high-value addition to the equipment lineup.

5" Capacity with Flywheel Cutting Power

The flywheel design gives this chipper its bite. The 24-3/4" rotor weighs 125 lbs, storing momentum as it spins to carry the blades cleanly through dense, knotty wood up to 5" in diameter. The cutting system uses special hardened blades — 1 fixed and 4 rotating — to slice material consistently, while the rotor mass keeps it turning steadily through tough branches. A large 5" x 10" chipper housing opening makes it easy to feed brushy, forked, and irregular material without excessive trimming.

Features

Category 1 3-Point Hitch with Shear-Pin PTO Yoke

The BE-WCX5 mounts and powers up directly from your tractor. Key mounting and drive features include:

• Category 1, 3-point hitch for easy tractor mounting
• Shear-pin PTO yoke to protect the driveline
• 540–1000 RPM PTO drive — no separate engine to fuel or maintain
• Matched to tractors in the 18–45 HP range

24-3/4" Flywheel Rotor with Hardened Blades

The chipping system is built around a 24-3/4" flywheel rotor for clean, reliable performance. Key cutting-system features include:

• Special hardened blades — 1 fixed and 4 rotating
• 125 lb rotor mass for momentum through tough material
• Consistent chip production across a range of branch sizes

Easy Flywheel Service Access

Maintenance is built into the design. Easy flywheel service access simplifies blade inspection, sharpening, and replacement, keeping downtime short and upkeep straightforward.

Large 5" x 10" Feed Opening

The 5" x 10" chipper housing opening is wider than it is tall, making it easy to feed branches with side limbs and forks without trimming everything down first — improving efficiency when working through piles of cleanup material.

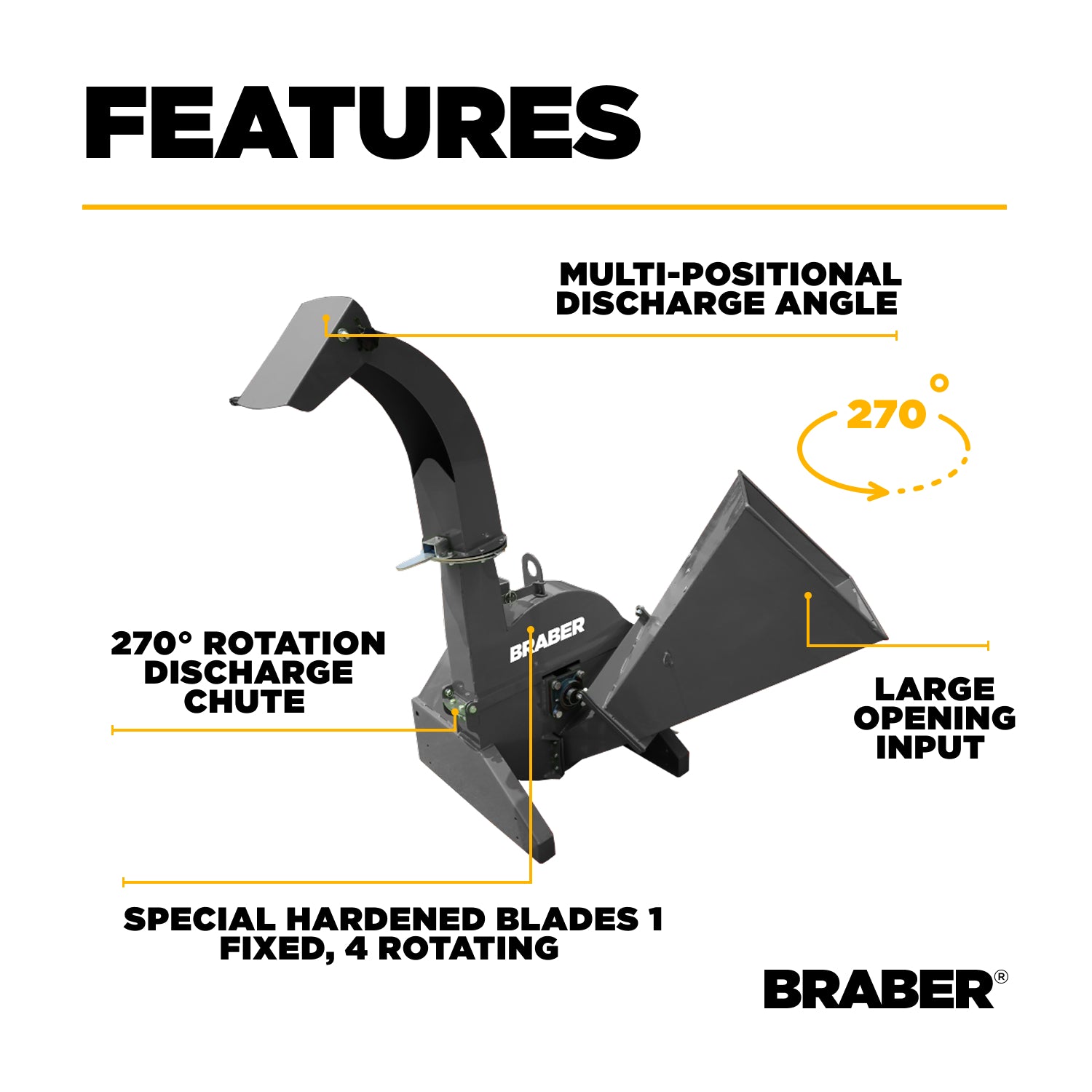

270° Rotating Discharge Chute

The discharge chute rotates a full 270° with a multi-positional angle and stands 60" tall, letting you direct the chip stream exactly where you want it — into a trailer, a pile, or back onto the ground as mulch — and reposition it without moving the tractor.

Stable, Compact Build

Built for stability and easy handling behind smaller tractors:

• 485 lb build for stability during operation
• 43" L x 55" W x 66" H footprint for a stable, balanced stance
• Finished in grey

Built for Property and Land Maintenance

With 5" capacity and tractor-driven power, the BE-WCX5 is suited for:

• Property and acreage cleanup — branches, limbs, and storm debris
• Landscaping and tree-service waste reduction
• Producing mulch for gardens, beds, and trails
• Farm, orchard, and woodlot maintenance

Warranty

The BE-WCX5 is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Chipper Capacity: 5"
• Chipper Housing Opening: 5" x 10"
• Mounting: Category 1, 3-Point Hitch with Shear-Pin PTO Yoke
• Power Requirement: 18–45 HP Tractor
• PTO Speed: 540–1000 RPM
• Cutting System: 24-3/4" Flywheel Rotor, Special Hardened Blades (1 Fixed, 4 Rotating)
• Rotor Weight: 125 lbs
• Flywheel Service: Easy Service Access
• Discharge Chute Rotation: 270°, Multi-Positional Angle
• Discharge Hood Height: 60"
• Dimensions: 43" L x 55" W x 66" H
• Color: Grey
• Weight: 485 lbs
• SKU: BE-WCX5
• Brand: Braber Equipment

Note: Maximum chipping capacity varies with the type and condition of the wood, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Tractor-Powered Chipping Power — Built by Braber

The Braber BE-WCX5 combines a Category 1 3-point hitch with a shear-pin PTO yoke, a 24-3/4" flywheel rotor with hardened blades, easy flywheel service access, and a 270° rotating discharge chute into one capable 5" tractor-mounted wood chipper. For tractor owners who need to process branches and limbs around the property, the BE-WCX5 puts reliable chipping power behind the hitch.

BE-WCX5 — 5" 3-Point Hitch PTO Wood Chipper for 18–45 HP Tractors.
