63" TS Rotary Tiller with Category 1 3-Point Hitch, Gear Drive, and 540 PTO

The Braber BE-TS160 is a PTO-driven rotary tiller that turns and pulverizes a full 63" path in a single pass, powered directly by your tractor. Mounting to a Category 1 3-point hitch with a fixed center mount and running off a 540 RPM PTO, it's built for property owners and operators preparing fields, gardens, and food plots faster than a walk-behind tiller ever could.

At its heart is a rugged gear drive system turning 54 C-shaped tines — 6 per flange — for thorough soil mixing and pulverizing. With adjustable skid shoes holding a consistent 6-1/2" tillage depth and a parking stand for easy storage and mounting, the BE-TS160 is a capable, low-maintenance tillage tool matched to tractors in the 20–50 HP range.

Full-Width Tilling for Faster Coverage

Unlike a walk-behind tiller, the BE-TS160 tills the full 63" width in one pass, drawing on the tractor's power through the PTO to work large areas quickly. The 54 C-shaped tines chop, mix, and pulverize the soil as the rotor spins, producing a fine, even seedbed and thoroughly incorporating residue and amendments. The adjustable skid shoes keep the rotor at a consistent 6-1/2" depth across the pass, so the finished tilth is uniform from edge to edge.

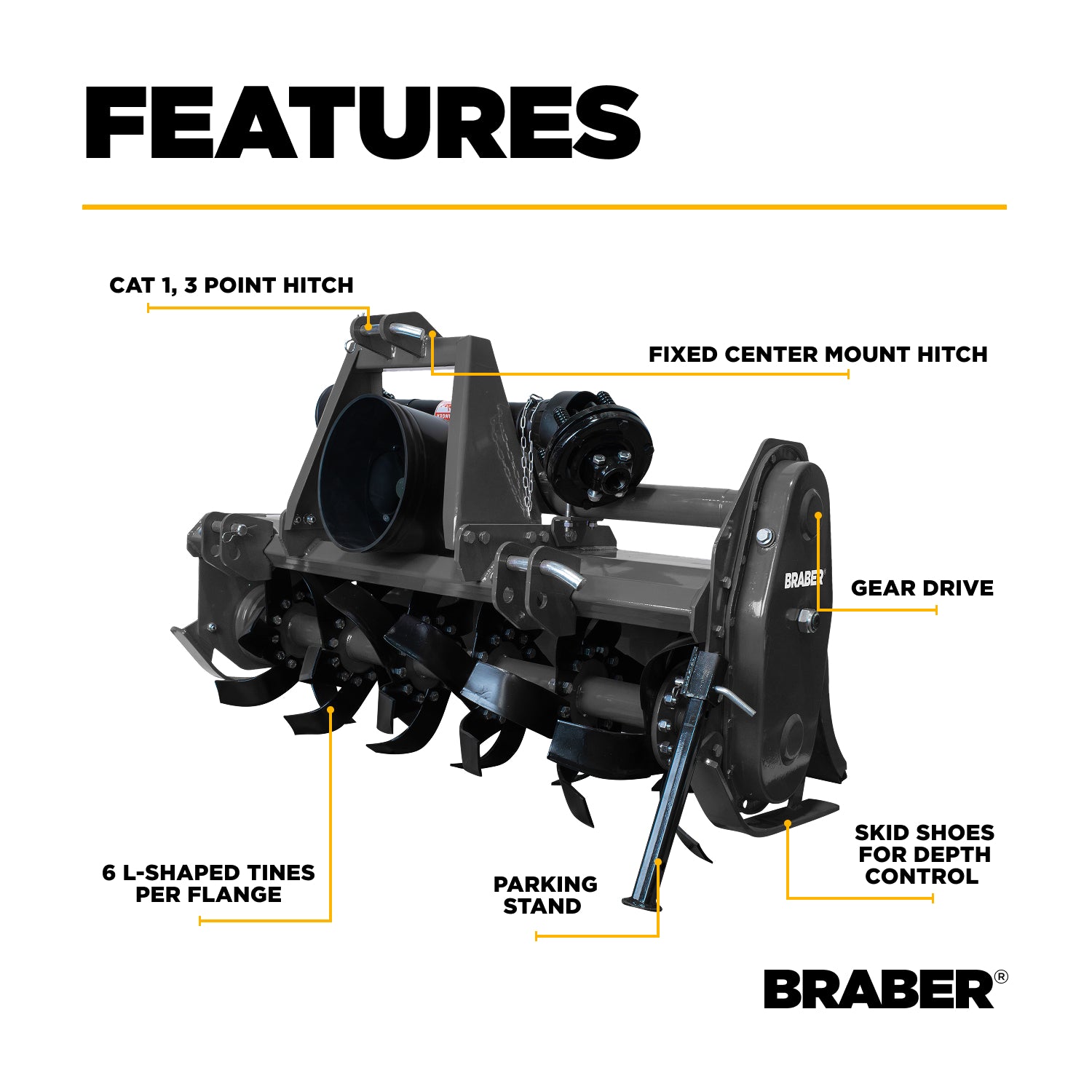

Features

Category 1 3-Point Hitch and 540 PTO Drive

The BE-TS160 mounts and powers up directly from your tractor:

• Category 1, 3-point hitch with fixed center mount for universal tractor integration
• 540 RPM PTO drive — no separate engine to fuel or maintain
• Matched to tractors in the 20–50 HP range

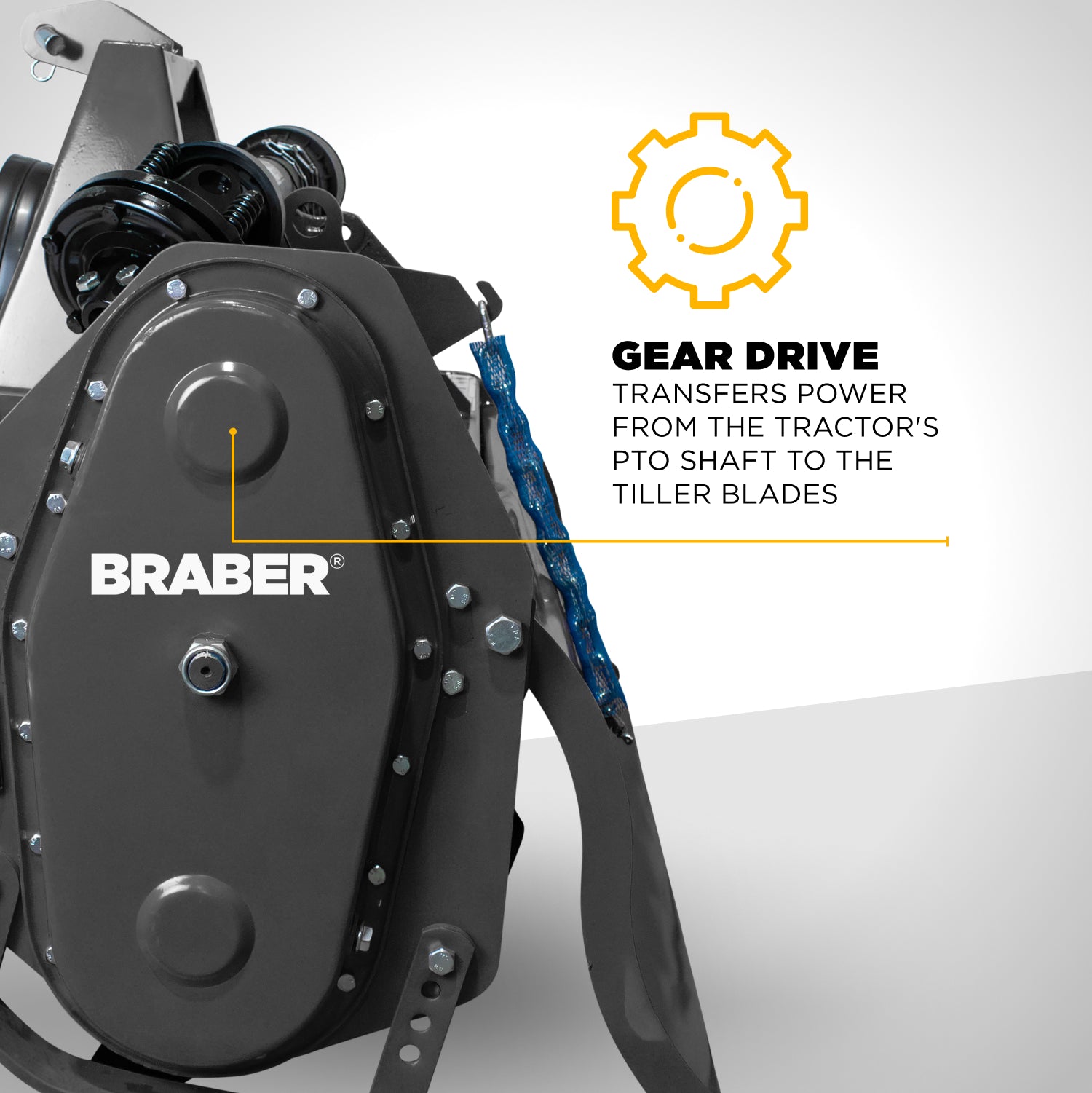

Rugged Gear Drive System

The BE-TS160 uses a heavy-duty gear drive to transfer power from the PTO to the rotor. Gear drive delivers superior power transfer and longevity compared with chain-driven designs, standing up to the demands of full-width tillage season after season.

54 C-Shaped Tines

The rotor carries 54 C-shaped tines — 6 per flange — for thorough, aggressive soil mixing. Key tine features include:

• 54 total blades for superior mixing and pulverizing
• 6 C-shaped tines per flange for consistent coverage across the width
• C-shaped profile well suited to general tilling and seedbed preparation

Adjustable Skid Shoes for Depth Control

The adjustable skid shoes let you set and maintain a consistent 6-1/2" tillage depth, keeping the rotor working evenly across the full width for uniform results.

Parking Stand

The included parking stand keeps the tiller stable and upright when detached, making storage tidy and re-mounting to the tractor quick and easy.

Built for Seedbed and Field Preparation

With a 63" tilling path and tractor-driven power, the BE-TS160 is suited for:

• Preparing seedbeds across fields, gardens, and food plots
• Breaking down and pulverizing soil for planting
• Incorporating crop residue, cover crops, and amendments
• Renovating and reworking established ground

Warranty

The BE-TS160 is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1, 3-Point Hitch, Fixed Center Mount
• Power Requirement: 20–50 HP Tractor
• PTO Speed: 540 RPM
• Tilling Width: 63"
• Tillage Depth: 6-1/2" (Adjustable via Skid Shoes)
• Drive System: Gear Drive
• Tines: 54 Total C-Shaped Tines (6 per Flange)
• Depth Control: Adjustable Skid Shoes
• Storage: Parking Stand
• SKU: BE-TS160
• Brand: Braber Equipment

Note: Tillage depth and performance vary with soil type, moisture, and condition, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Full-Width Tilling Power — Built by Braber

The Braber BE-TS160 combines a Category 1 3-point hitch, 540 PTO drive, a rugged gear drive system, and 54 C-shaped tines into one capable 63" rotary tiller. For tractor owners preparing seedbeds across fields and plots, the BE-TS160 turns and pulverizes the soil in a single full-width pass.

BE-TS160 — 63" TS Rotary Tiller with Category 1 3-Point Hitch, Gear Drive, and 540 PTO.
