3-Point Combination Tedder Rake with Tandem Wheel — Category 1 & 2 Swivel Hitch, Teds and Rakes

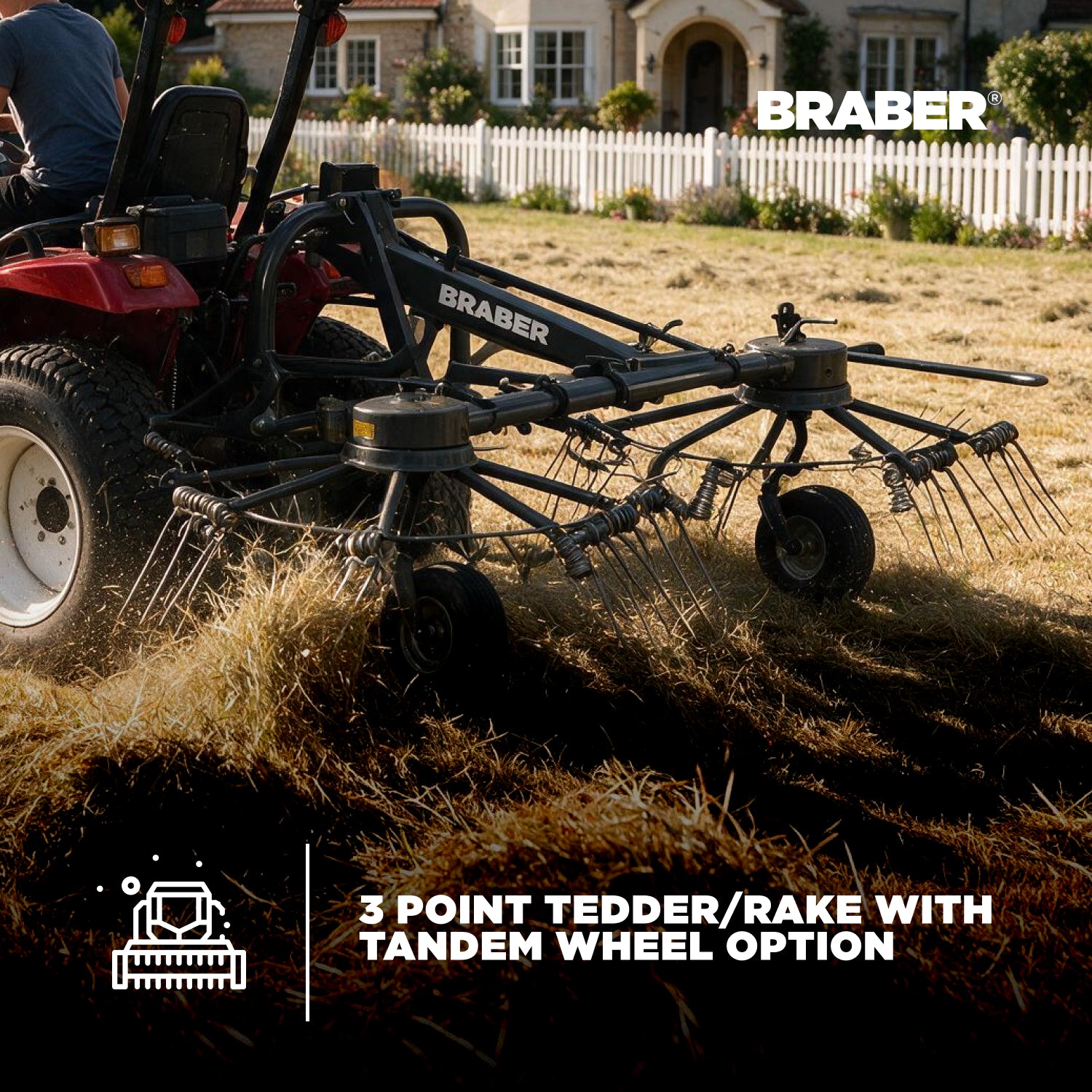

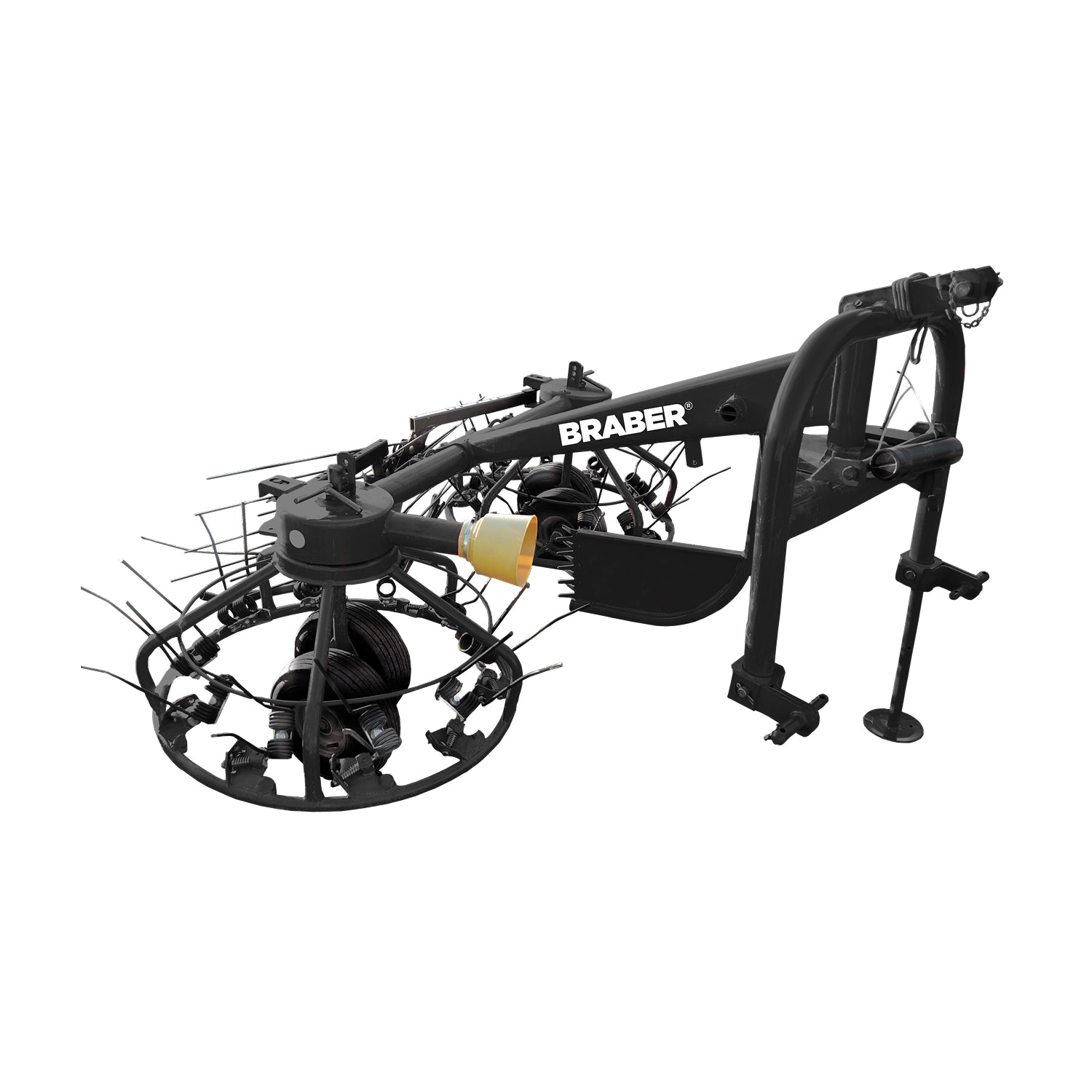

The Braber BE-TR300T is a 3-point combination tedder rake with a tandem dual-wheel configuration — doing two hay-making jobs in one machine while following the ground more smoothly and steadily than ever. It teds to spread and dry cut hay and rakes to windrow it for the baler, mounting to a Category 1 & 2 three-point hitch with a swivel design for maximum agility, and driven by a 400–540 RPM PTO through a protective slip-clutch. It spans a 9'10" working width and needs as little as 24 HP.

Two Hay Tools in One — With Tandem Stability

Making good hay takes two actions, and the BE-TR300T handles both. After cutting, set it to ted — the rotor spreads and fluffs the crop to speed drying. Once the hay is dry, adjust the same machine to rake, gathering it into a clean windrow ready for the baler. What sets this model apart is its tandem dual-wheel configuration: riding on paired wheels rather than a single set, it delivers superior stability and follows ground contours smoothly, so the rotor keeps a consistent height for a cleaner, more even ted and rake over rough or rolling ground. A larger diameter rotor improves raking action and crop handling, the swivel hitch lets the machine track the tractor around corners and contours, and the slip-clutch PTO protects both tractor and implement from shock loads.

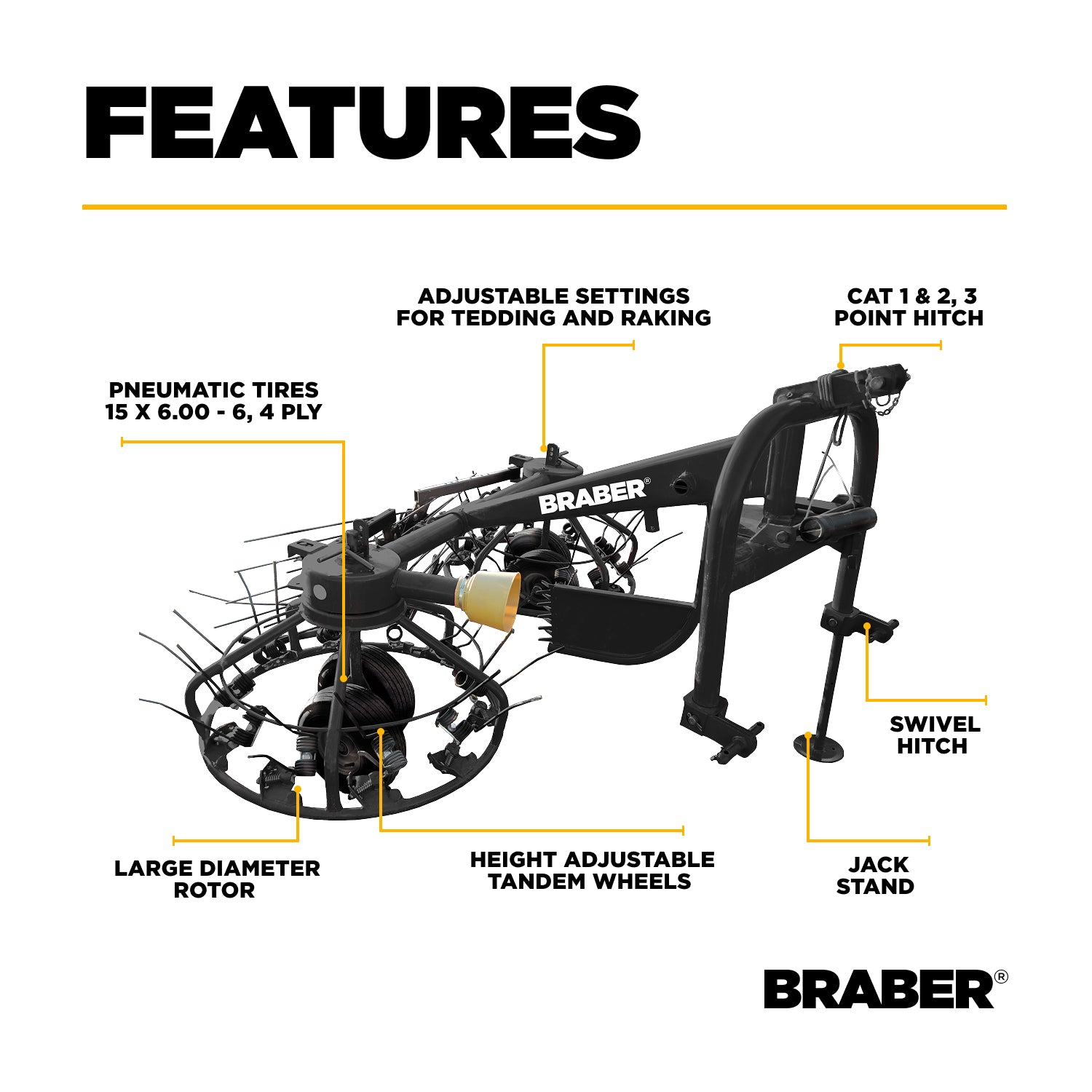

Features

Category 1 & 2 Swivel Hitch, 400–540 PTO, Slip-Clutch

A Category 1 & 2 three-point hitch with a swivel design mounts easily and follows the tractor for maximum agility, while a 400–540 RPM PTO and a slip-clutch deliver power and protect against shock loads. Requires as little as 24 HP.

Dual Tedding and Raking Settings

Easily adjustable settings for both tedding (spreading) and raking (windrowing) let one machine do the work of two.

Tandem Dual-Wheel Configuration

A tandem dual-wheel configuration provides superior stability and smooth ground following, holding a consistent rotor height for a cleaner ted and rake over uneven terrain.

Larger Diameter Rotor

A larger diameter rotor delivers a cleaner raking action and better crop handling.

4-Ply Balloon Tires

4-ply balloon tires (15" × 6") add durability and reduce soil compaction as the machine follows the ground.

Integrated Jack Stand

An integrated jack stand makes for easy mounting and stable storage.

Built for Small Hay Operations

With its dual-function design and tandem stability, the BE-TR300T is suited for:

• Tedding to spread and dry cut hay
• Raking dried hay into clean windrows for baling
• Small farms, hobby farms, and horse operations
• Hay-making over rough or rolling ground with compact tractors from 24 HP

Warranty

The BE-TR300T is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1 & 2, 3-Point Swivel Hitch
• Drive: 400–540 RPM PTO, Slip-Clutch
• Power Requirement: From 24 HP
• Working Width: 9'10"
• Functions: Tedding (Spreading) & Raking (Windrowing)
• Wheel Configuration: Tandem Dual-Wheel
• Rotor: Larger Diameter for Clean Raking
• Tires: 4-Ply Balloon, 15" × 6"
• SKU: BE-TR300T
• Brand: Braber Equipment

Note: This is the tandem-wheel version of the BE-TR300 tedder rake. Performance varies with crop, moisture, and ground conditions. Never operate without guards in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Ted and Rake in One — Built by Braber

The Braber BE-TR300T combines a Category 1 & 2 swivel hitch, slip-clutch PTO, a larger diameter rotor, adjustable tedding and raking settings, and a stabilizing tandem dual-wheel configuration into one versatile combination tedder rake. For spreading, drying, and windrowing hay with a single machine over any ground, the BE-TR300T does the work of two.

BE-TR300T — 3-Point Combination Tedder Rake with Tandem Wheel, Category 1 & 2 Swivel Hitch, and 9'10" Working Width.
