3-Point Combination Tedder Rake with Category 1 & 2 Swivel Hitch — Teds and Rakes, 9'10" Working Width

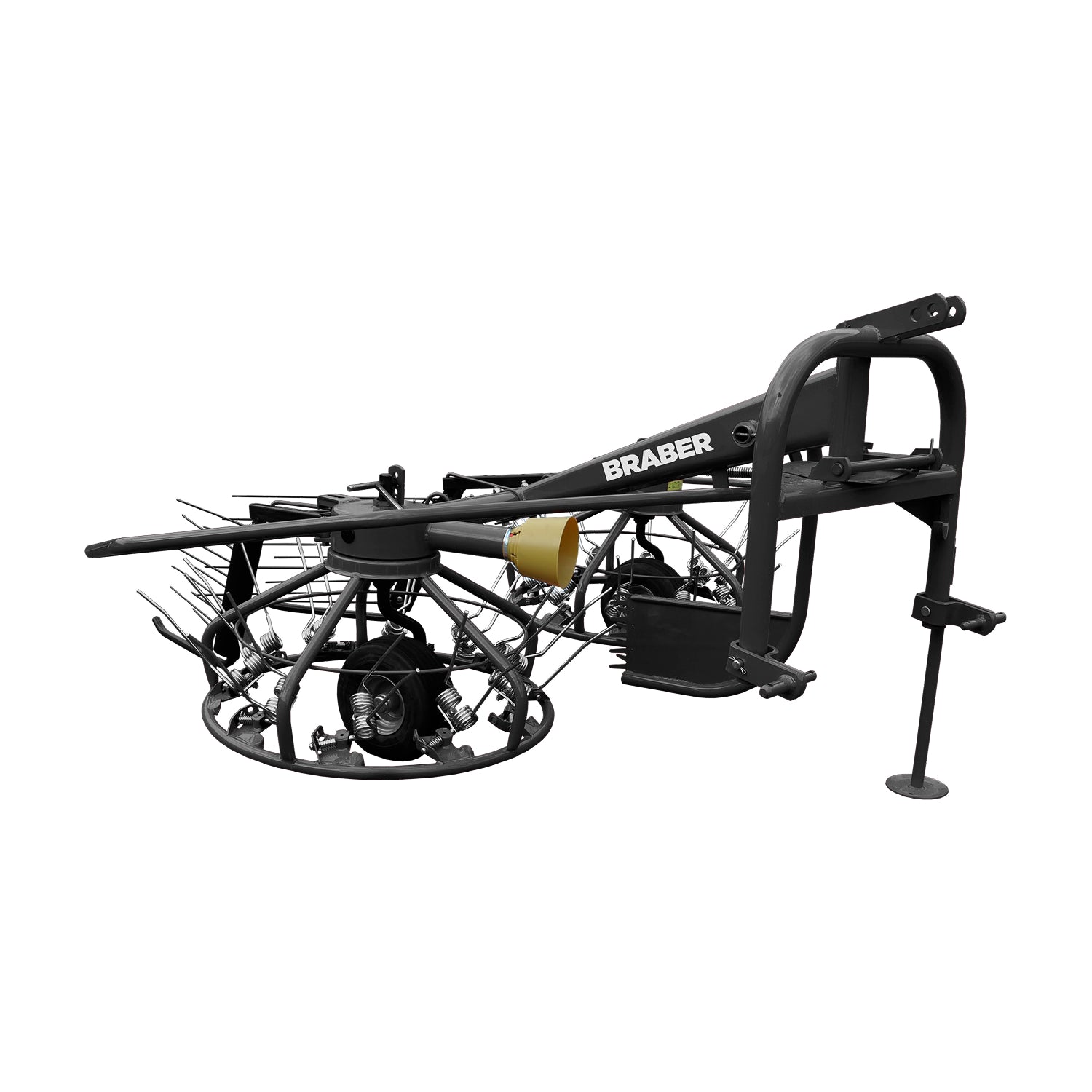

The Braber BE-TR300 is a 3-point combination tedder rake that does two hay-making jobs in one machine — tedding to spread and dry cut hay, and raking to windrow it for the baler. Mounting to a Category 1 & 2 three-point hitch with a swivel design for maximum agility, it's driven by a 400–540 RPM PTO through a protective slip-clutch, spans a 9'10" working width, and needs as little as 24 HP — making it a capable, compact hay tool for small operations.

Two Hay Tools in One

Making good hay takes two passes with two different actions, and the BE-TR300 handles both. After cutting, set it to ted — the rotor spreads and fluffs the crop to speed drying. Once the hay is dry, adjust the same machine to rake, gathering it into a clean windrow ready for the baler. Its larger diameter rotor gives a cleaner raking action and better crop handling, while height-adjustable wheels fine-tune tine clearance to lift the crop without dragging in dirt — keeping your hay clean. A swivel hitch lets the machine track the tractor smoothly around corners and contours, and the slip-clutch PTO protects both tractor and implement from shock loads. Similar in function to a classic haybob, it replaces two separate implements with one.

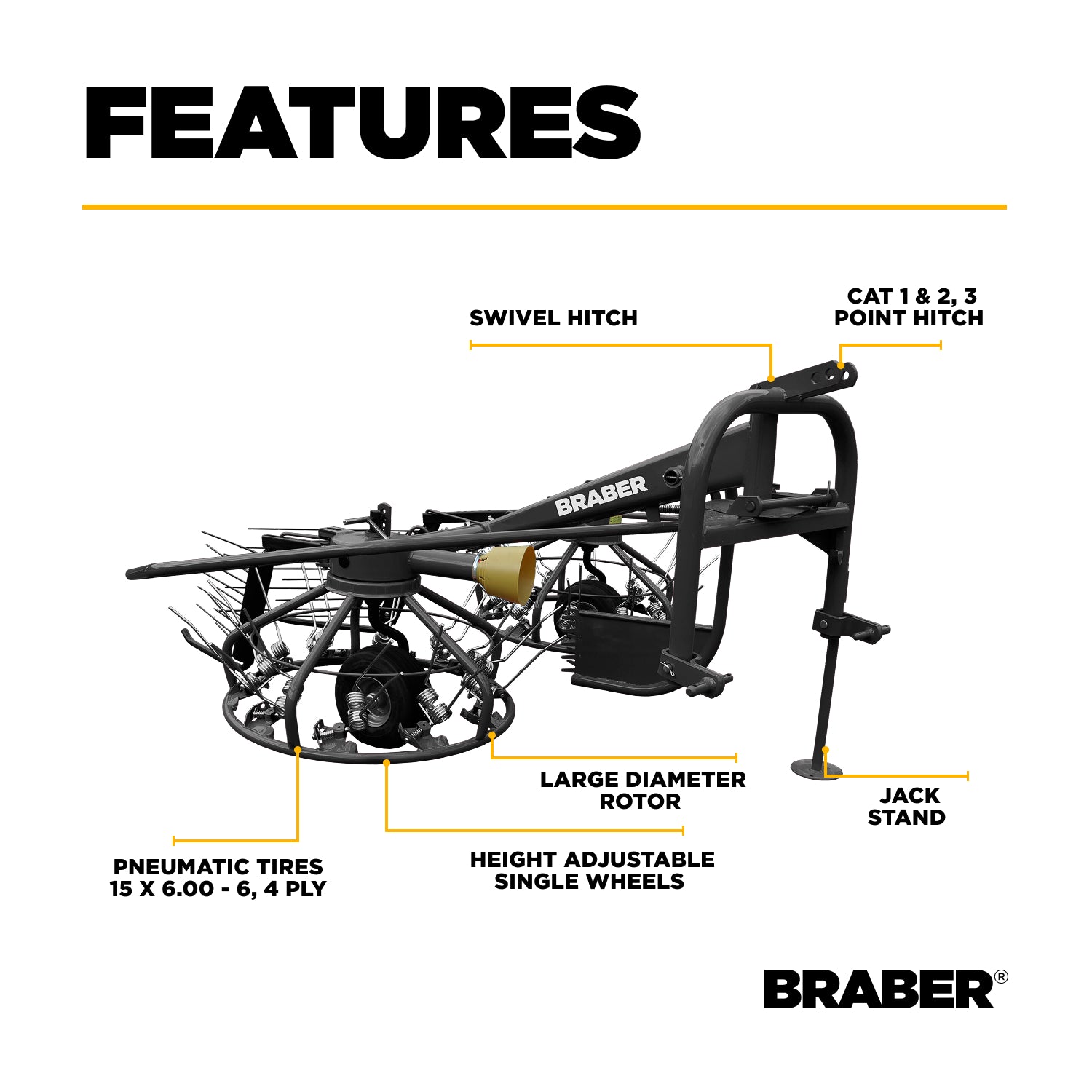

Features

Category 1 & 2 Swivel Hitch, 400–540 PTO, Slip-Clutch

A Category 1 & 2 three-point hitch with a swivel design mounts easily and follows the tractor for maximum agility, while a 400–540 RPM PTO and a slip-clutch deliver power and protect against shock loads. Requires as little as 24 HP.

Dual Tedding and Raking Settings

Easily adjustable settings for both tedding (spreading) and raking (windrowing) let one machine do the work of two.

Larger Diameter Rotor

A larger diameter rotor delivers a cleaner raking action and better crop handling.

4-Ply Balloon Tires

4-ply balloon tires (15" × 6") add durability and reduce soil compaction as the machine follows the ground.

Height-Adjustable Wheels

Height-adjustable wheels fine-tune tine clearance to minimize dirt contamination and keep the crop clean.

Integrated Jack Stand

An integrated jack stand makes for easy mounting and stable storage.

Built for Small Hay Operations

With its dual-function design, the BE-TR300 is suited for:

• Tedding to spread and dry cut hay
• Raking dried hay into clean windrows for baling
• Small farms, hobby farms, and horse operations
• Hay-making with compact tractors from 24 HP

Warranty

The BE-TR300 is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1 & 2, 3-Point Swivel Hitch
• Drive: 400–540 RPM PTO, Slip-Clutch
• Power Requirement: From 24 HP
• Working Width: 9'10"
• Functions: Tedding (Spreading) & Raking (Windrowing)
• Rotor: Larger Diameter for Clean Raking
• Tires: 4-Ply Balloon, 15" × 6"
• Wheels: Height-Adjustable
• Configuration: Single (No Tandem)
• Weight: 661 lbs
• SKU: BE-TR300
• Brand: Braber Equipment

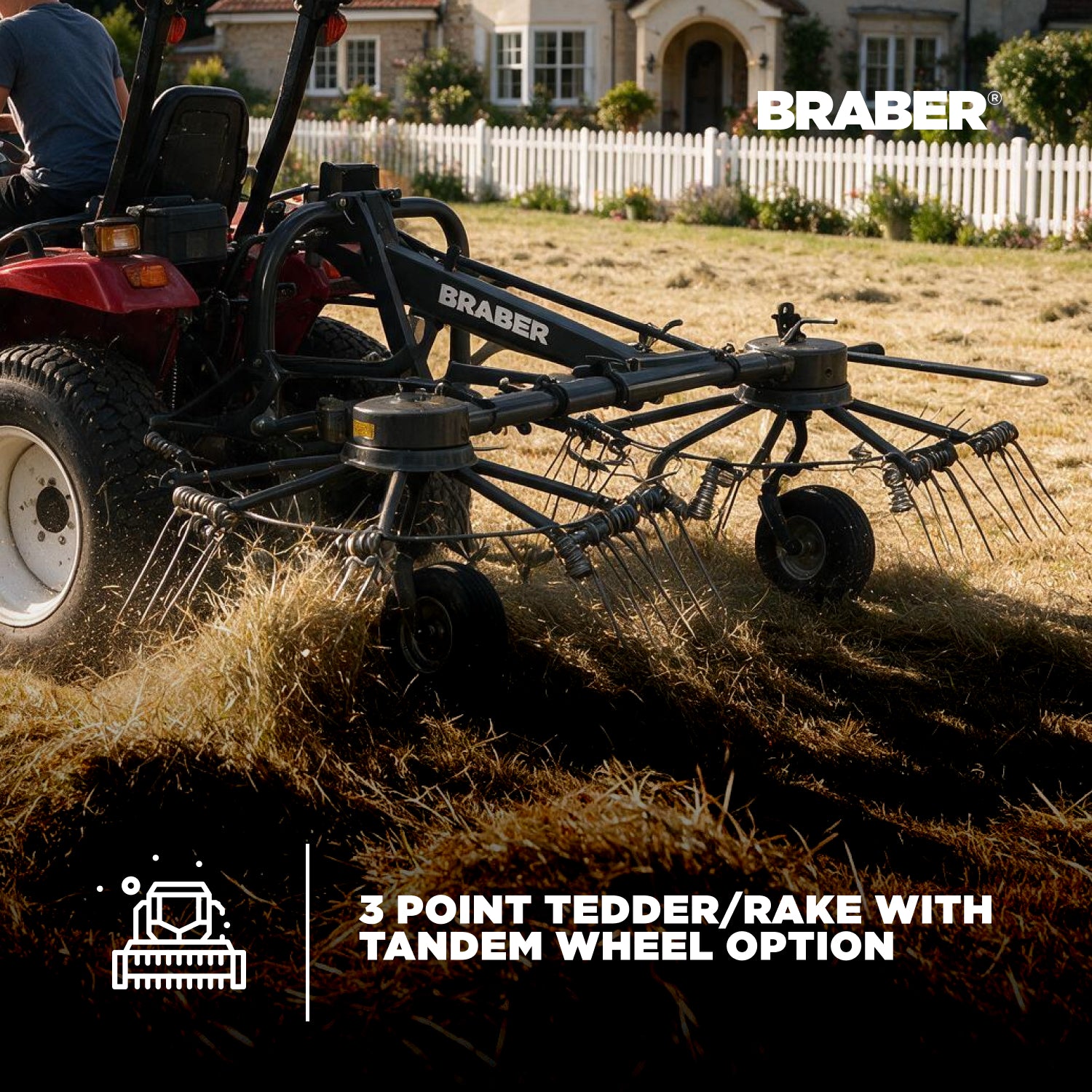

Note: A tandem-wheel version is available (BE-TR300T). Performance varies with crop, moisture, and ground conditions. Never operate without guards in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Ted and Rake in One — Built by Braber

The Braber BE-TR300 combines a Category 1 & 2 swivel hitch, slip-clutch PTO, a larger diameter rotor, and adjustable tedding and raking settings into one versatile combination tedder rake. For spreading, drying, and windrowing hay with a single machine, the BE-TR300 does the work of two.

BE-TR300 — 3-Point Combination Tedder Rake with Category 1 & 2 Swivel Hitch and 9'10" Working Width.
