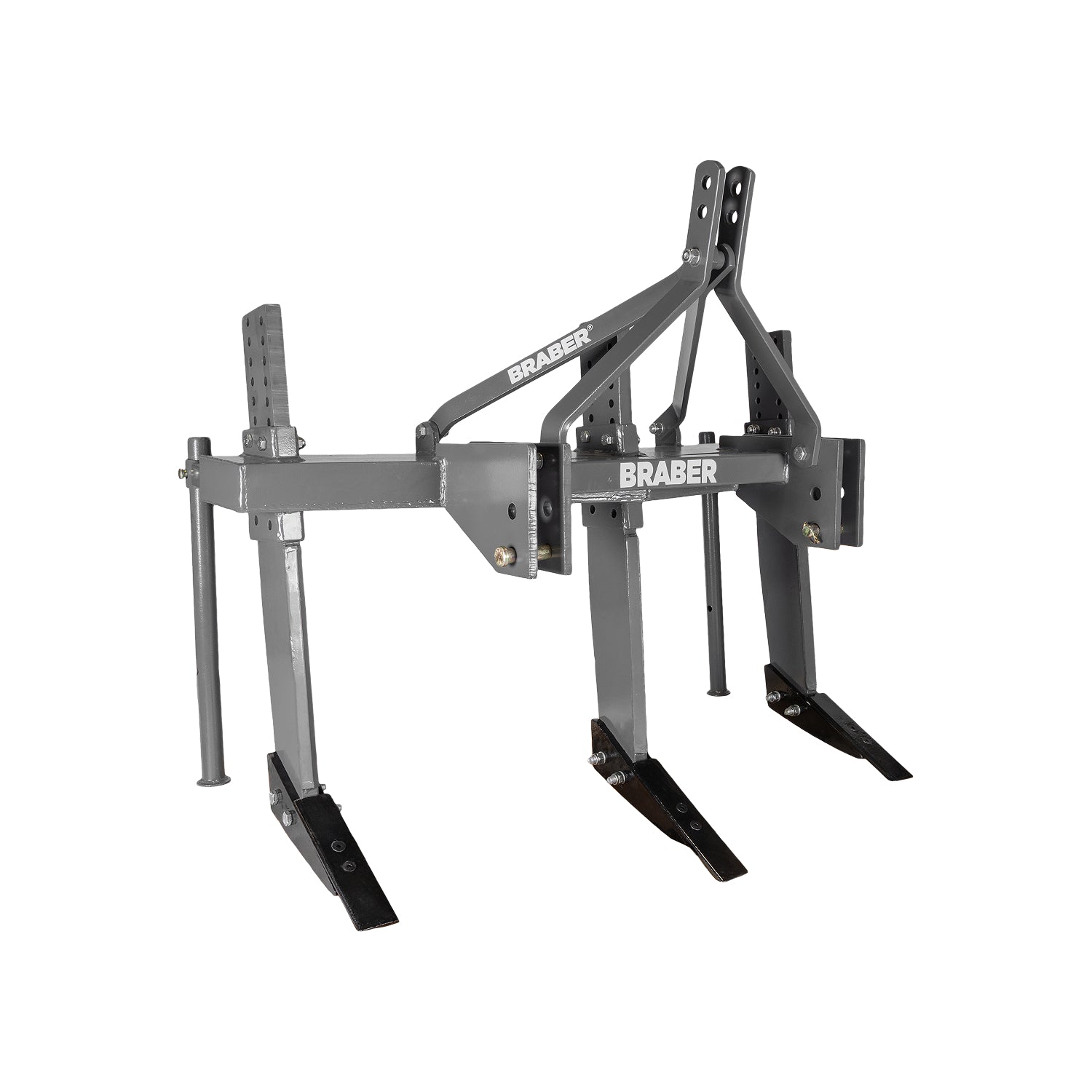

Heavy-Duty 3-Shank Subsoiler with Category 1 & 2 3-Point Hitch — 28" Working Depth

The Braber BE-SS3HD is a heavy-duty subsoiler built to break up hardpan and deep soil compaction that ordinary tillage can't reach. Mounting to a Category 1 & 2 3-point hitch and pulled by a tractor in the 90–115 HP range, it drives 3 shanks as deep as 28" to fracture compacted subsoil, improve drainage, and open the ground for deeper, healthier root development.

With extra-thick 4" x 4" construction and a 1,147 lb build, the BE-SS3HD is engineered to withstand the heavy draft loads of deep ripping in tough, compacted ground season after season.

Deep Soil Loosening That Tillage Can't Reach

Years of equipment traffic and natural settling create a compacted layer — hardpan — below the surface that blocks water drainage and stops roots from reaching deeper moisture and nutrients. The BE-SS3HD's 3 shanks penetrate up to 28" to fracture that layer without inverting the topsoil, restoring drainage and air movement deep in the soil profile. The 21" tine spacing across the 60" working width provides thorough coverage in a single pass, shattering compaction between the shank paths.

Features

Category 1 & 2 3-Point Hitch

The BE-SS3HD mounts directly to the tractor's draft system for versatile compatibility:

• Category 1 & 2, 3-point hitch for use across a range of tractors
• Matched to tractors in the 90–115 HP range for deep ripping in tough ground
• No engine or PTO required — the implement is drawn through the soil by the tractor

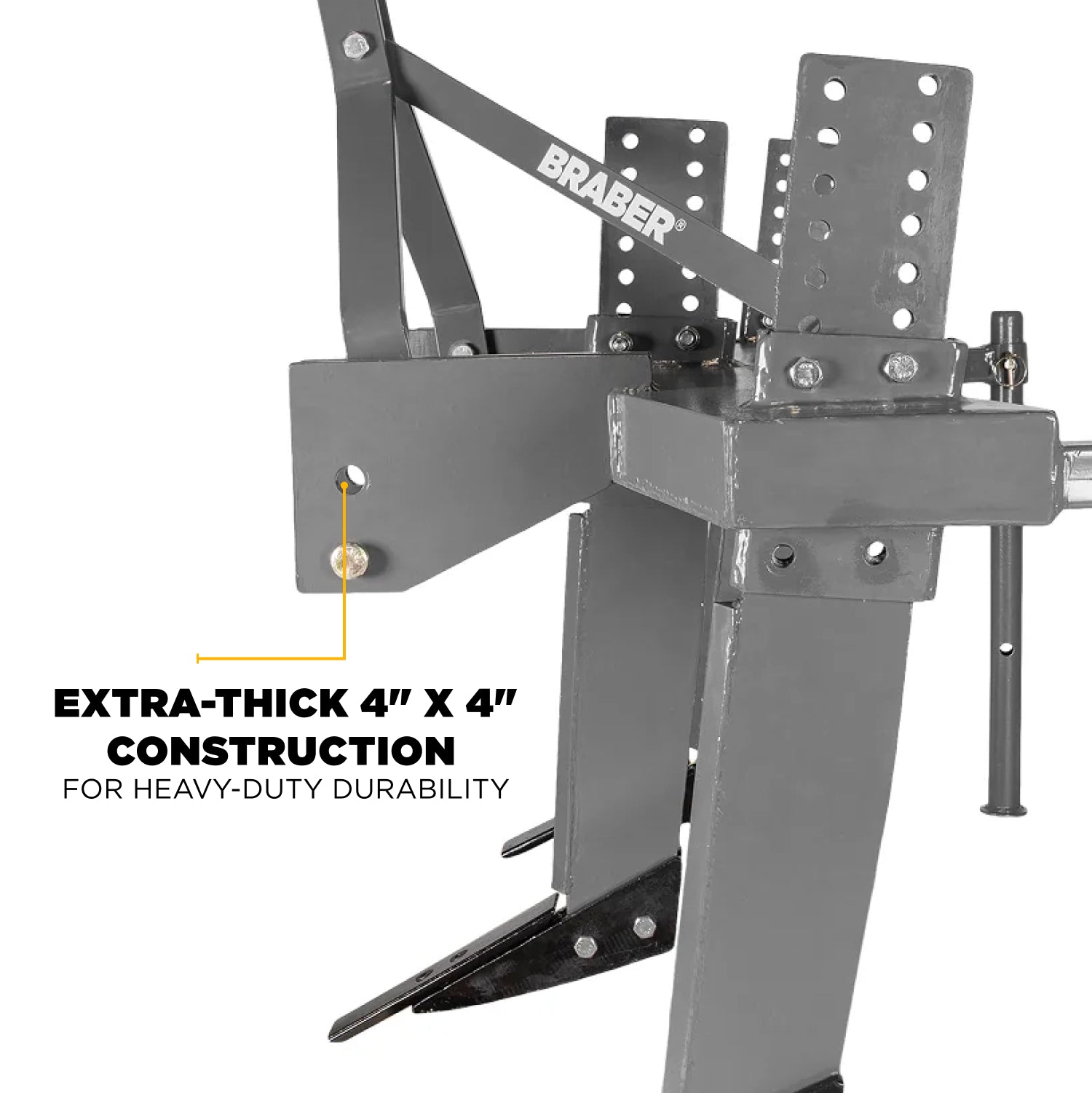

Extra-Thick 4" x 4" Heavy-Duty Construction

The frame is built from extra-thick 4" x 4" material for the structural strength deep subsoiling demands. The heavy-duty build stands up to the high draft loads generated when ripping compacted ground at depth, for durability over the long haul.

3-Shank Configuration

The BE-SS3HD uses a 3-shank layout with 21" tine spacing for thorough subsoiling coverage. The three shanks work the ground simultaneously across the full working width, fracturing the compacted layer efficiently in each pass.

28" Working Depth

With a working depth of up to 28", the BE-SS3HD reaches well below the typical compaction layer to break up hardpan and open deep drainage channels — depth that surface tillage tools simply can't achieve.

Stable, Heavy-Duty Build

Built for stability and durability under heavy draft loads:

• 1,147 lb build for stability and ground penetration
• 60" working width and 57" height for a stable, balanced footprint

Built for Deep Tillage and Soil Reclamation

With 28" of working depth and heavy-duty construction, the BE-SS3HD is suited for:

• Breaking up hardpan and deep soil compaction
• Improving drainage and water infiltration in fields and pastures
• Opening the soil for deeper root development and higher yields
• Reclaiming compacted ground for cultivation
• Deep ripping ahead of planting or land preparation

Warranty

The BE-SS3HD is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1 & 2, 3-Point Hitch
• Power Requirement: 90–115 HP Tractor
• Working Depth: Up to 28"
• Construction: Extra-Thick 4" x 4"
• Number of Shanks: 3
• Tine Spacing: 21"
• Working Width: 60"
• Height: 57"
• Weight: 1,147 lbs
• SKU: BE-SS3HD
• Brand: Braber Equipment

Note: Working depth and performance vary with soil type, moisture, and condition, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Heavy-Duty Deep Ripping — Built by Braber

The Braber BE-SS3HD combines a Category 1 & 2 3-point hitch, extra-thick 4" x 4" construction, a 3-shank configuration, and a 28" working depth into one rugged subsoiler built for the toughest ground. For operators breaking up hardpan and reclaiming compacted soil, the BE-SS3HD digs deep and holds up.

BE-SS3HD — Heavy-Duty 3-Shank Subsoiler with Category 1 & 2 3-Point Hitch and 28" Working Depth.
