Heavy-Duty 1-Shank Subsoiler with Category 2 3-Point Hitch — 28" Working Depth

The Braber BE-SS1HD is a heavy-duty single-shank subsoiler built to break up hardpan and deep soil compaction that ordinary tillage can't reach. Mounting to a Category 2 3-point hitch and pulled by a tractor in the 40–65 HP range, its single shank penetrates as deep as 28" to fracture compacted subsoil, improve drainage, and open the ground for deeper, healthier root development.

With heavy-duty construction, a replaceable point for extended service life, and a stable 232 lb build, the BE-SS1HD focuses the tractor's power into one deep cut for efficient deep ripping.

Deep Soil Loosening That Tillage Can't Reach

Years of equipment traffic and natural settling create a compacted layer — hardpan — below the surface that blocks water drainage and stops roots from reaching deeper moisture and nutrients. The BE-SS1HD's shank penetrates up to 28" to fracture that layer without inverting the topsoil, restoring drainage and air movement deep in the soil profile. Concentrating the tractor's pulling force into a single deep cut, it reaches depths that surface tillage tools simply can't achieve.

Features

Category 2 3-Point Hitch

The BE-SS1HD mounts directly to the tractor's draft system:

• Category 2, 3-point hitch for easy tractor mounting
• Matched to tractors in the 40–65 HP range for deep ripping in tough ground
• No engine or PTO required — the shank is drawn through the soil by the tractor

28" Working Depth

With a working depth of up to 28", the BE-SS1HD reaches well below the typical compaction layer to break up hardpan and open deep drainage channels — depth that surface tillage tools can't reach.

Heavy-Duty Construction

Built with heavy-duty construction to handle the high draft loads generated when ripping compacted ground at depth, the BE-SS1HD is made for durable, dependable performance over the long haul.

Replaceable Point

The shank is fitted with a replaceable point — the wear component at the tip can be renewed as it wears, extending the service life of the subsoiler and keeping maintenance simple and economical.

Stable Build

Built for stability and ground penetration under heavy draft loads:

• 232 lb build for stability and deep penetration

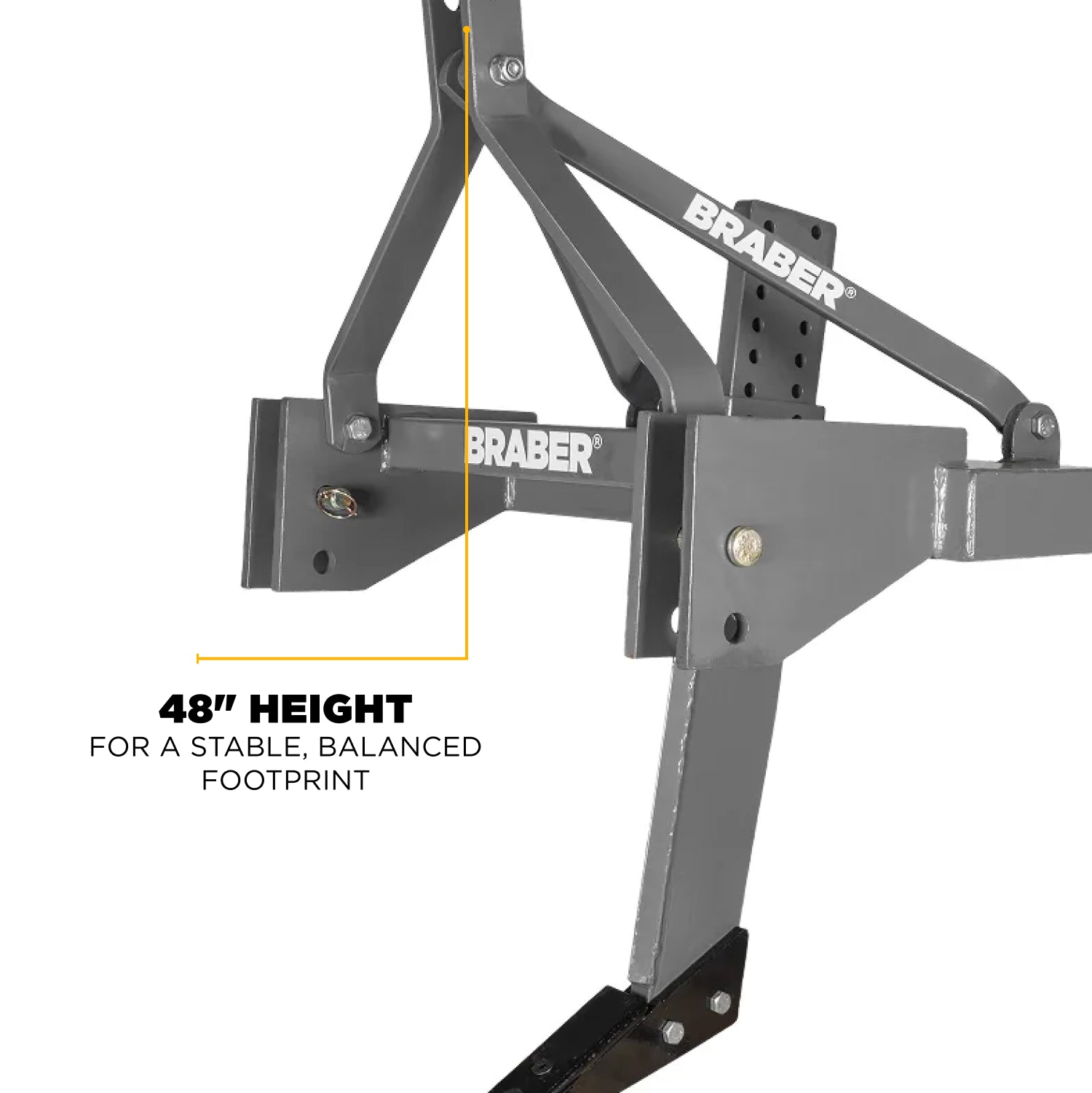

• 31" working width and 48" height for a stable, balanced footprint

Built for Deep Tillage and Soil Reclamation

With 28" of working depth and heavy-duty construction, the BE-SS1HD is suited for:

• Breaking up hardpan and deep soil compaction
• Improving drainage and water infiltration in fields and pastures
• Opening the soil for deeper root development and higher yields
• Reclaiming compacted ground for cultivation
• Deep ripping ahead of planting or land preparation

Warranty

The BE-SS1HD is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 2, 3-Point Hitch
• Power Requirement: 40–65 HP Tractor
• Working Depth: Up to 28"
• Number of Shanks: 1
• Construction: Heavy-Duty
• Wear Component: Replaceable Point
• Working Width: 31"
• Height: 48"
• Weight: 232 lbs
• SKU: BE-SS1HD
• Brand: Braber Equipment

Note: Working depth and performance vary with soil type, moisture, and condition, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Heavy-Duty Deep Ripping — Built by Braber

The Braber BE-SS1HD combines a Category 2 3-point hitch, heavy-duty construction, a replaceable point, and a 28" working depth into one rugged single-shank subsoiler. For operators breaking up hardpan and reclaiming compacted soil, the BE-SS1HD digs deep and holds up.

BE-SS1HD — Heavy-Duty 1-Shank Subsoiler with Category 2 3-Point Hitch and 28" Working Depth.
