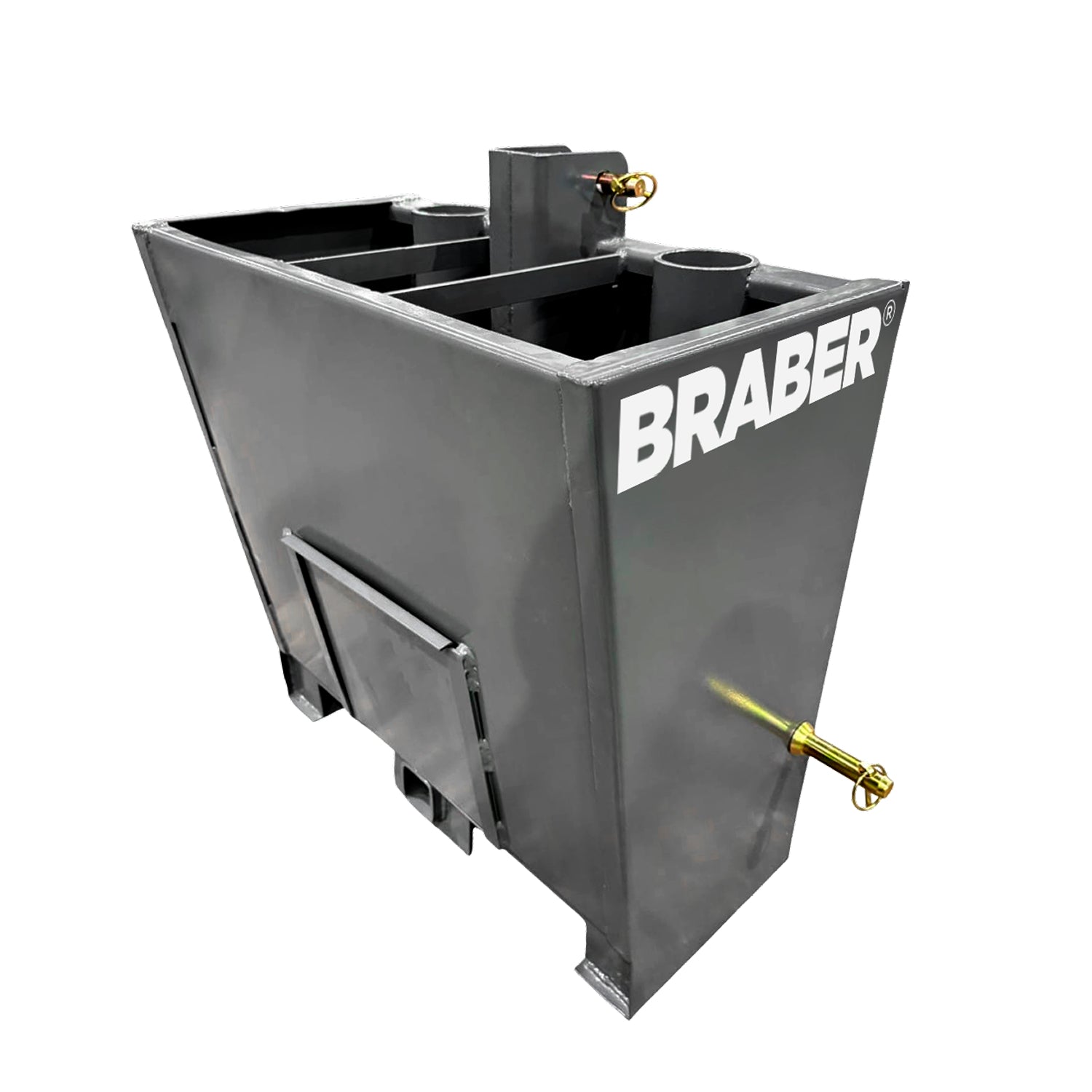

CAT 1 Rear Weight Box — Quick Hitch Compatible, with Tool Storage and 2" Receiver

The Braber BE-RWB1 is a CAT 1 rear weight box that counterbalances your tractor for safe, stable front-loader work — and does double duty as tool storage and a tow point. Mounting to a CAT 1 3-point hitch and fully Quick Hitch compatible, it fills with ballast material to a 575 lb total operating capacity, keeping the rear of the tractor planted when you're lifting heavy loads up front.

Beyond ballast, the BE-RWB1 adds real utility: a 2" square receiver for towing, two built-in sleeves for long-handle tools, and a sliding door for easy access to the interior — all on a heavy-duty powder-coated steel frame.

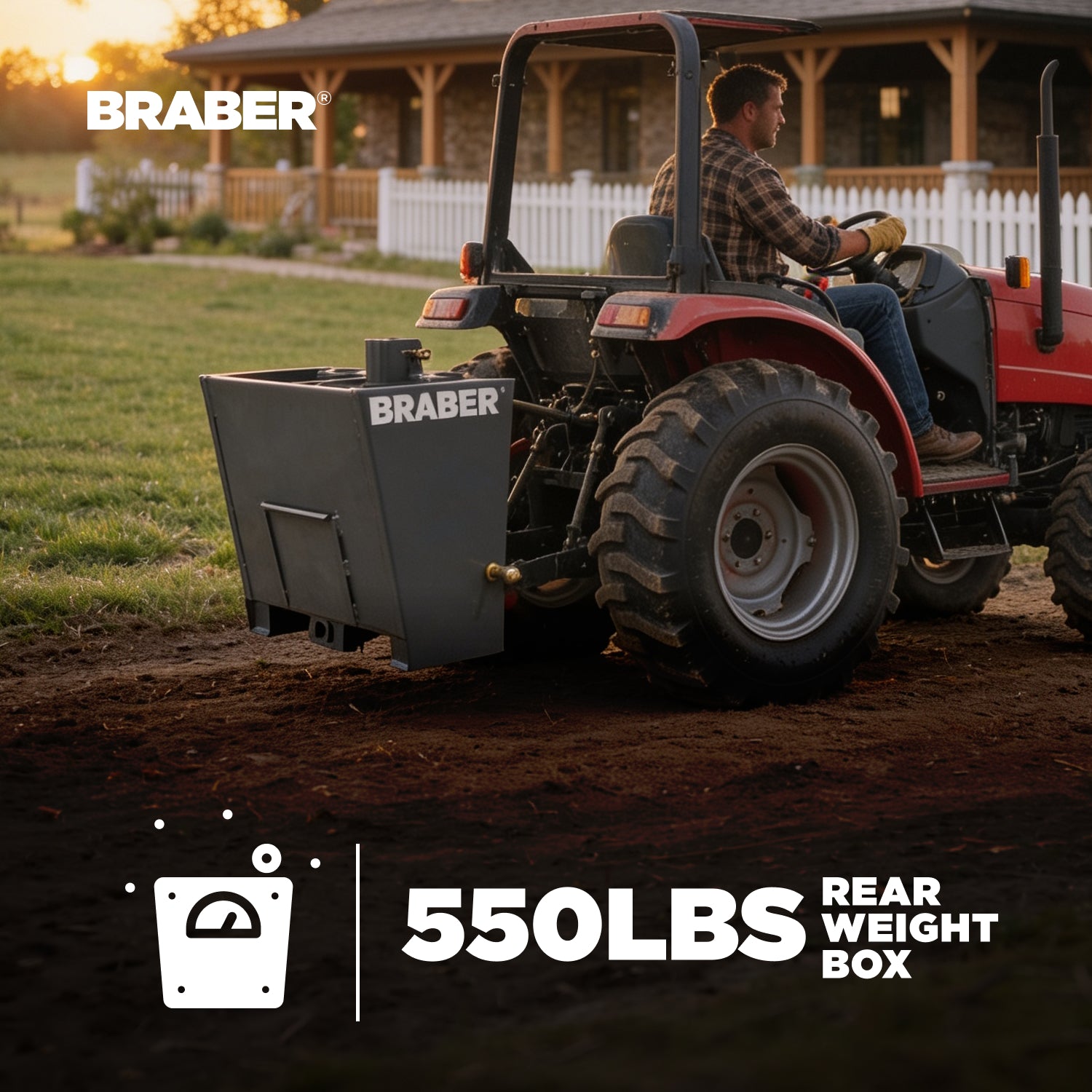

Counterbalance for Safe Loader Work

When you lift a heavy load on a front-end loader, the weight shifts forward and can lighten the rear of the tractor — reducing steering traction and, in extreme cases, lifting the rear wheels. A rear weight box solves that. Filled with sand, gravel, or other ballast, the BE-RWB1 puts up to 550 lbs of fill material (575 lbs total with the box) behind the rear axle to counterbalance the loader, keeping the tractor stable, the rear wheels planted, and steering responsive. Because it's Quick Hitch compatible, it goes on and off in moments when you need to swap to another implement.

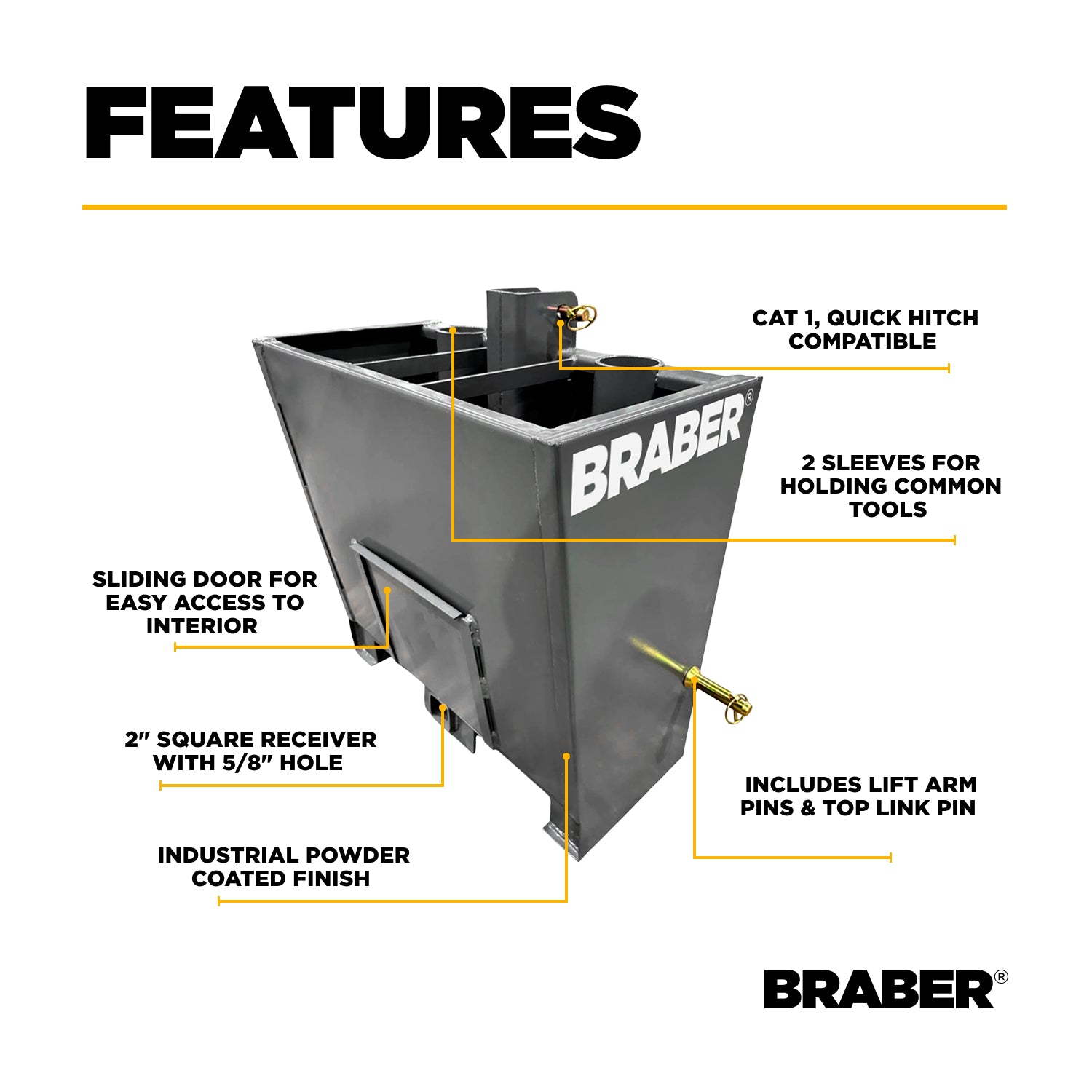

Features

CAT 1 Quick Hitch Compatible

The BE-RWB1 mounts to a CAT 1 3-point hitch and is fully Quick Hitch compatible for rapid attachment and removal. It ships with the necessary lift arm pins and top link pin for mounting.

575 lb Ballast Capacity

With a 3.67 ft³ box volume, the BE-RWB1 holds up to 550 lbs of fill material for a 575 lb total operating capacity — enough ballast to counterbalance loader work on compact and utility tractors.

Sliding Door

A sliding door provides easy access to the interior for filling, emptying, and reaching stored gear.

Built-In Tool Sleeves

Two built-in tool sleeves hold long-handle tools securely for transport, turning the weight box into a handy carrier for shovels, rakes, and similar gear.

Integrated 2" Receiver

An integrated 2" square receiver with a 5/8" pin hole lets the BE-RWB1 double as a tow point for utility trailers, adding versatility beyond ballast.

Heavy-Duty Powder-Coated Steel

Built from heavy-duty steel with a resilient powder-coated finish, the BE-RWB1 stands up to ballast material and outdoor use for long-term durability.

Built for Loader Work, Storage, and Towing

With ballast capacity, storage, and a tow receiver, the BE-RWB1 is suited for:

• Counterbalancing a front-end loader for safe, stable lifting
• Adding rear traction and tractor stability
• Carrying and organizing long-handle tools
• Towing utility trailers via the 2" receiver

Warranty

The BE-RWB1 is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

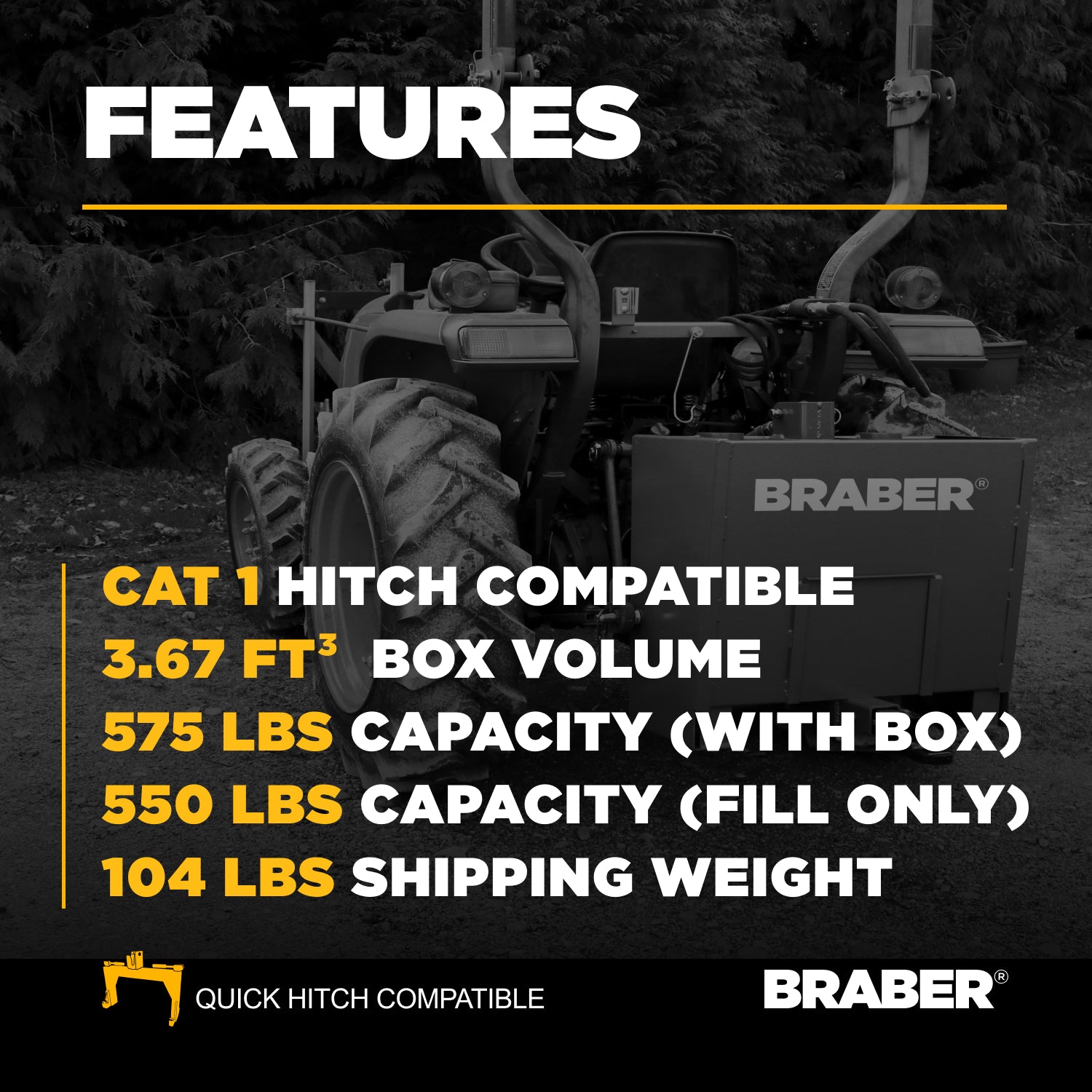

Product Specifications

• Mounting: CAT 1, 3-Point Hitch (Quick Hitch Compatible)
• Box Volume: 3.67 ft³
• Capacity (Fill Material): 550 lbs
• Total Operating Capacity: 575 lbs
• Receiver: 2" Square with 5/8" Hole
• Storage: Sliding Door, 2 Tool Sleeves
• Construction: Heavy-Duty Powder-Coated Steel
• Overall Dimensions: 26-1/8" x 13-7/8" x 28-3/4"
• Empty Weight: 104 lbs
• Included: Lift Arm Pins and Top Link Pin
• SKU: BE-RWB1
• Brand: Braber Equipment

Note: Always operate within your tractor's lift and stability limits. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Stable Loader Work — Built by Braber

The Braber BE-RWB1 combines CAT 1 Quick Hitch compatibility, a 575 lb ballast capacity, tool storage, and a 2" tow receiver on a heavy-duty powder-coated steel frame into one versatile rear weight box. For safe, stable front-loader work and handy gear storage, the BE-RWB1 earns its place on the back of the tractor.

BE-RWB1 — CAT 1 Rear Weight Box, Quick Hitch Compatible, with Tool Storage and 2" Receiver.
