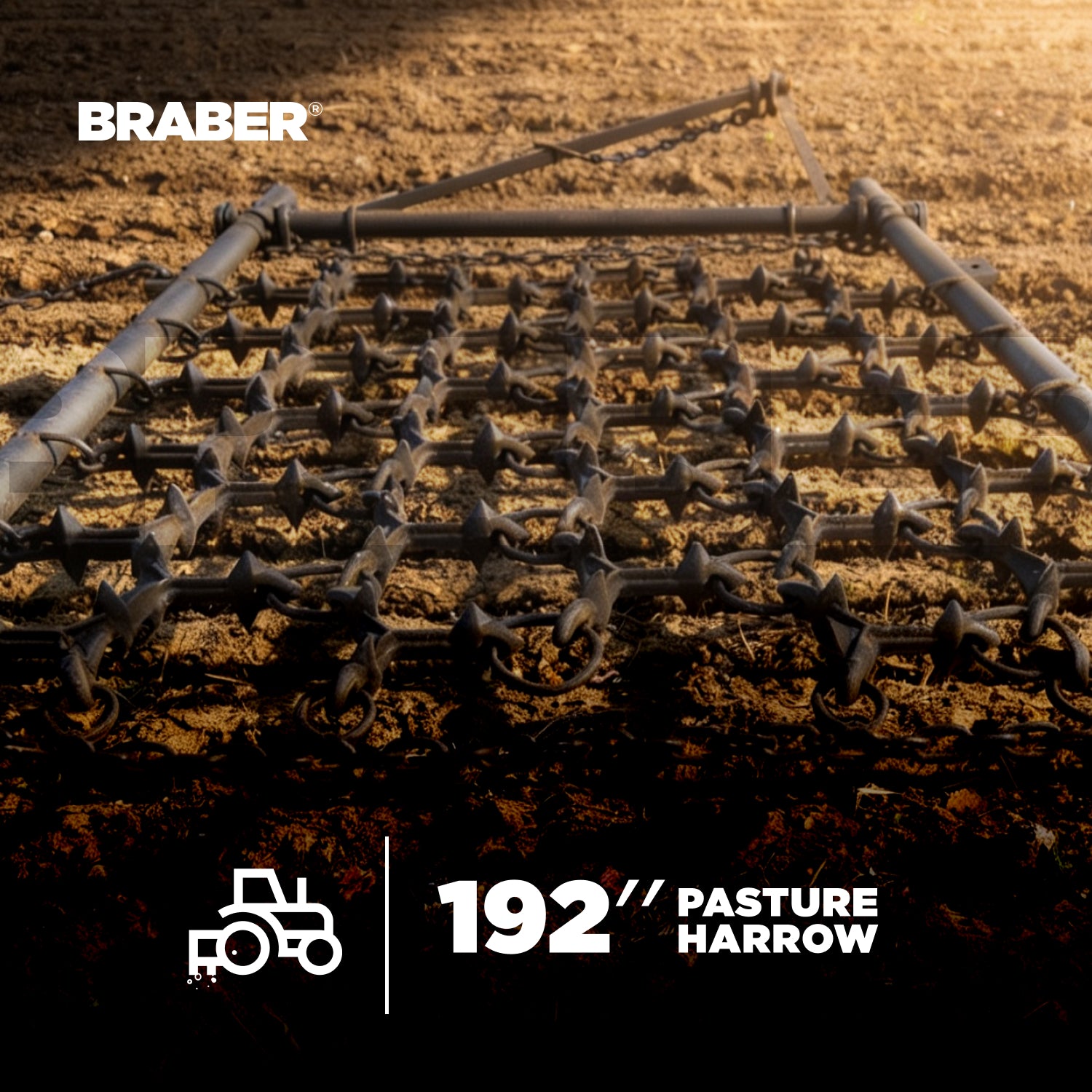

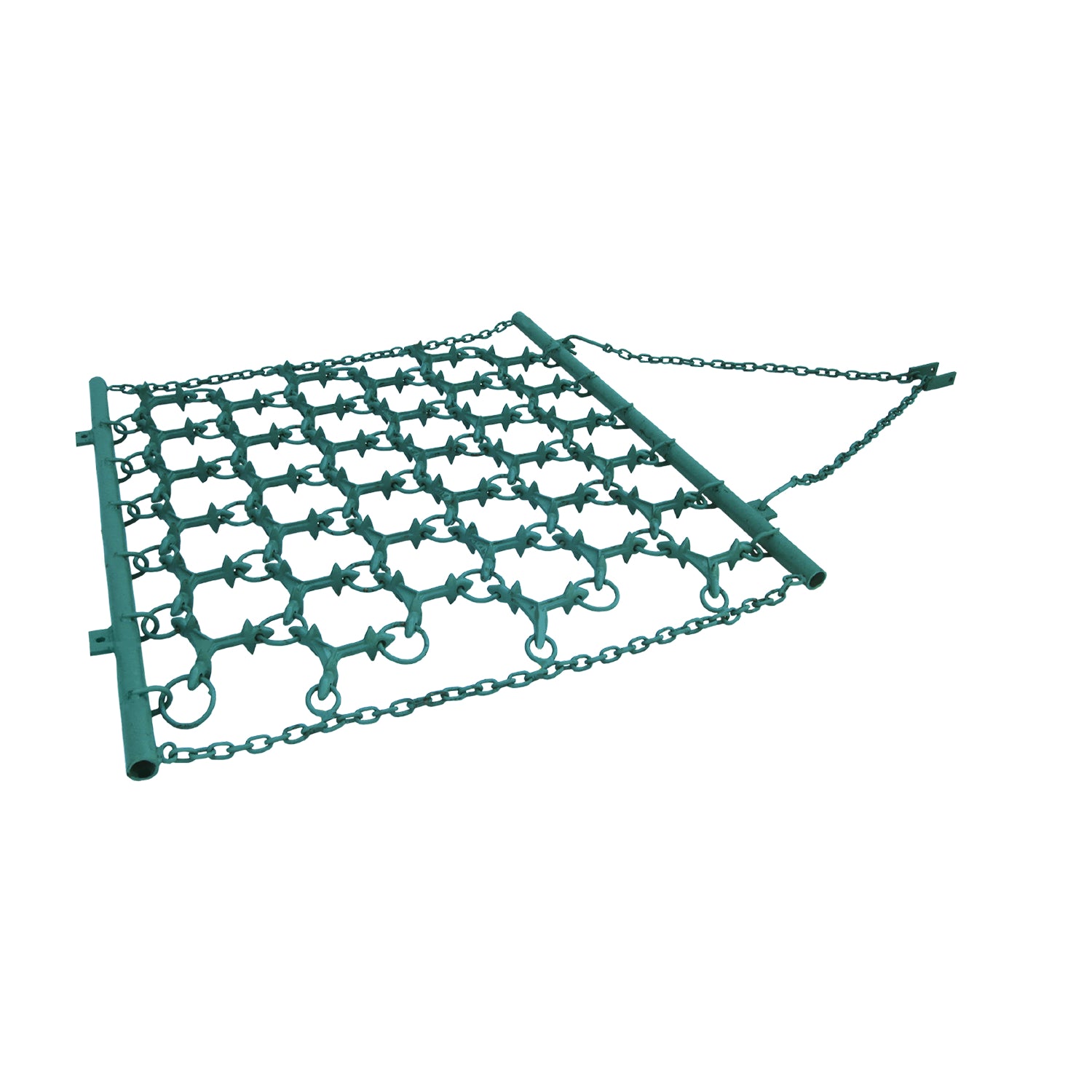

16' 4-Way Pasture Harrow — Reversible Cast Star Tines, 192" Working Width

The Braber BE-PH16FT is a 16' 4-way pasture harrow built to distribute manure, prepare seed beds, level mole hills, and renovate pastures across large acreage. With a 192" (16 ft) working width and a 66.5" working depth, it covers a lot of ground in each pass, while its reversible cast star tines work aggressively or finely depending on which way you run them. Included drag poles — finished in green — give controlled towing and even harrow action behind a tractor, ATV, or UTV.

The 4-Way Cast Star Tine Advantage

Where a chain harrow uses straight tines, a pasture harrow uses cast star tines — star-shaped cast points that tumble and bite as the mat is dragged, tearing apart manure pats, thatch, and clods far more aggressively. Because the harrow is reversible and can be run in different orientations, it works four ways — from aggressive tearing and pasture renovation on one side to fine leveling and seed-bed finishing on the other. Dragged across a pasture, it distributes and pulverizes manure to spread nutrients and break the parasite cycle, levels mole hills, aerates and renovates worn pasture, and prepares seed beds — all in a single, rugged tool. A heavy-duty pipe frame with extra-heavy construction and a 693 lb build keeps the tines biting for effective penetration and long life.

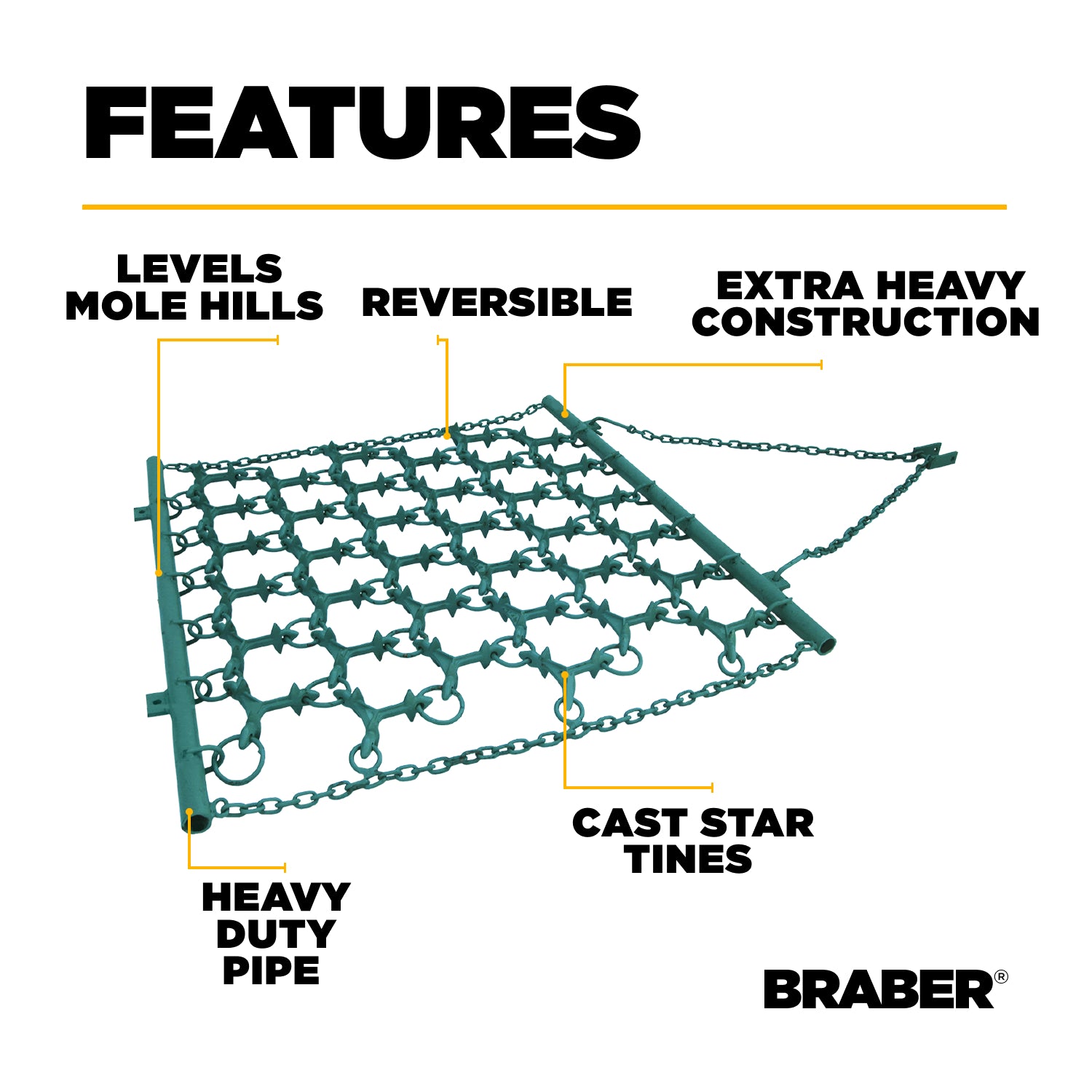

Features

192" Working Width

A wide 192" (16 ft) working width covers large pastures quickly, harrowing in the fewest passes.

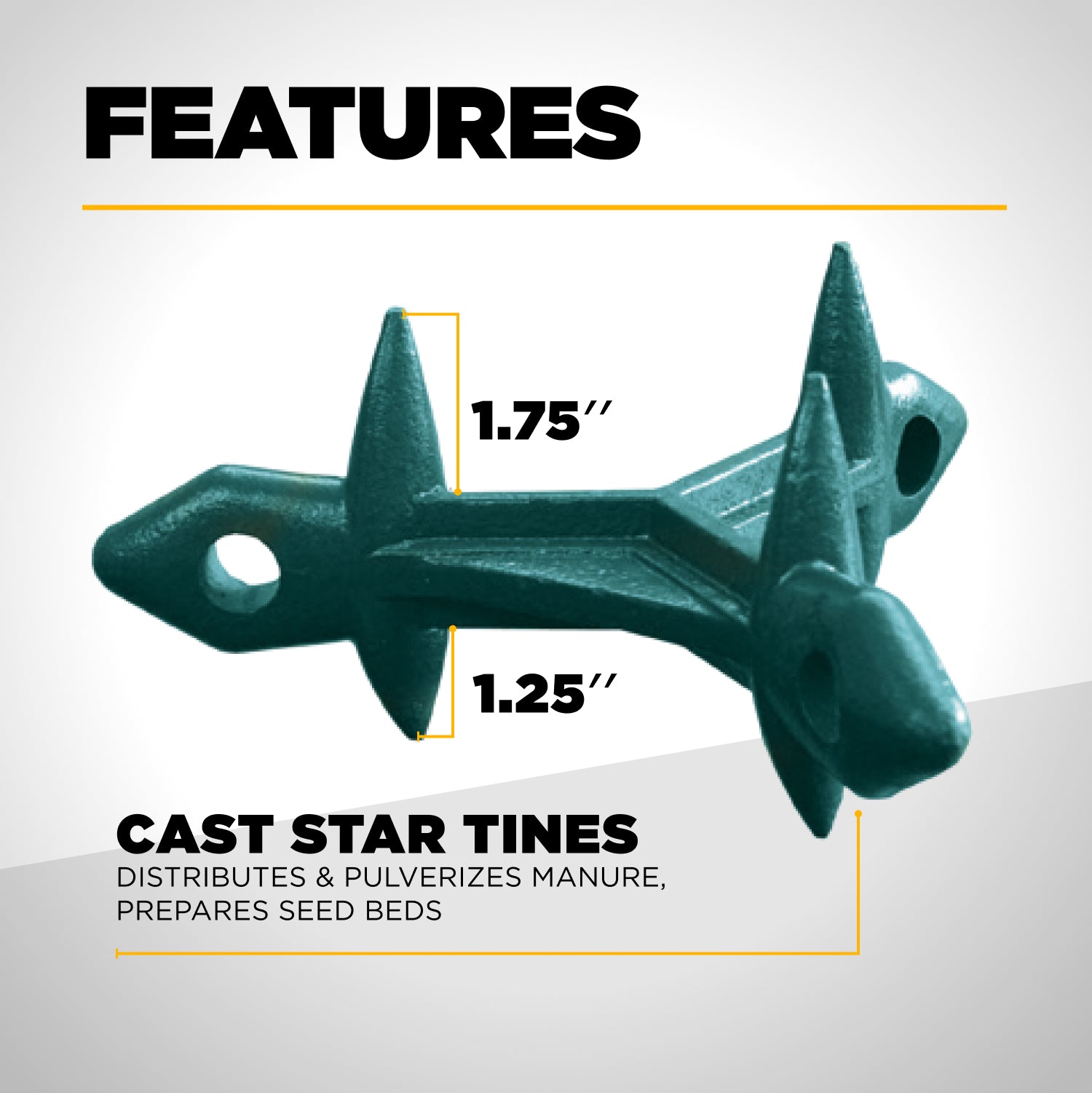

Reversible Cast Star Tines

Cast star tines tumble and bite to tear apart manure, thatch, and clods, and are reversible for aggressive or fine action depending on orientation.

Heavy-Duty, Extra-Heavy Construction

A heavy-duty pipe frame with extra-heavy construction is built for long life under demanding pasture work.

Drag Poles Included

Included drag poles, finished in green, provide controlled towing and even harrow action across the full width of the mat.

Built for Pasture Renovation and More

With its versatile 4-way cast star tine design, the BE-PH16FT is suited for:

• Distributing and pulverizing manure across pastures
• Renovating and aerating worn pasture ground
• Leveling mole hills and rough spots
• Preparing seed beds
• Harrowing large acreage behind a tractor, ATV, or UTV

Warranty

The BE-PH16FT is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: 4-Way Pasture Harrow (Dutch Cast Harrow)
• Working Width: 192" (16 ft)
• Working Depth: 66.5"
• Tines: Reversible Cast Star
• Frame: Heavy-Duty Pipe, Extra-Heavy Construction
• Poles: Drag Poles Included (Green)
• Weight: 693 lbs
• SKU: BE-PH16FT
• Brand: Braber Equipment

Note: Harrowing results vary with soil type, moisture, and towing speed. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Renovate the Pasture — Built by Braber

The Braber BE-PH16FT combines a 192" working width, reversible cast star tines, and heavy-duty extra-heavy construction into one versatile 4-way pasture harrow. For distributing manure, preparing seed beds, leveling mole hills, and renovating pastures, the BE-PH16FT covers large acreage fast.

BE-PH16FT — 16' 4-Way Pasture Harrow with Reversible Cast Star Tines and 192" Working Width.
