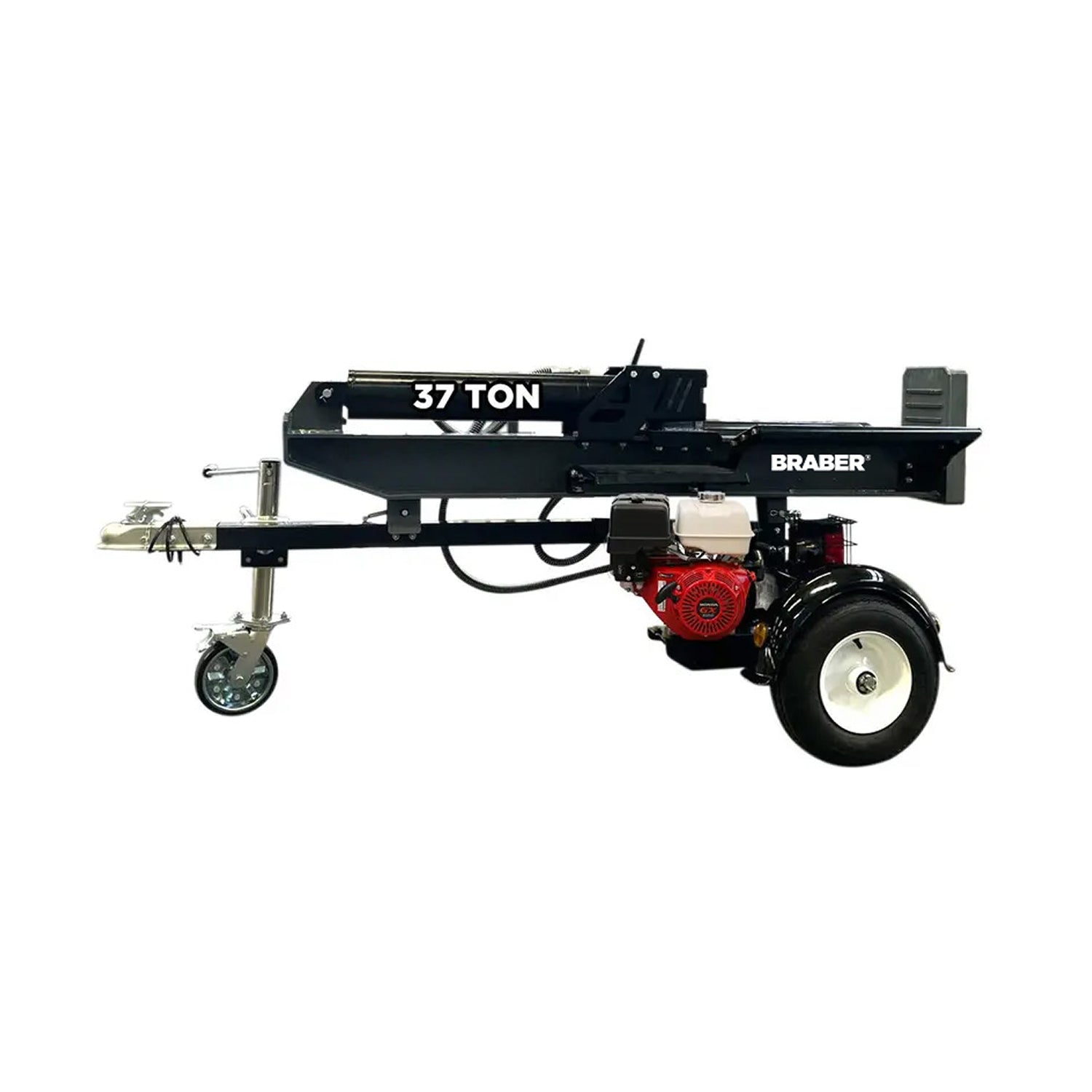

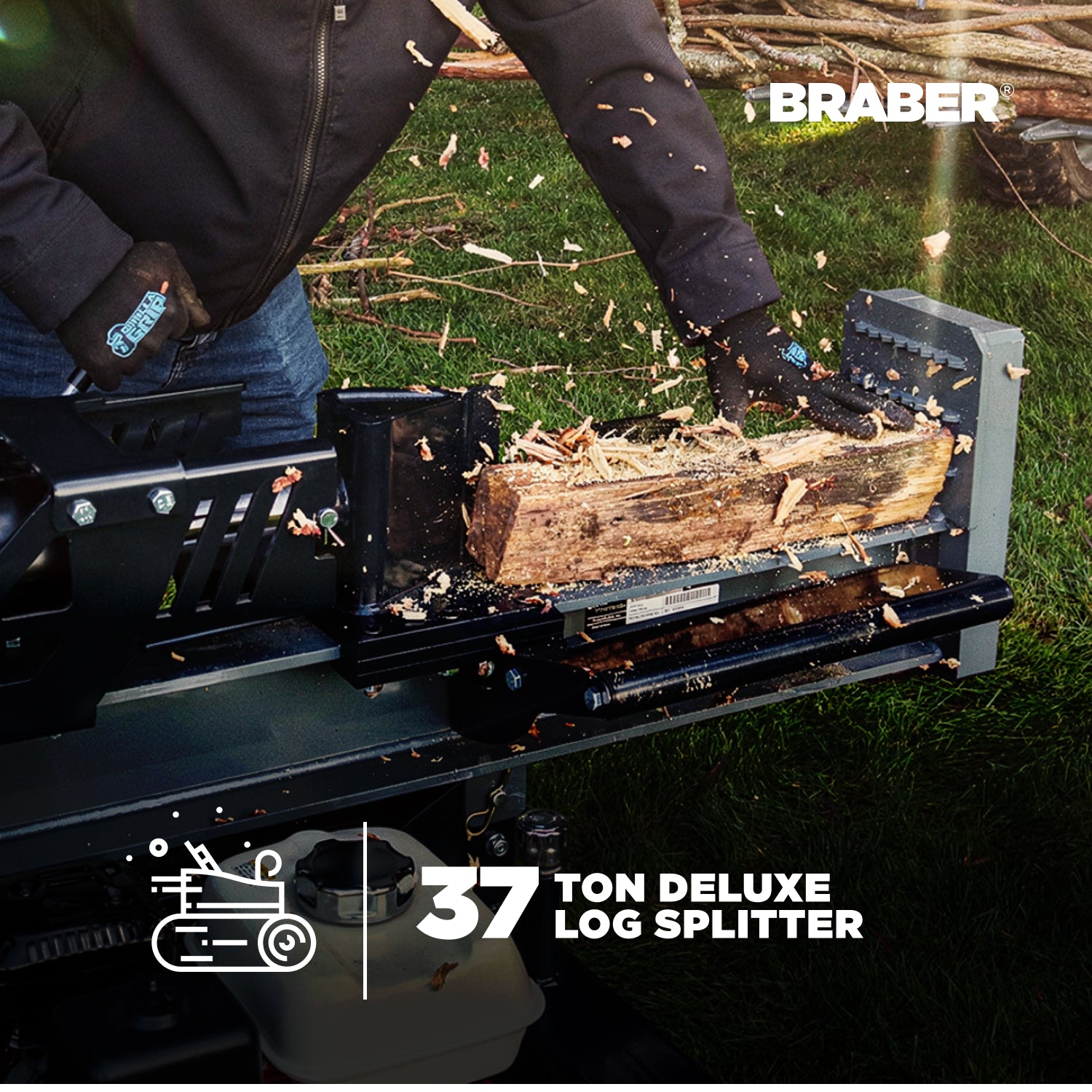

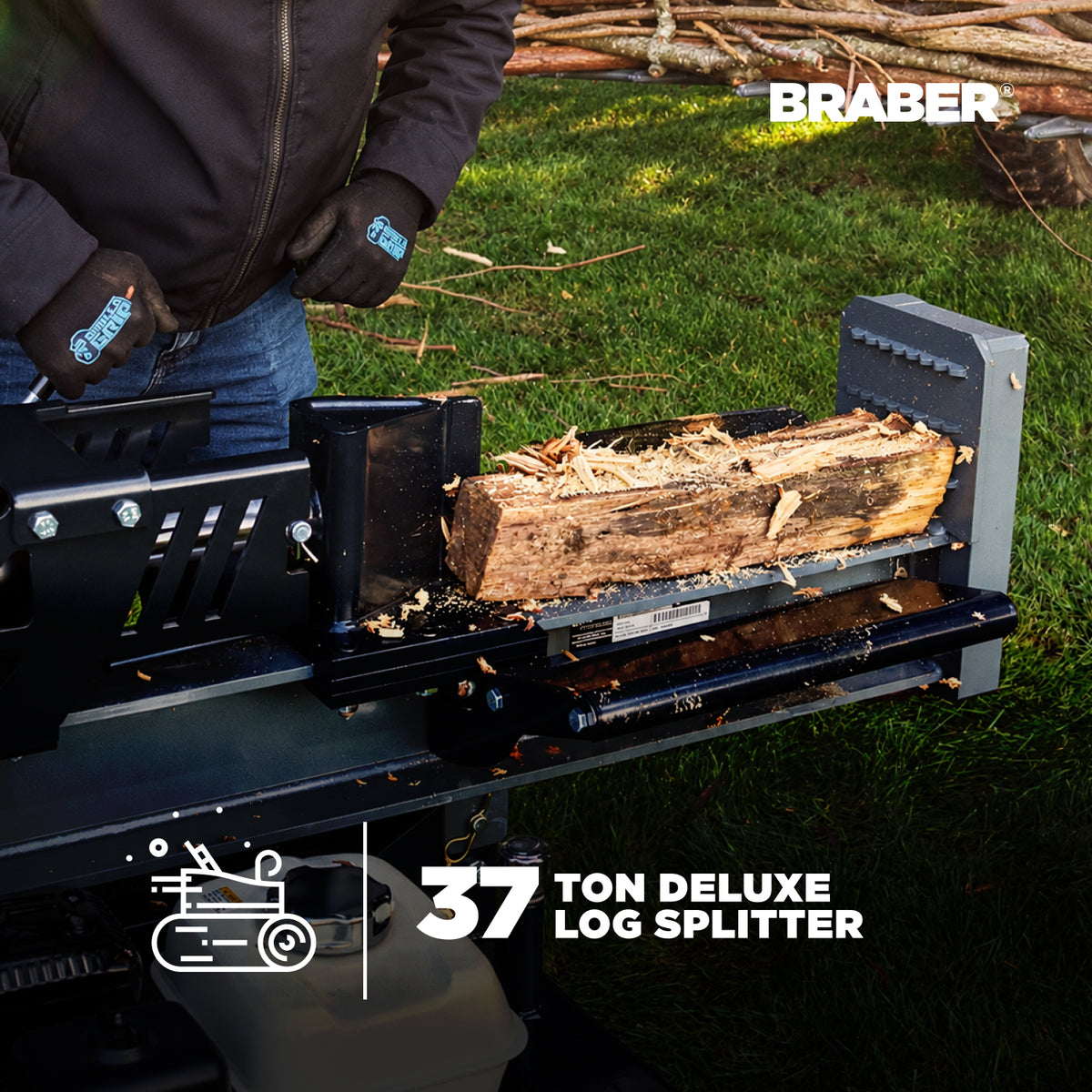

37 Ton Deluxe Towable Gas Log Splitter with Honda GX390 Engine and 16 GPM Two-Stage Hydraulic Pump

When the wood gets big, knotty, and stubborn, the Braber BE-LS37DH brings the muscle to break it down. This deluxe commercial-grade log splitter pairs a Honda GX390 389cc engine with a 16 GPM two-stage Hi-Lo hydraulic pump to deliver a massive 37 tons of splitting force — enough to power through dense hardwood rounds, twisted grain, and seasoned logs that smaller splitters stall on.

Built on full beam construction with an over-top engineered log dislodger, 3-position control with automatic ram return, and a DOT-rated towing package, the BE-LS37DH is designed for firewood producers, homesteaders, and forestry operators who need to move fast and split all day.

37 Tons of Splitting Force, Built for Speed

The real advantage of the BE-LS37DH is the combination of raw force and quick turnaround. The 16 GPM two-stage Hi-Lo pump automatically shifts between high flow for fast travel and high pressure when the wedge meets resistance, producing a 11-second forward cycle and a 9.5-second reverse cycle. That fast cycling keeps production moving log after log, minimizing downtime between splits.

The 3-position control with automatic ram return lets the operator advance, hold, or retract the ram — and the auto-return frees up a hand so you can load the next round while the cylinder resets. It's a workflow built for volume.

Features

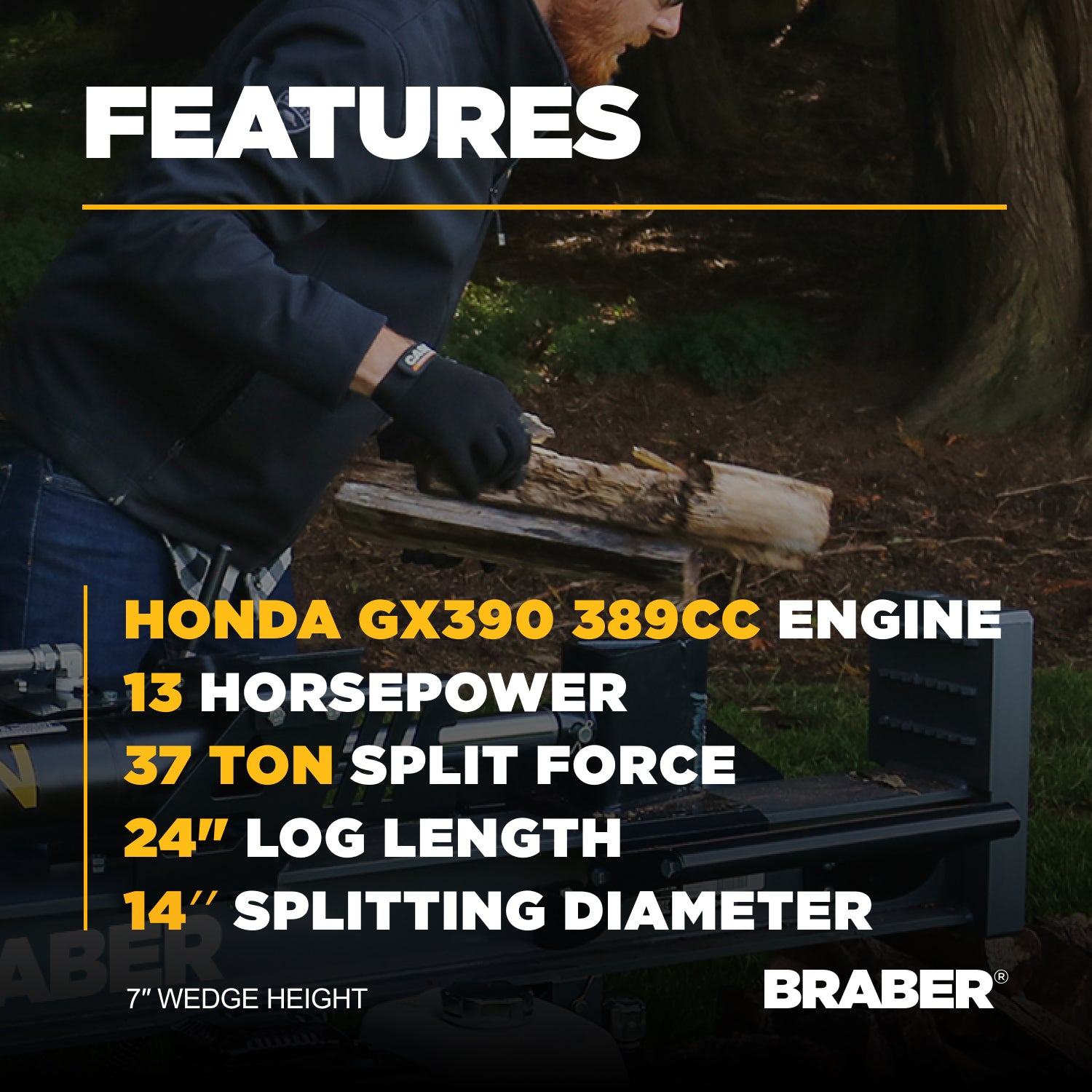

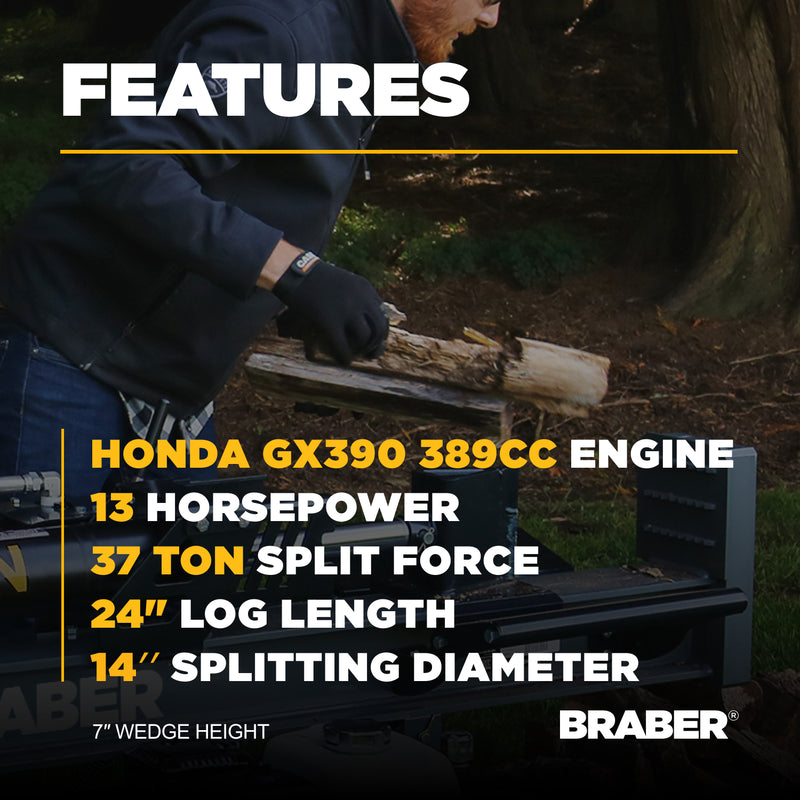

Honda GX390 Engine — 389cc, 13 HP

At the heart of the BE-LS37DH is the Honda GX390 389cc OHV engine, delivering 13 HP of reliable commercial-grade power. The Honda GX series is an industry standard for towable equipment, known for easy starting, fuel efficiency, and long service life. Key engine features include:

• 389cc OHV design for strong torque and fuel-efficient operation
• Honda commercial reliability trusted across professional equipment
• Drives the two-stage hydraulic pump for sustained high-force splitting

The Honda GX390 engine is covered under Honda's separate engine warranty program.

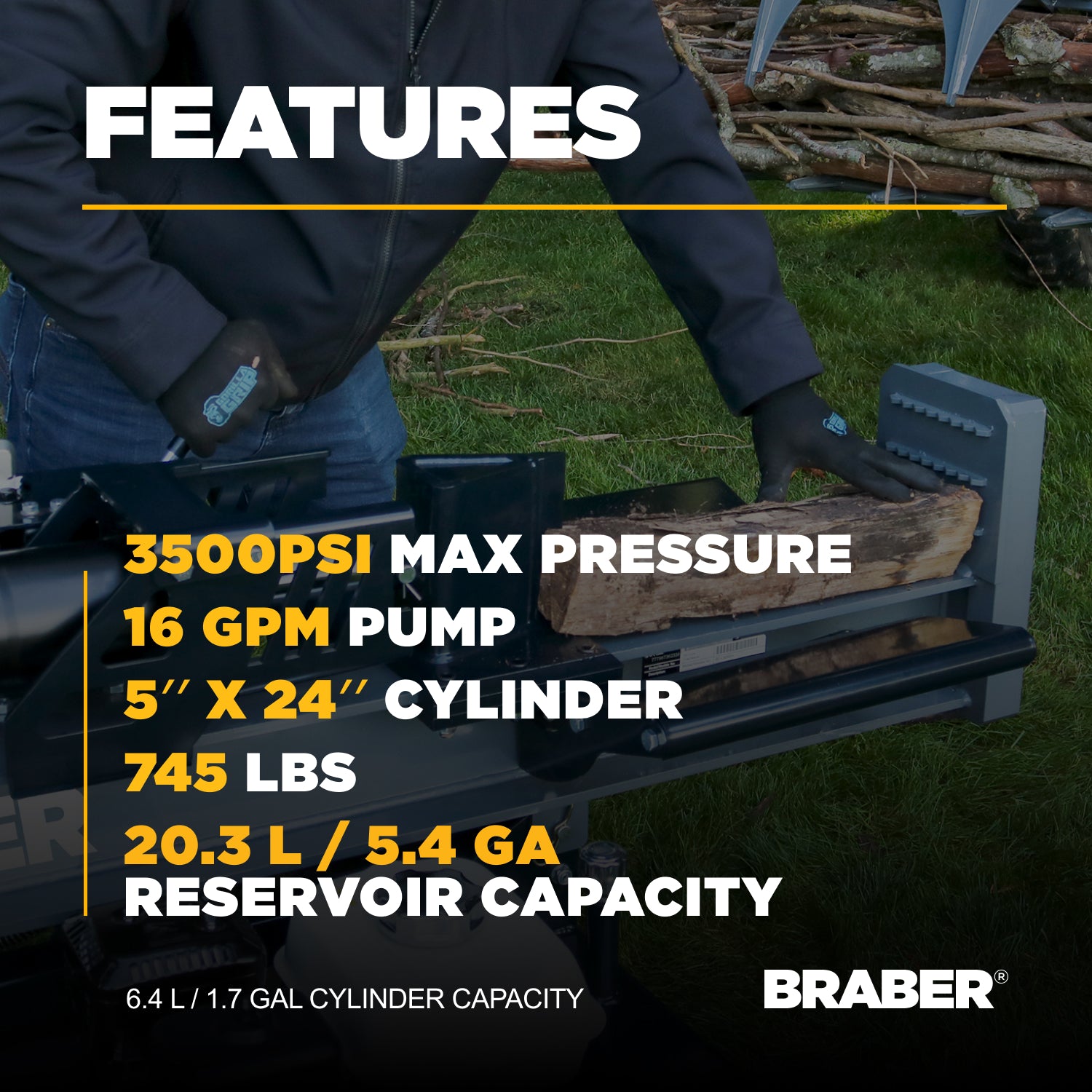

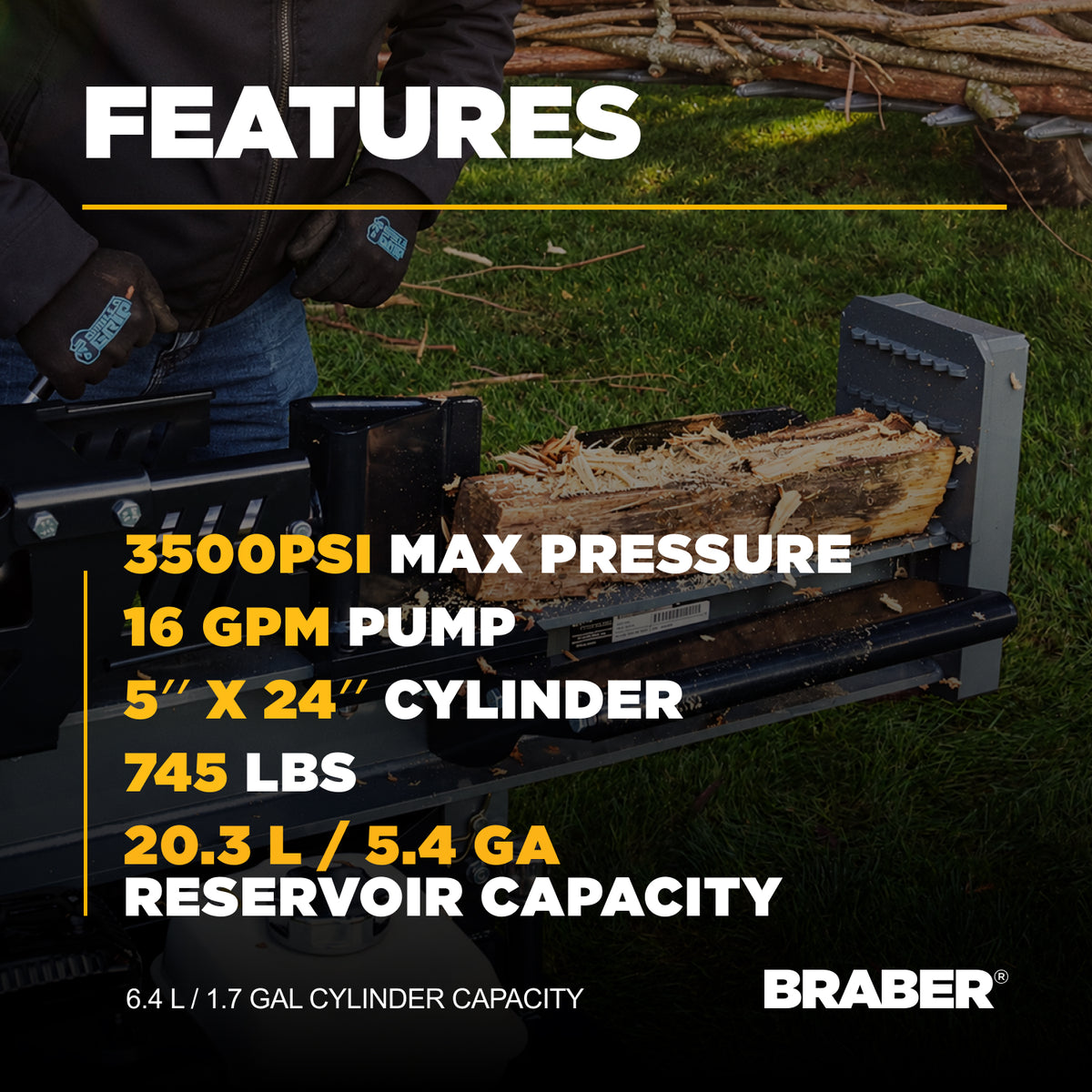

16 GPM Two-Stage Hi-Lo Hydraulic Pump

The BE-LS37DH runs a 16 GPM two-stage Hi-Lo hydraulic pump that delivers both speed and power from a single system. Key hydraulic features include:

• High-flow stage for rapid ram travel and short cycle times
• High-pressure stage that engages automatically when the wedge meets resistance
• Optimized pressure and flow for consistent 37-ton output
• Fast 11-second forward and 9.5-second reverse cycle times

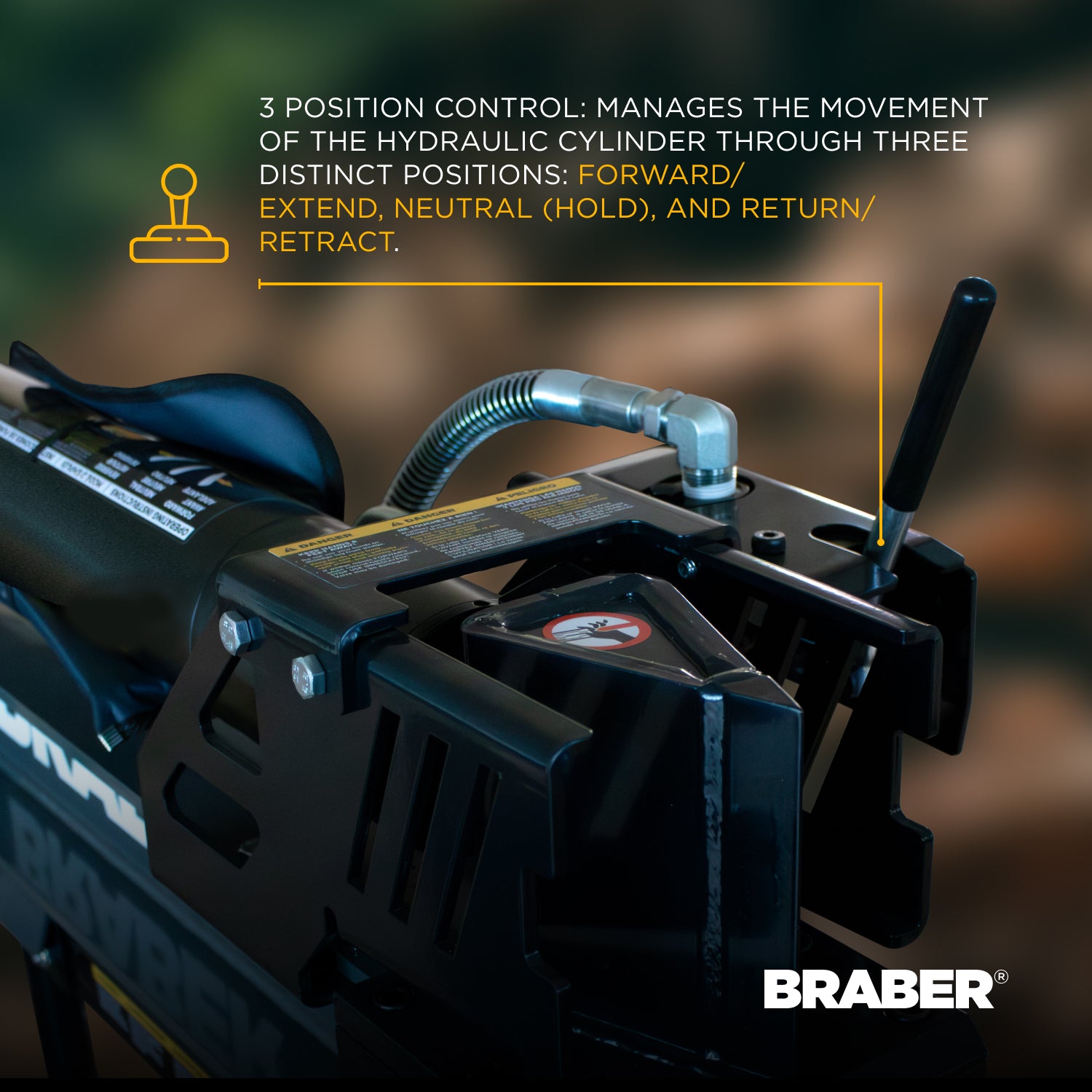

3-Position Control with Automatic Ram Return

The 3-position control valve gives the operator precise command over the ram, with an automatic ram return that retracts the cylinder hands-free at the end of each stroke. This lets you stage the next log while the splitter resets, keeping a steady rhythm through high-volume work.

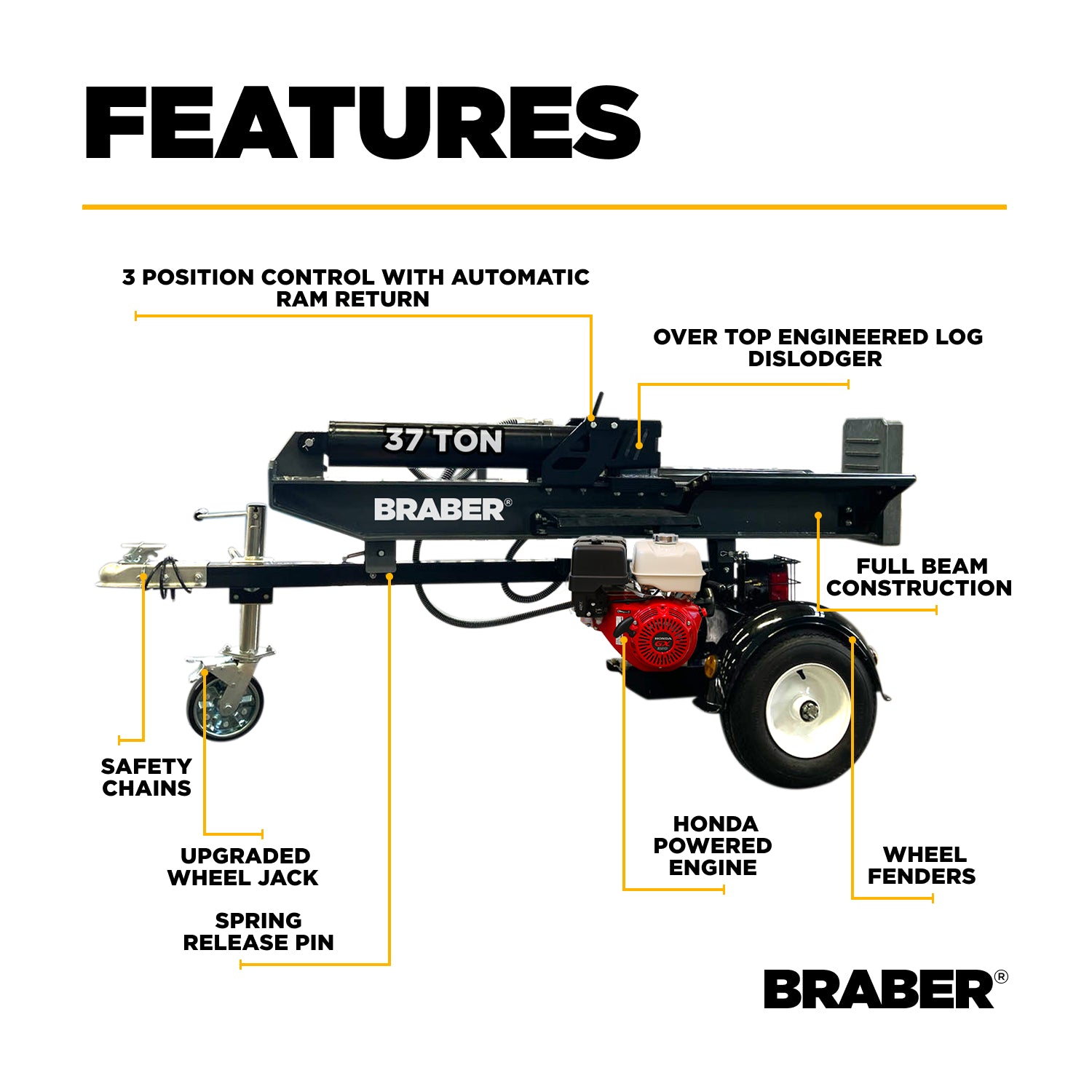

Full Beam Construction with Over-Top Log Dislodger

The BE-LS37DH is built on heavy-duty full beam construction for structural rigidity under repeated high-force loads. An over-top engineered log dislodger strips stuck and partially split logs off the wedge automatically, eliminating the need to wrestle stubborn rounds free by hand.

Road-Ready DOT Towing Package

The BE-LS37DH is built to be towed legally and safely to the job site or woodlot. Key towing features include:

• DOT-rated tires rated for towing speeds up to 72 km/h (45 mph)

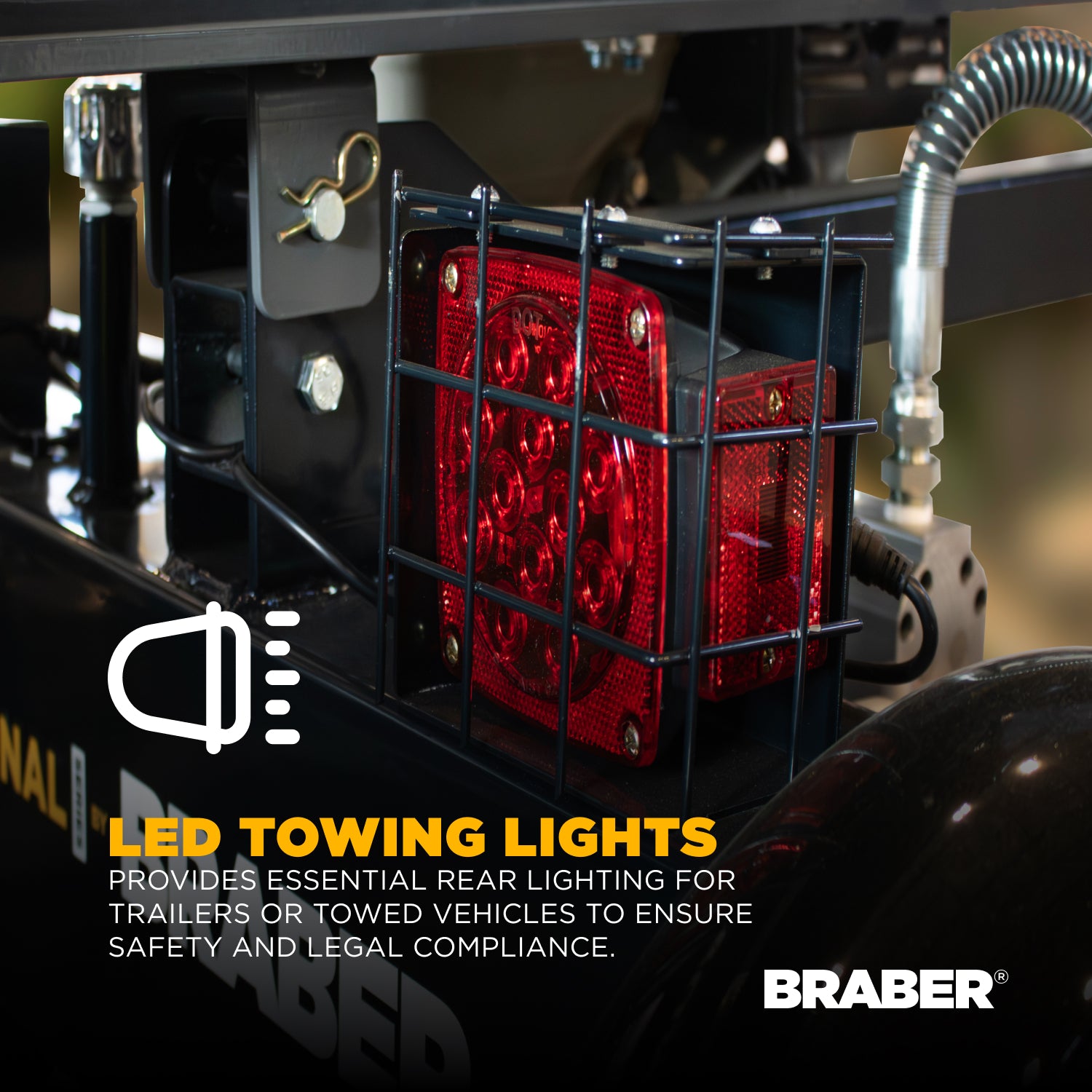

• LED towing lights for road-legal visibility
• Wheel fenders to control debris and road spray
• Heavy-duty tapered wheel bearings for durable, high-speed travel
• Upgraded wheel jack for easier positioning and hitching

Safety and Securing Features

Transport-ready safety hardware comes standard:

• Safety chains for a secure connection to the tow vehicle
• Spring release pin for fast, secure setup and transport

Generous Log Capacity

The BE-LS37DH handles logs up to 24" in length and 14" in diameter, covering the vast majority of firewood and forestry rounds in a single pass.

Built for Demanding Splitting Applications

With 37 tons of force and fast cycle times, the BE-LS37DH is suited for:

• Commercial firewood production and resale operations
• Home heating — processing a season's supply of seasoned hardwood
• Forestry and woodlot management
• Land clearing and property maintenance
• Farm and homestead wood processing

Warranty

The Honda GX390 engine is covered under Honda's separate manufacturer engine warranty program. The BE-LS37DH is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Split Force: 37 Tons
• Engine: Honda GX390 389cc OHV, 13 HP
• Cycle Time: 11 sec forward / 9.5 sec reverse
• Hydraulic Pump: 16 GPM Two-Stage Hi-Lo
• Control: 3-Position Control with Automatic Ram Return
• Log Capacity: Up to 24" Length / 14" Diameter
• Frame: Full Beam Construction
• Log Dislodger: Over-Top Engineered
• Tires: DOT-Rated, Max Towing Speed 72 km/h / 45 mph
• Wheel Bearings: Heavy-Duty Tapered
• Towing Lights: LED
• Fenders: Wheel Fenders Included
• Wheel Jack: Upgraded
• Securing Hardware: Safety Chains, Spring Release Pin
• Series: Deluxe / Commercial
• SKU: BE-LS37DH
• Brand: Braber Equipment

Note: Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Commercial Splitting Power — Built by Braber

The Braber BE-LS37DH combines a Honda GX390 engine, a 16 GPM two-stage Hi-Lo hydraulic pump, full beam construction with an over-top log dislodger, and a road-ready DOT towing package into one capable 37-ton splitting machine. For anyone processing serious volumes of wood, the BE-LS37DH is built to keep up.

BE-LS37DH — 37 Ton Deluxe Towable Gas Log Splitter with Honda GX390 Engine and 16 GPM Two-Stage Hydraulic Pump.
