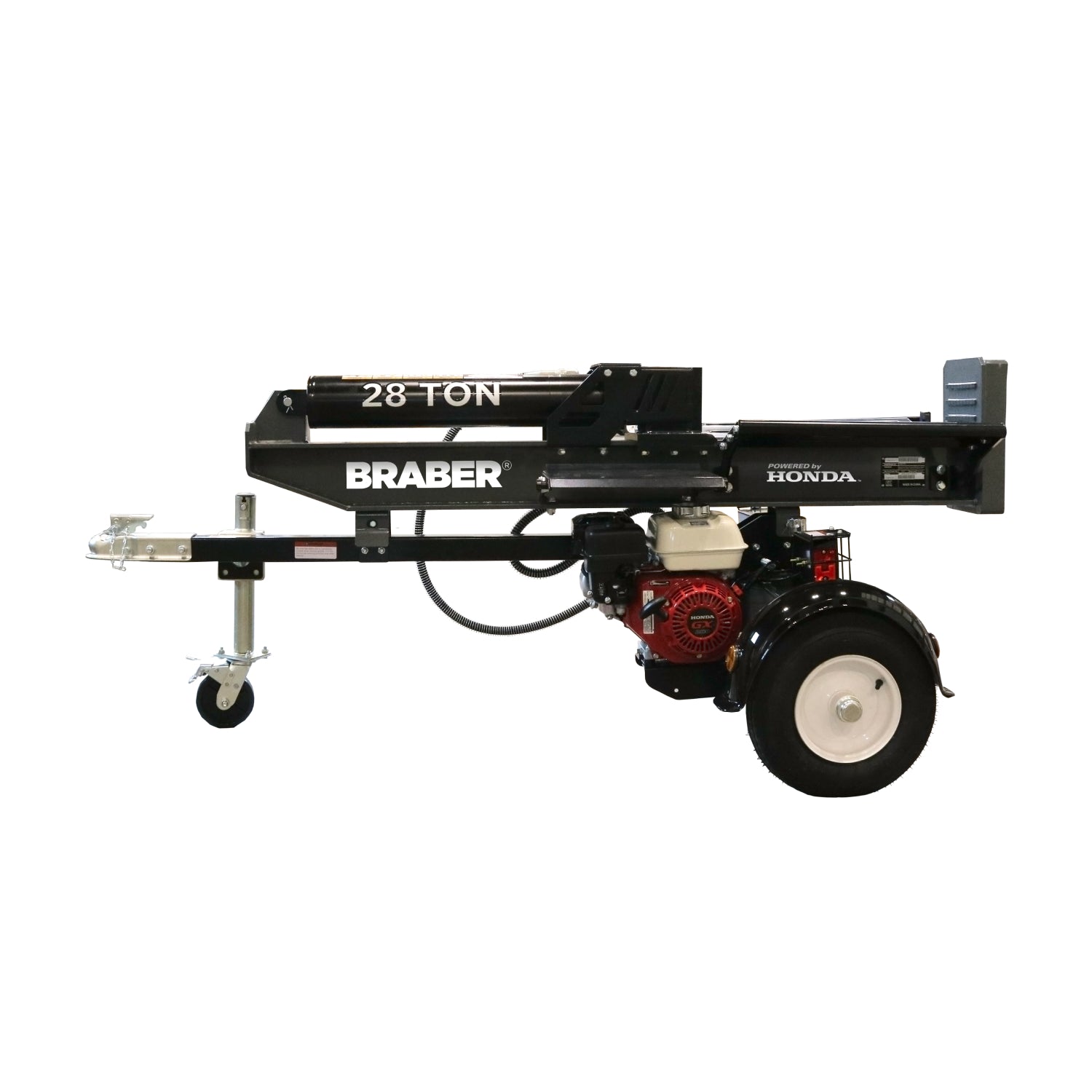

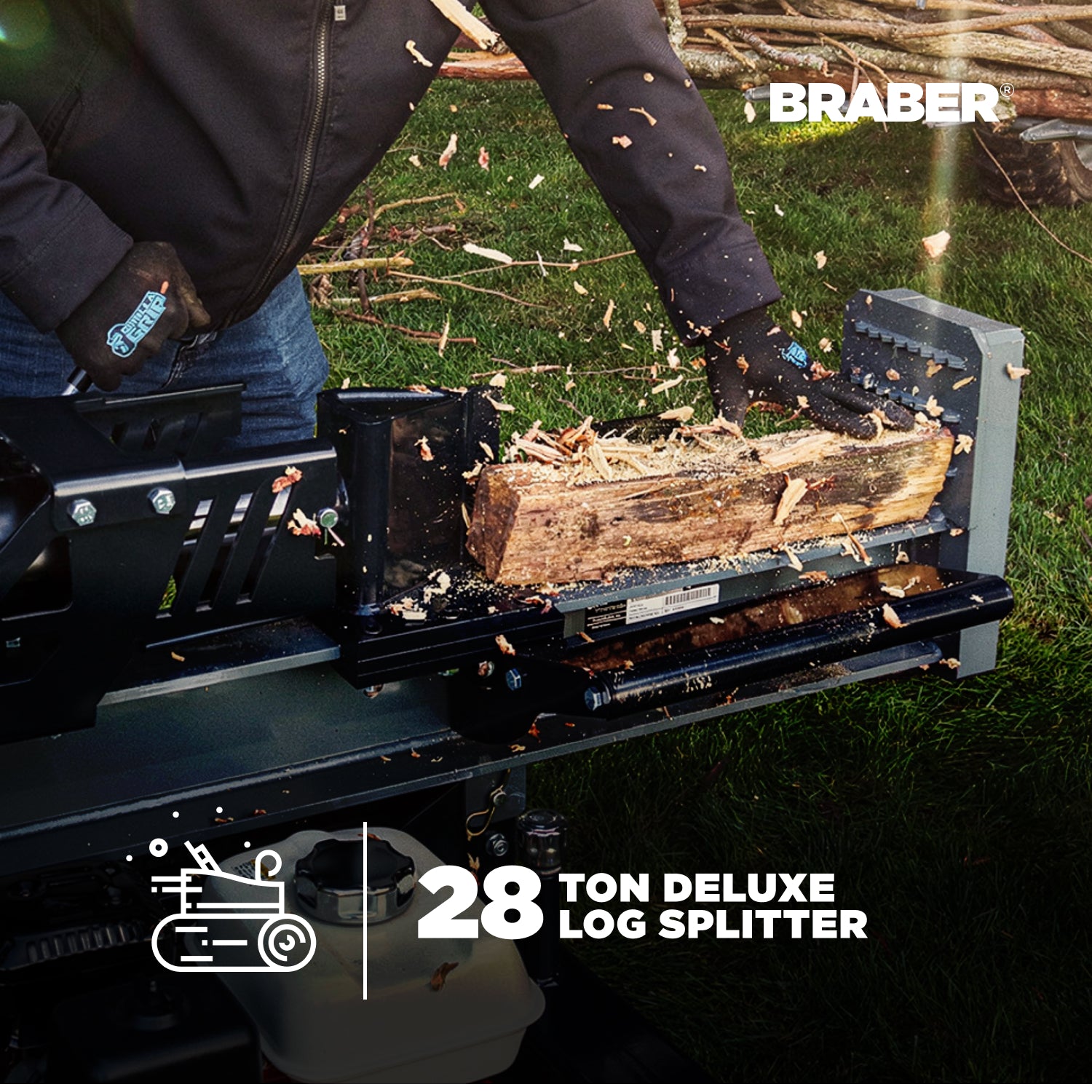

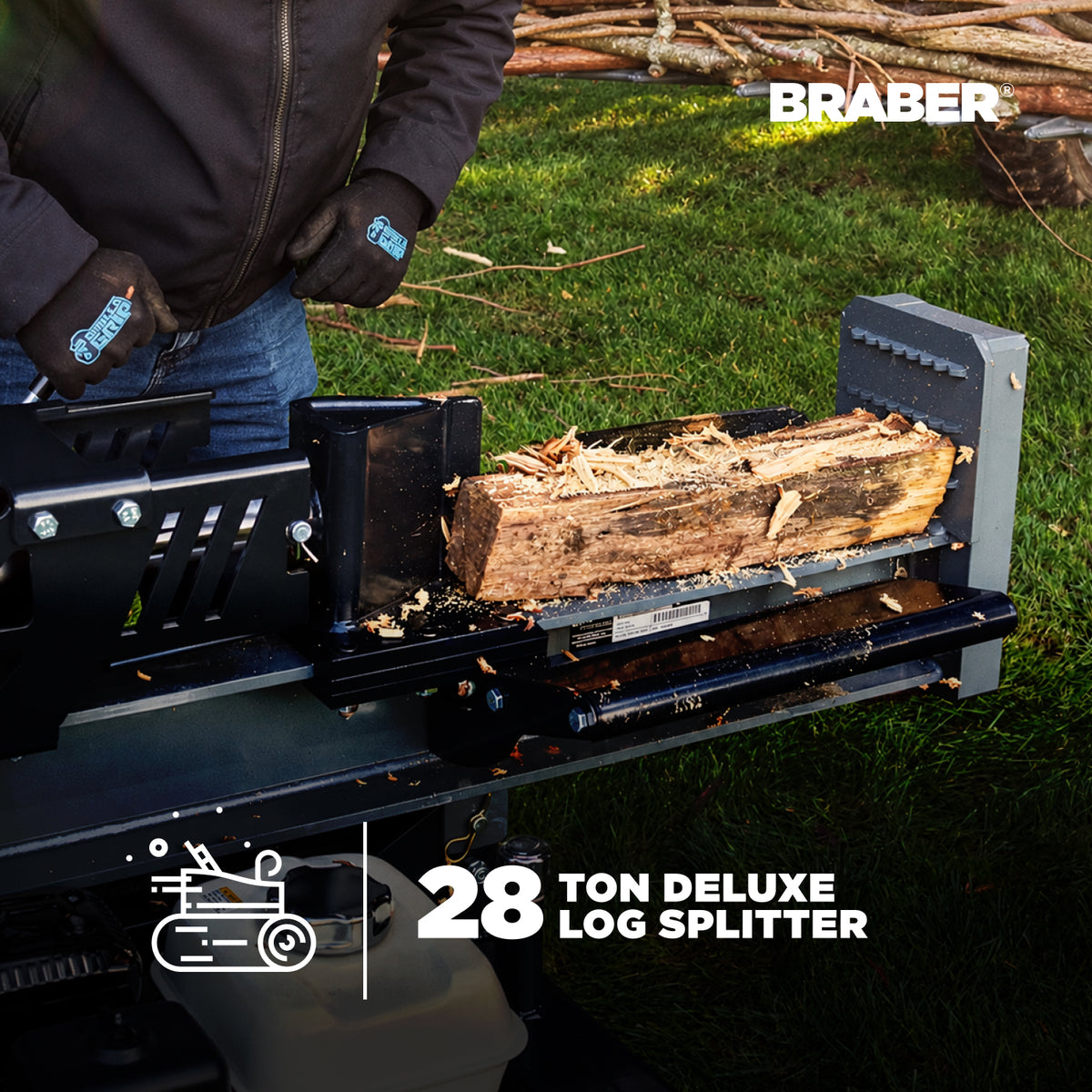

28 Ton Deluxe Towable Gas Log Splitter with Honda GX200 Engine and 13 GPM Two-Stage Hydraulic Pump

The Braber BE-LS28DH delivers serious splitting power in a manageable, road-ready package. Pairing a dependable Honda GX200 196cc engine with a 13 GPM two-stage Hi-Lo hydraulic pump, this deluxe log splitter generates 28 tons of splitting force — enough to work through seasoned hardwood, knotty rounds, and the kind of stubborn logs that stop lighter machines.

Built on full beam construction with an over-top engineered log dislodger, 3-position control with automatic ram return, and a DOT-rated towing package, the BE-LS28DH is a practical workhorse for firewood producers, homesteaders, and property owners who split wood by the cord.

28 Tons of Force, Fast Cycle Times

The BE-LS28DH balances strong force with quick turnaround. The 13 GPM two-stage Hi-Lo pump automatically shifts between high flow for fast ram travel and high pressure when the wedge meets resistance — generating up to 3,400 PSI through a 4.5" x 24" cylinder. The result is an 11-second forward cycle and a 9.5-second reverse cycle, keeping production moving log after log.

The 3-position control with automatic ram return lets the operator advance, hold, or retract the ram, with the auto-return freeing up a hand to load the next round while the cylinder resets.

Features

Honda GX200 Engine — 196cc, 6.5 HP

Power comes from the Honda GX200 196cc OHV engine, rated at 6.5 HP. The Honda GX series is the benchmark for towable outdoor power equipment, prized for easy starting, fuel efficiency, and a long service life. Key engine features include:

• 196cc OHV design for reliable torque and efficient fuel use
• Honda commercial reliability trusted across professional equipment
• Drives the two-stage hydraulic pump for sustained splitting force

The Honda GX200 engine is covered under Honda's separate engine warranty program.

13 GPM Two-Stage Hi-Lo Hydraulic Pump

The BE-LS28DH runs a 13 GPM two-stage Hi-Lo hydraulic pump that delivers both speed and power from one system. Key hydraulic features include:

• High-flow stage for rapid ram travel and short cycle times
• High-pressure stage that engages automatically when the wedge meets resistance
• Up to 3,400 PSI maximum operating pressure
• 4.5" x 24" cylinder for consistent 28-ton output
• Fast 11-second forward and 9.5-second reverse cycle times

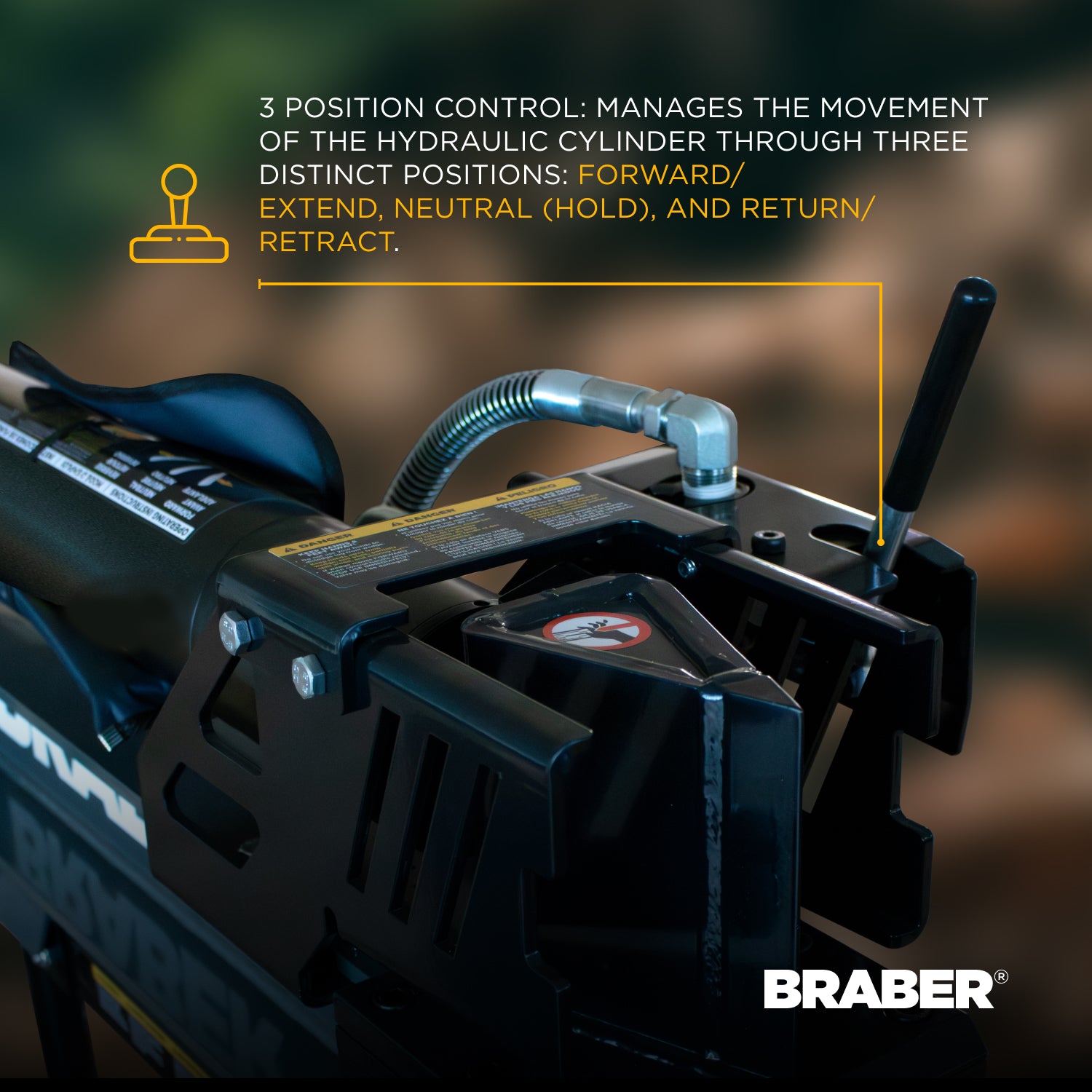

3-Position Control with Automatic Ram Return

The 3-position control valve gives the operator precise command over the ram, with an automatic ram return that retracts the cylinder hands-free at the end of each stroke. This lets you stage the next log while the splitter resets, keeping a steady rhythm through high-volume work.

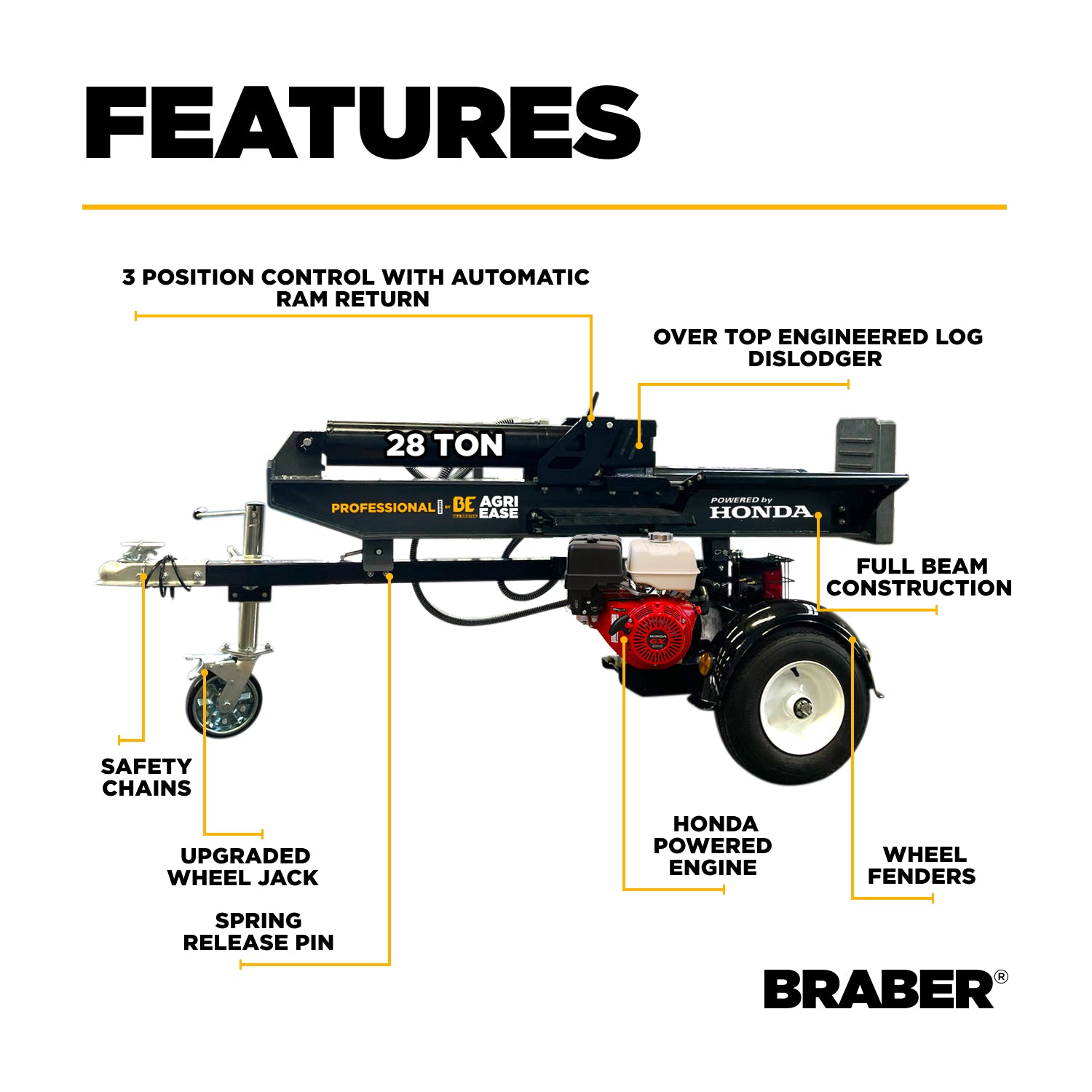

Full Beam Construction with Over-Top Log Dislodger

The BE-LS28DH is built on heavy-duty full beam construction for structural rigidity under repeated high-force loads. An over-top engineered log dislodger strips stuck and partially split logs off the wedge automatically, eliminating the need to wrestle stubborn rounds free by hand.

Road-Ready DOT Towing Package

The BE-LS28DH is built to be towed legally and safely to the job site or woodlot. Key towing features include:

• DOT-rated tires rated for towing speeds up to 72 km/h (45 mph)
• LED towing lights for road-legal visibility
• Wheel fenders to control debris and road spray
• Heavy-duty tapered wheel bearings for durable, high-speed travel
• Upgraded wheel jack for easier positioning and hitching
• 2" ball coupler for a standard, secure hitch connection

Safety and Securing Features

Transport-ready safety hardware comes standard:

• Safety chains for a secure connection to the tow vehicle
• Spring release pin for fast, secure setup and transport

Generous Log Capacity

The BE-LS28DH handles logs up to 24" in length and 14" in diameter, with a 7" wedge height for clean, efficient splits across the vast majority of firewood rounds.

Built for Demanding Splitting Applications

With 28 tons of force and fast cycle times, the BE-LS28DH is suited for:

• Commercial firewood production and resale operations
• Home heating — processing a season's supply of seasoned hardwood
• Forestry and woodlot management
• Land clearing and property maintenance
• Farm and homestead wood processing

Warranty

The Honda GX200 engine is covered under Honda's separate manufacturer engine warranty program. The BE-LS28DH is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

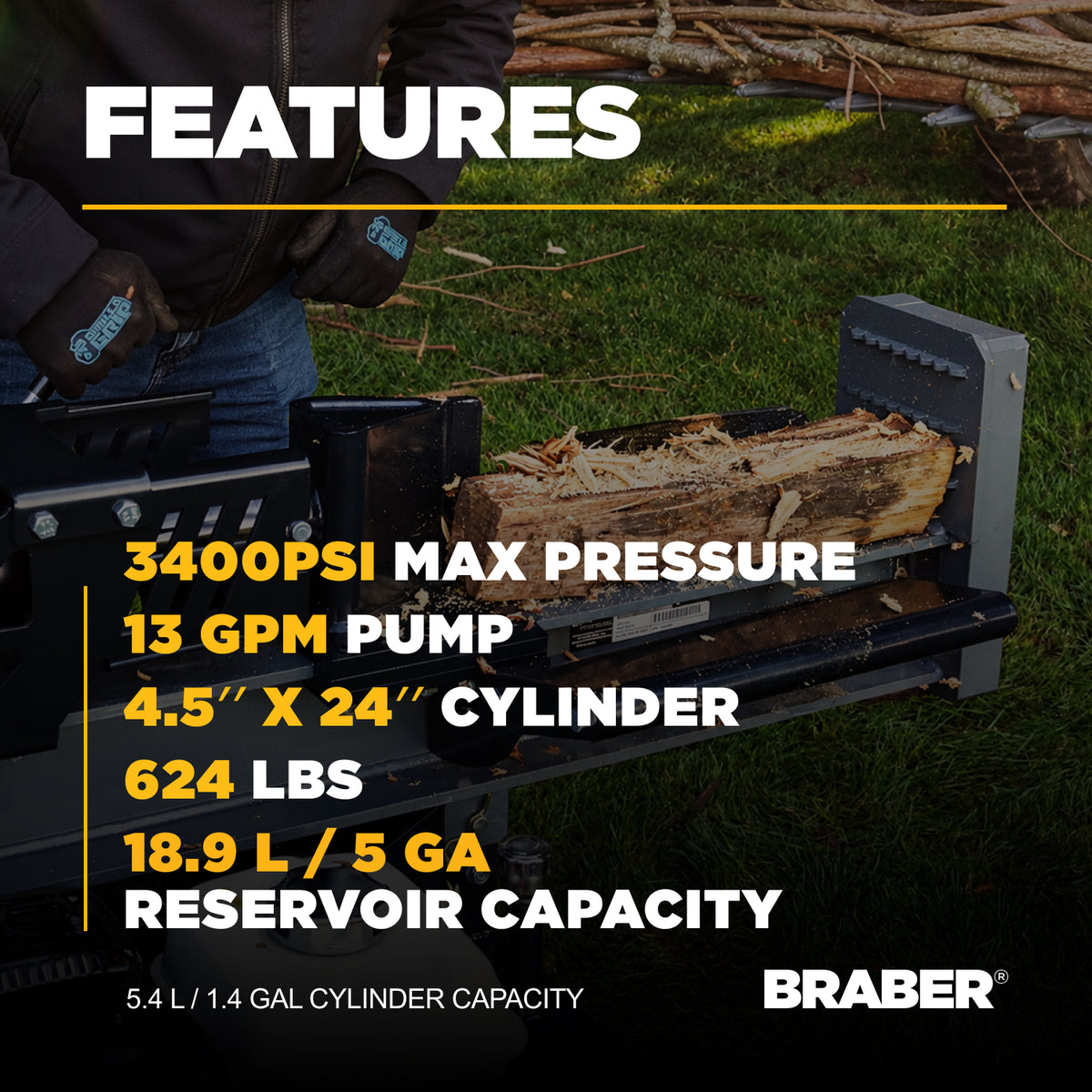

Product Specifications

• Split Force: 28 Tons
• Engine: Honda GX200 196cc OHV, 6.5 HP
• Cycle Time: 11 sec forward / 9.5 sec reverse
• Hydraulic Pump: 13 GPM Two-Stage Hi-Lo
• Max Pressure: 3,400 PSI
• Cylinder: 4.5" x 24"
• Cylinder Capacity: 5.4 L / 1.4 GAL
• Reservoir Capacity: 18.9 L / 5 GAL
• Control: 3-Position Control with Automatic Ram Return
• Log Capacity: Up to 24" Length / 14" Diameter
• Wedge Height: 7"
• Frame: Full Beam Construction
• Log Dislodger: Over-Top Engineered
• Tires: DOT-Rated, Max Towing Speed 72 km/h / 45 mph
• Wheel Bearings: Heavy-Duty Tapered
• Towing Lights: LED
• Fenders: Wheel Fenders Included
• Wheel Jack: Upgraded
• Ball Coupler: 2"
• Securing Hardware: Safety Chains, Spring Release Pin
• Series: Deluxe / Commercial
• SKU: BE-LS28DH
• Brand: Braber Equipment

Note: Splitting diameter varies with the type of wood and environmental conditions. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Commercial Splitting Power — Built by Braber

The Braber BE-LS28DH combines a Honda GX200 engine, a 13 GPM two-stage Hi-Lo hydraulic pump, full beam construction with an over-top log dislodger, and a road-ready DOT towing package into one capable 28-ton splitting machine. For anyone processing serious volumes of wood, the BE-LS28DH is built to keep up.

BE-LS28DH — 28 Ton Deluxe Towable Gas Log Splitter with Honda GX200 Engine and 13 GPM Two-Stage Hydraulic Pump.
