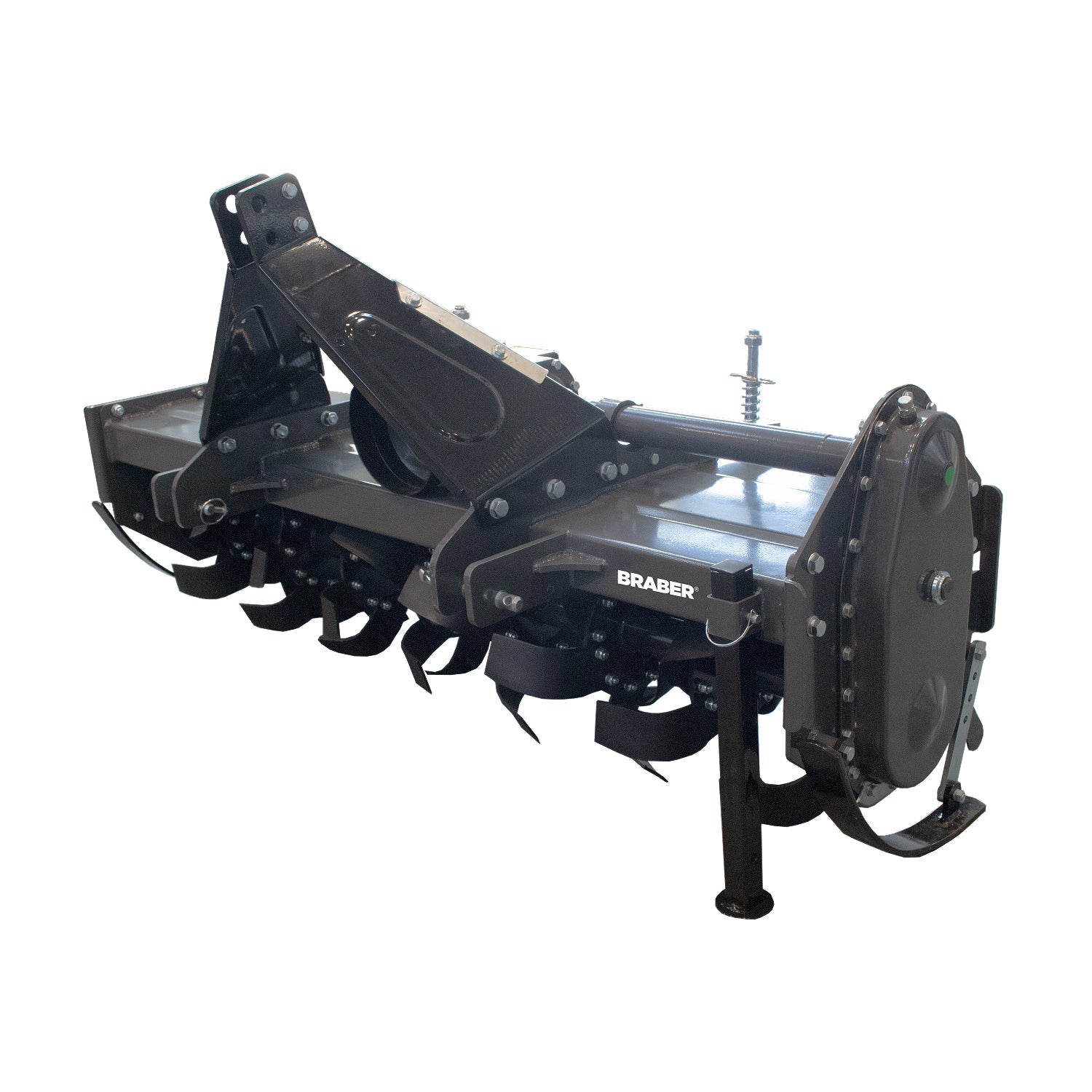

59" IGN Rotary Tiller with Category 1 3-Point Hitch, Gear Drive, and Slip-Clutch PTO

The Braber BE-IGN150 is a heavy-duty PTO-driven rotary tiller that turns and pulverizes a full 59" path in a single pass. Mounting to a Category 1 3-point hitch with a fixed center mount and running off a 540 RPM PTO, it's built for serious tillage across fields, gardens, and plots — optimized for utility tractors in the 30–50 HP range.

At its core is a rugged gear drive system with a single-speed gearbox, protected by a slip-clutch PTO yoke that guards the driveline against shock loads. Turning 36 C-shaped tines — 6 per flange — and weighing a stable 705 lbs, the BE-IGN150 delivers consistent, professional-grade results pass after pass.

Heavy-Duty Full-Width Tilling

The IGN150 is built to work the ground hard. It tills the full 59" width in one pass, drawing on the tractor's power through the PTO so you can cover large areas quickly. The 36 C-shaped tines chop, mix, and pulverize the soil as the rotor spins, producing a fine, even seedbed and thoroughly incorporating residue and amendments. The adjustable skid shoes hold a consistent 4-3/4" tillage depth across the full width, and the heavy 705 lb build keeps the rotor planted for steady ground contact and penetration.

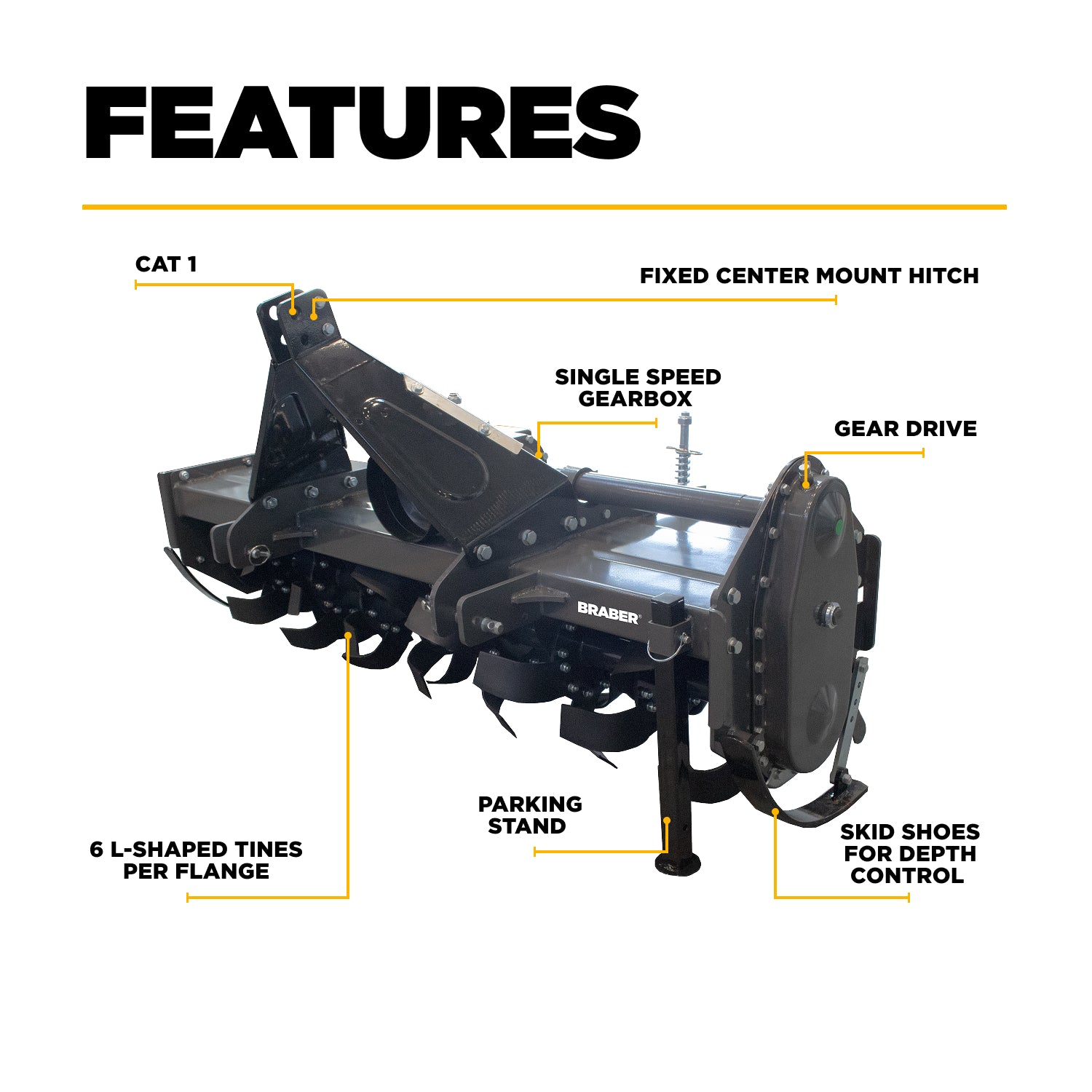

Features

Category 1 3-Point Hitch and 540 PTO Drive

The BE-IGN150 mounts and powers up directly from your tractor:

• Category 1, 3-point hitch with fixed center mount for professional tractor integration
• 540 RPM PTO drive — no separate engine to fuel or maintain
• Optimized for utility tractors in the 30–50 HP range

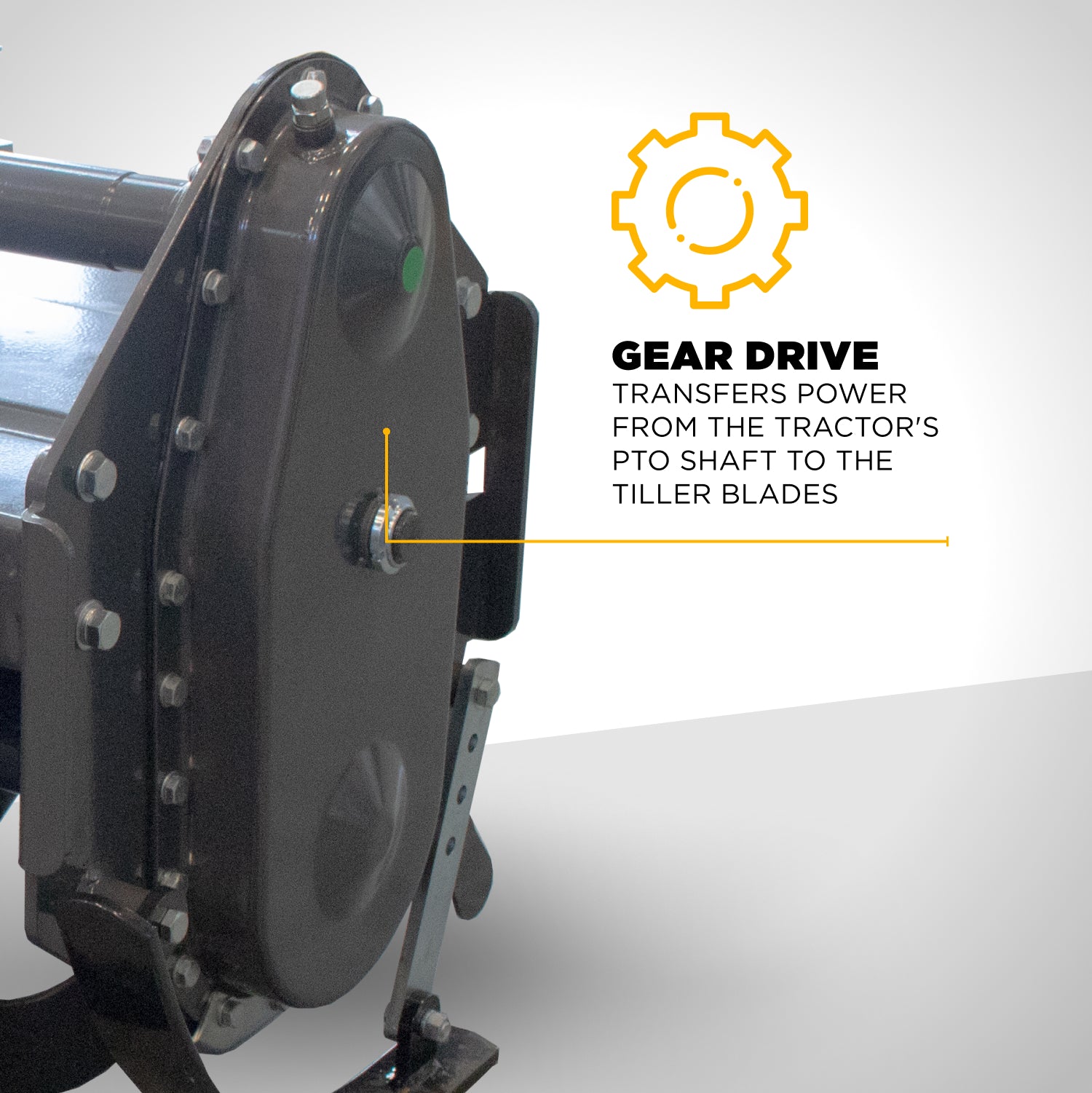

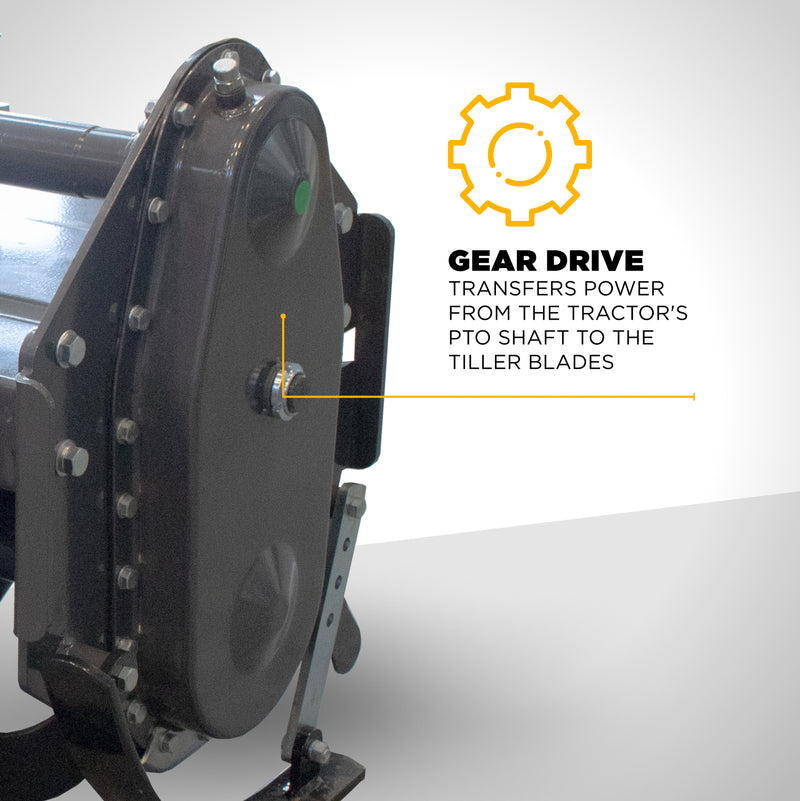

Gear Drive with Single-Speed Gearbox

The BE-IGN150 uses a rugged gear drive system with a single-speed gearbox to transfer power from the PTO to the rotor. Gear drive delivers superior power transfer and longevity compared with chain-driven designs, standing up to the demands of heavy full-width tillage.

Slip-Clutch PTO Yoke Protection

A slip-clutch PTO yoke protects the driveline from shock loads — if the rotor strikes a rock, root, or other obstruction, the clutch slips to absorb the impact rather than transmitting damaging force back through the gearbox and PTO. It's an important safeguard for the tiller and the tractor alike in tough ground.

36 C-Shaped Tines

The rotor carries 36 C-shaped tines — 6 per flange — for thorough, aggressive soil mixing. Key tine features include:

• 36 total blades for superior mixing and pulverizing
• 6 C-shaped tines per flange for consistent coverage across the width
• C-shaped profile well suited to general tilling and seedbed preparation

Adjustable Skid Shoes for Depth Control

The adjustable skid shoes let you set and maintain a consistent 4-3/4" tillage depth, keeping the rotor working evenly across the full width for uniform results.

Parking Stand

The included parking stand keeps the tiller stable and upright when detached, making storage tidy and re-mounting to the tractor quick and easy.

Built for Heavy-Duty Seedbed and Field Preparation

With a 59" tilling path and heavy-duty build, the BE-IGN150 is suited for:

• Preparing seedbeds across fields, gardens, and plots
• Breaking down and pulverizing soil for planting
• Incorporating crop residue, cover crops, and amendments
• Renovating and reworking established ground

Warranty

The BE-IGN150 is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1, 3-Point Hitch, Fixed Center Mount
• Power Requirement: 30–50 HP Tractor
• PTO Speed: 540 RPM
• Driveline Protection: Slip-Clutch PTO Yoke
• Tilling Width: 59"
• Tillage Depth: 4-3/4" (Adjustable via Skid Shoes)
• Drive System: Gear Drive, Single-Speed Gearbox
• Tines: 36 Total C-Shaped Tines (6 per Flange)
• Depth Control: Adjustable Skid Shoes
• Storage: Parking Stand
• Weight: 705 lbs
• SKU: BE-IGN150
• Brand: Braber Equipment

Note: Tillage depth and performance vary with soil type, moisture, and condition, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Heavy-Duty Full-Width Tilling — Built by Braber

The Braber BE-IGN150 combines a Category 1 3-point hitch, 540 PTO drive, a rugged gear drive with single-speed gearbox, slip-clutch driveline protection, and 36 C-shaped tines into one capable 59" rotary tiller. For utility tractor owners preparing seedbeds across fields and plots, the BE-IGN150 turns and pulverizes the soil in a single full-width pass.

BE-IGN150 — 59" IGN Rotary Tiller with Category 1 3-Point Hitch, Gear Drive, and Slip-Clutch PTO.
