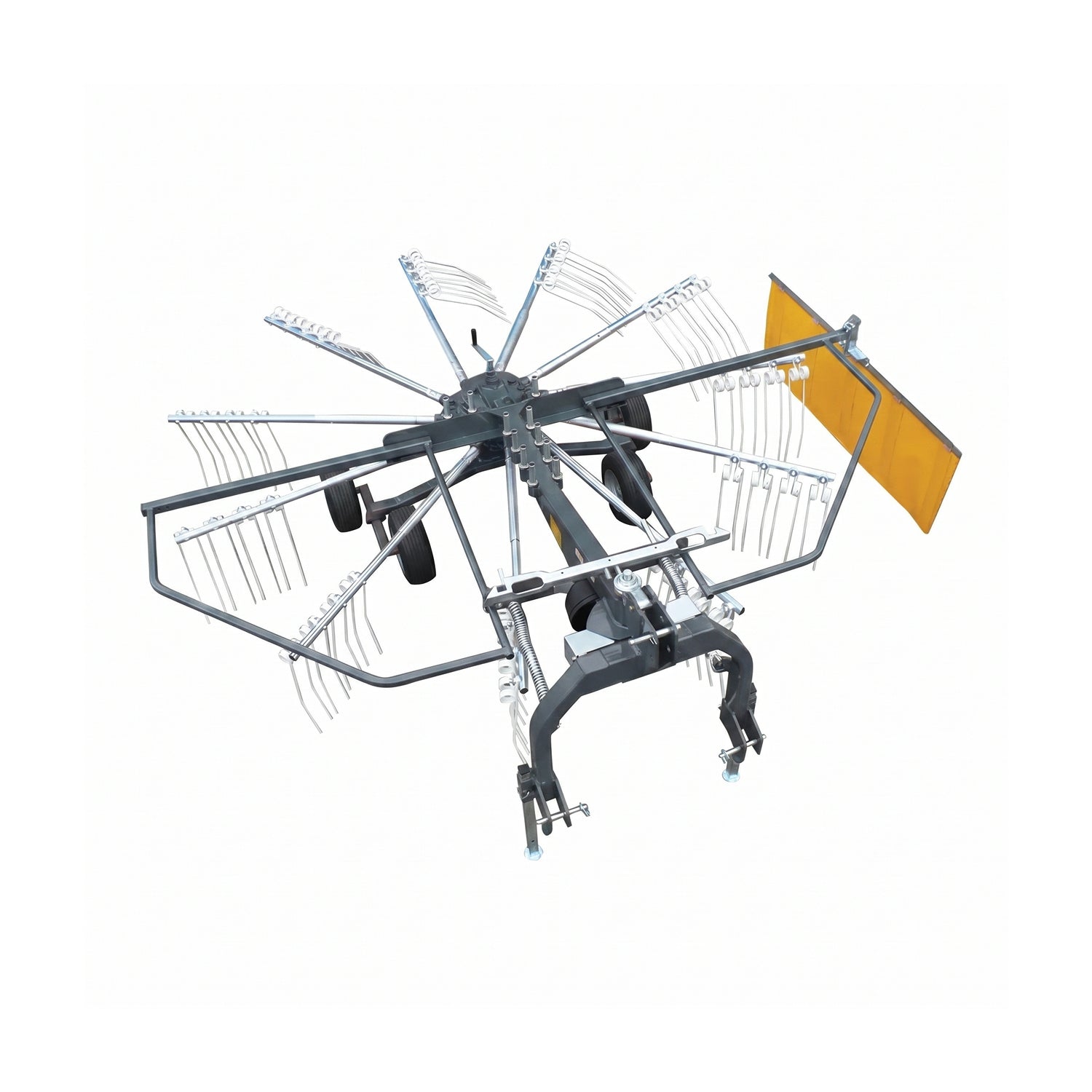

162" Tandem Rotary Rake with Category 1 & 2 3-Point Hitch — 11 Arms, Tandem Wheels

The Braber BE-GR330DRTM is a tandem rotary rake built to gather cut hay into clean, consistent windrows for efficient baling. Mounting to a Category 1 & 2 3-point hitch and driven by a 540 RPM PTO, its 132" working width with 11 arms and 4 double tines per arm sweeps a wide path in a single pass — and its tandem wheels follow the ground closely for clean, thorough raking.

Matched to tractors up to 40 HP and built on a heavy-duty frame with steel guards and an adjustable swath curtain, the BE-GR330DRTM is a productive, durable rake for serious haymaking — and folds to a compact 52" transport width for easy towing.

Clean, Consistent Windrows

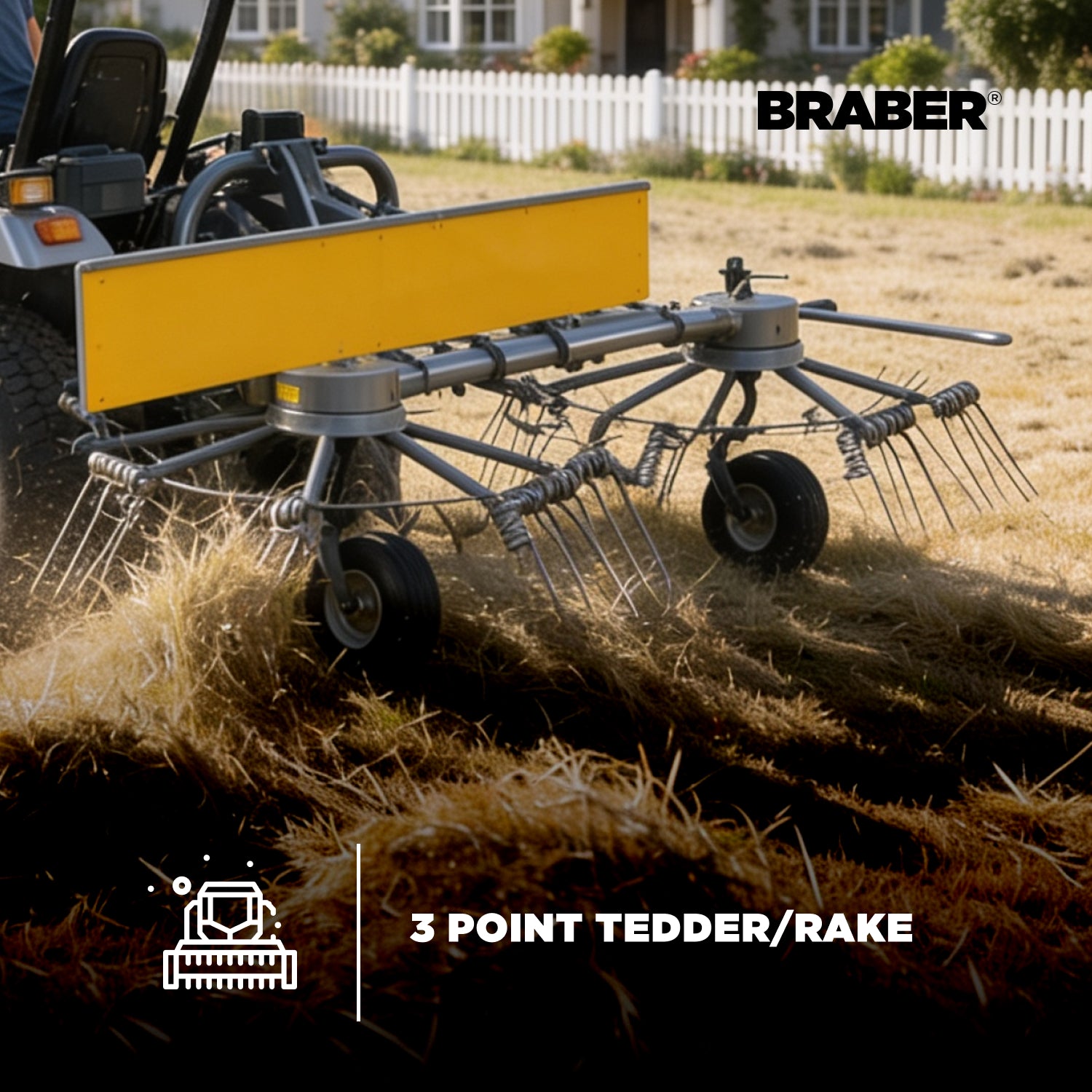

After hay is cut and dried, it needs to be gathered into windrows before baling. The BE-GR330DRTM does exactly that: as the PTO spins the rotor, the 11 rotating arms — each carrying 4 double tines — sweep across the field and move the crop sideways into a clean, uniform windrow. The adjustable swath curtain shapes the windrow consistently so it feeds smoothly into the baler, while the tandem wheels let the rake follow ground contour closely for a clean rake that lifts the crop without dragging in dirt or leaving hay behind. The result is faster raking, better-formed windrows, and cleaner forage.

Features

Category 1 & 2 3-Point Hitch and 540 PTO

The BE-GR330DRTM mounts and powers up directly from your tractor:

• Category 1 & 2, 3-point hitch for versatile tractor compatibility
• 540 RPM PTO drive with radial pin clutch protection
• Matched to tractors up to 40 HP

11 Arms with 4 Double Tines Each

Eleven rotating arms, each fitted with 4 double tines, sweep the 132" working width for fast, thorough coverage and clean windrow formation.

Tandem Wheels for Ground Following

Tandem wheels let the rake follow the contour of the ground closely, keeping the tines at a consistent working height for a clean rake across uneven fields.

Adjustable Swath Curtain

An adjustable swath curtain shapes the crop into a clean, consistent windrow, helping it feed smoothly into the baler.

Manual Height Adjustment

Manual height adjustment sets the tine height precisely for the conditions, for clean raking that lifts the crop without dragging the ground.

Heavy-Duty Frame with Steel Guards

A heavy-duty frame and protective steel guards give the BE-GR330DRTM the durability for dependable performance season after season.

Compact Transport Width

The rake's tandem, trailed setup tucks to a compact 52" transport width, making it easy to tow between fields and along narrow lanes.

Built for Haymaking and Forage

With a wide working width and clean windrow formation, the BE-GR330DRTM is suited for:

• Raking cut hay into windrows for baling
• Gathering forage crops cleanly and efficiently
• Working large hay fields with fewer passes
• Forming consistent windrows for smooth baler feeding

Warranty

The BE-GR330DRTM is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1 & 2, 3-Point Hitch
• Drive: 540 RPM PTO with Radial Pin Clutch
• Power Requirement: Up to 40 HP Tractor
• Working Width: 132"
• Arms: 11
• Tines: 4 Double Tines per Arm
• Wheels: Tandem
• Height Adjustment: Manual
• Swath Curtain: Adjustable
• Frame: Heavy-Duty with Steel Guards
• Transport Width: 52"
• Weight: 1,298 lbs
• SKU: BE-GR330DRTM
• Brand: Braber Equipment

Note: Performance varies with crop type, moisture, and field conditions, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Efficient Windrowing — Built by Braber

The Braber BE-GR330DRTM combines a Category 1 & 2 3-point hitch, 540 PTO drive, 11 arms with double tines, tandem ground-following wheels, and an adjustable swath curtain into one productive 132" tandem rotary rake. For gathering hay into clean windrows quickly, the BE-GR330DRTM covers the field and forms the row.

BE-GR330DRTM — 162" Tandem Rotary Rake with Category 1 & 2 3-Point Hitch and 11 Arms.
