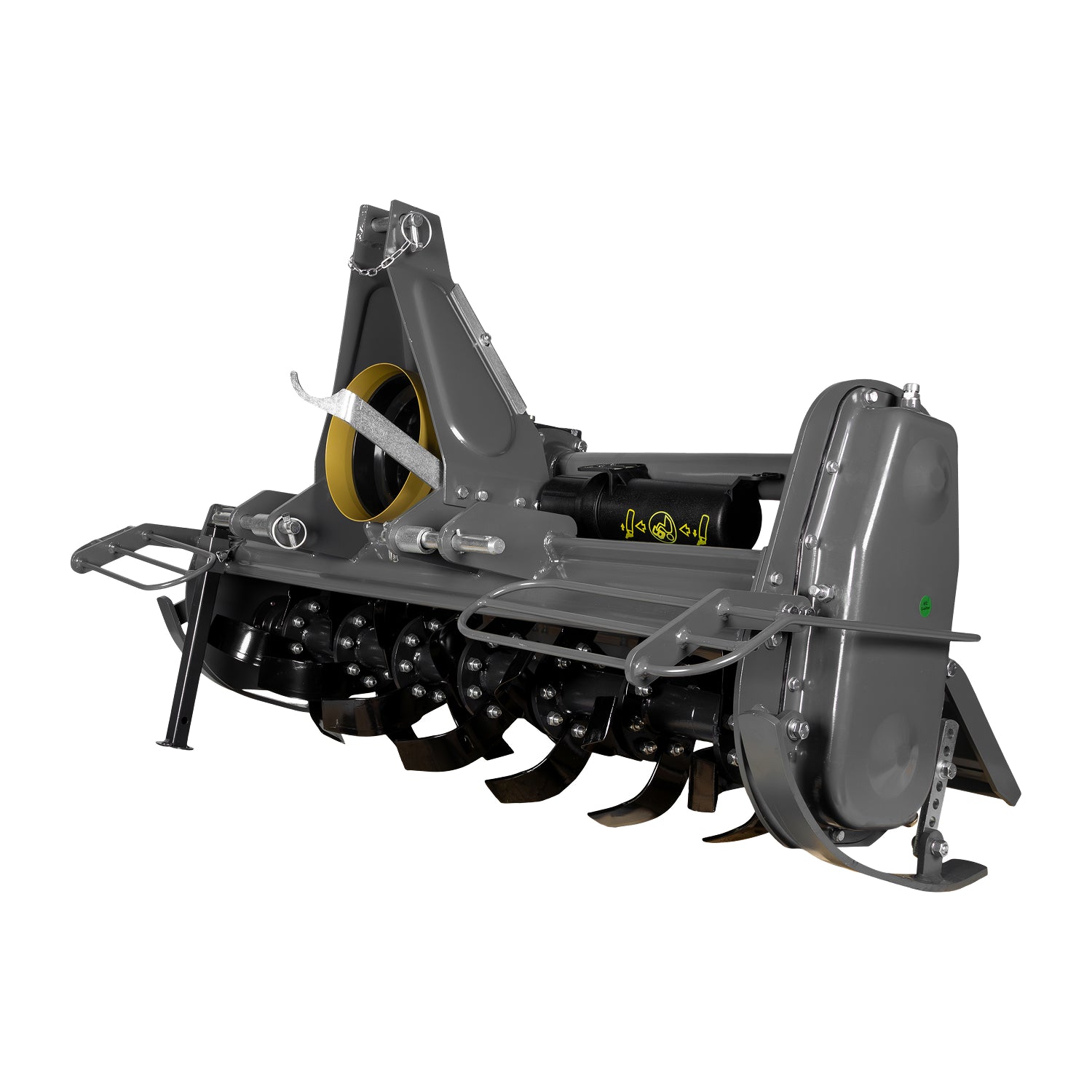

51" FTL Rotary Tiller with Category 1 3-Point Hitch, Chain Drive, and 540 PTO

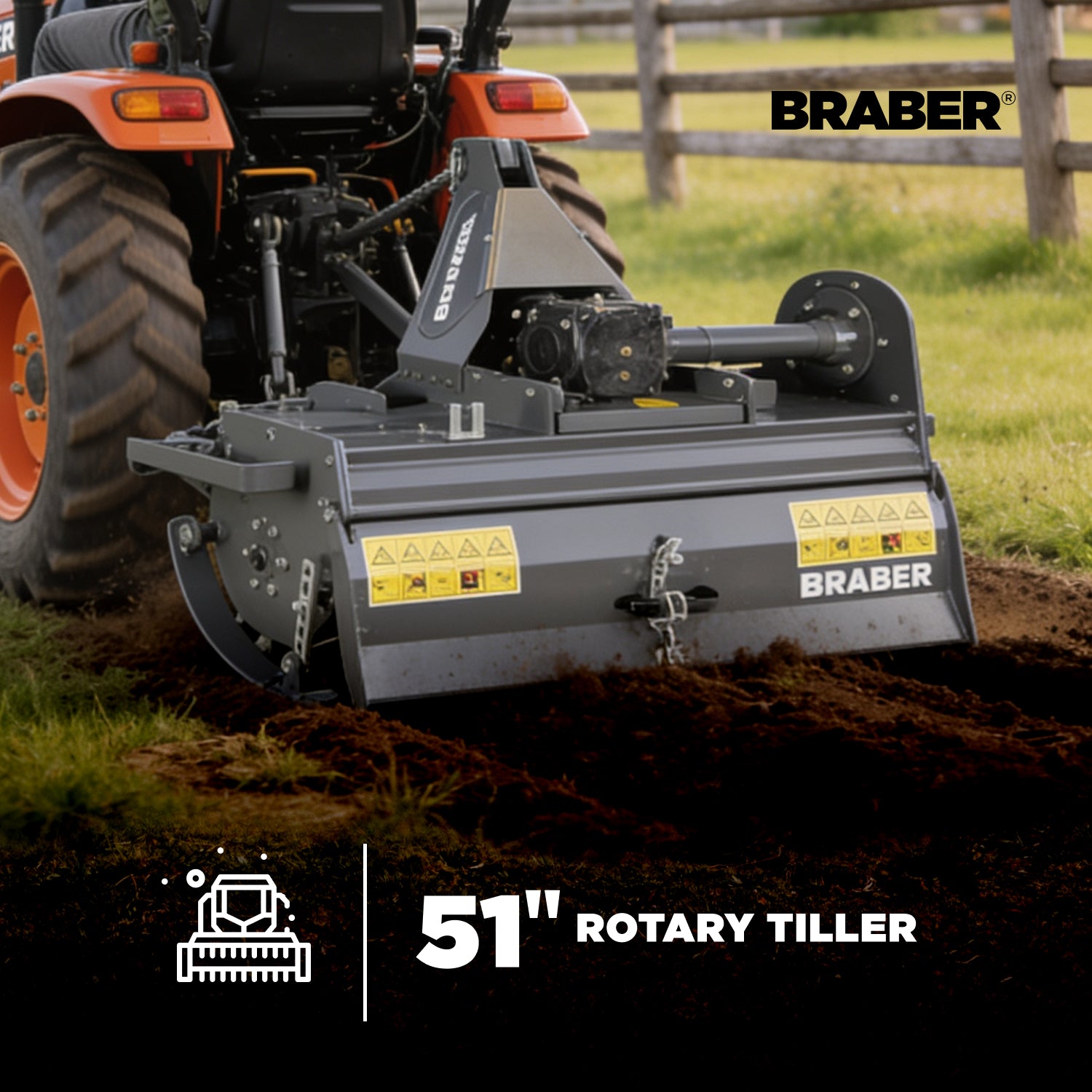

The Braber BE-FTL135 is a PTO-driven rotary tiller sized for compact tractors, turning and pulverizing a full 51" path in a single pass. Mounting to a Category 1 3-point hitch with a fixed center mount and running off a 540 RPM PTO, it's an efficient, value-minded choice for preparing garden plots and estates — matched to compact tractors in the 15–30 HP range.

A chain drive system transfers power reliably to the rotor, with a shear-pin PTO yoke protecting the driveline from shock loads. Turning 28 C-shaped tines — 4 per flange — and equipped with adjustable skid shoes and a parking stand, the BE-FTL135 is a straightforward, dependable tillage tool for compact-tractor owners.

Full-Width Tilling for Compact Tractors

Unlike a walk-behind tiller, the BE-FTL135 tills the full 51" width in one pass, drawing on the tractor's power through the PTO to work plots and estates quickly. The 28 C-shaped tines chop, mix, and pulverize the soil as the rotor spins, producing a fine, even seedbed and incorporating residue and amendments. The adjustable skid shoes keep the rotor at a consistent 3.54" tillage depth across the pass for uniform results.

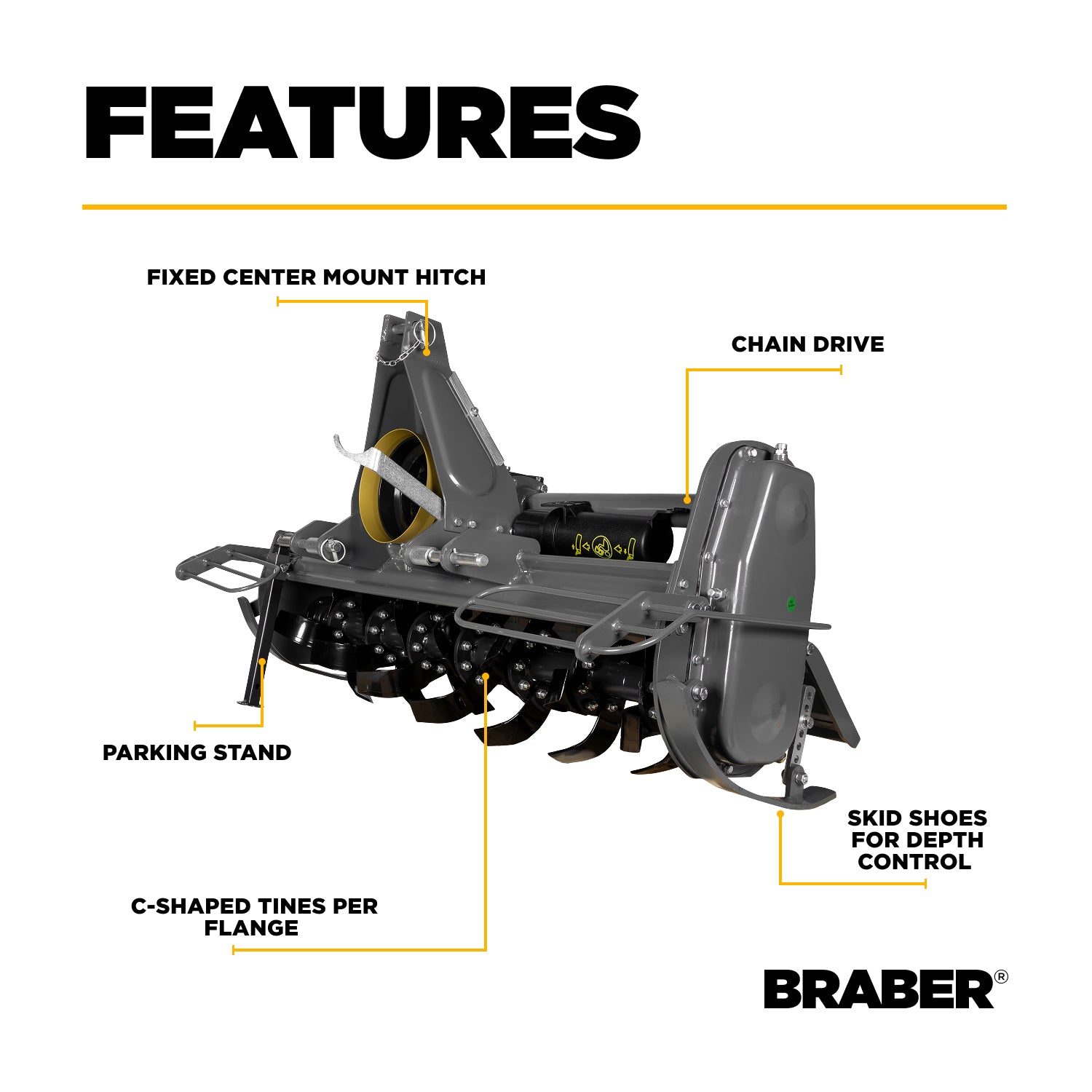

Features

Category 1 3-Point Hitch and 540 PTO Drive

The BE-FTL135 mounts and powers up directly from your tractor:

• Category 1, 3-point hitch with fixed center mount for universal tractor integration
• 540 RPM PTO drive — no separate engine to fuel or maintain
• Ideal for compact tractors in the 15–30 HP range

Chain Drive System

The BE-FTL135 uses a chain drive system to transfer power from the PTO to the rotor — a proven, reliable design that keeps the tiller efficient and well suited to compact-tractor tillage.

Shear-Pin PTO Yoke Protection

A shear-pin PTO yoke protects the driveline from shock loads. If the rotor strikes a rock, root, or other obstruction, the shear pin breaks to interrupt the drive before damaging force reaches the gearbox and PTO — and is simply replaced to get back to work, safeguarding the more costly components.

28 C-Shaped Tines

The rotor carries 28 C-shaped tines — 4 per flange — for thorough soil mixing. Key tine features include:

• 28 total blades for effective mixing and pulverizing
• 4 C-shaped tines per flange for consistent coverage across the width
• C-shaped profile well suited to general tilling and seedbed preparation

Adjustable Skid Shoes for Depth Control

The adjustable skid shoes let you set and maintain a consistent 3.54" tillage depth, keeping the rotor working evenly across the full width for uniform results.

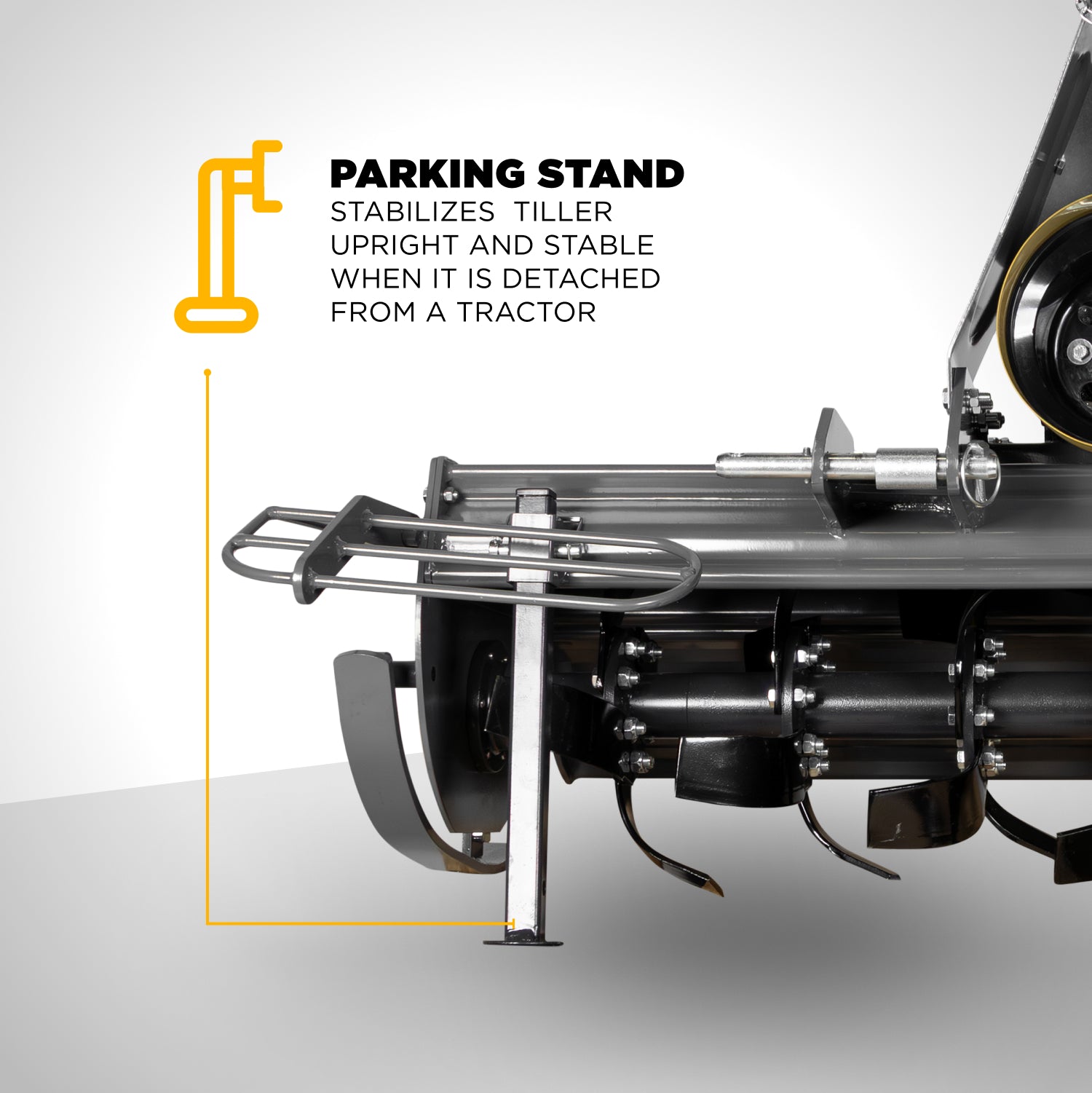

Parking Stand

The included parking stand keeps the tiller stable and upright when detached, making storage tidy and re-mounting to the tractor quick and easy.

Built for Garden and Estate Soil Preparation

With a 51" tilling path sized for compact tractors, the BE-FTL135 is suited for:

• Preparing seedbeds across garden plots and estates
• Breaking down and pulverizing soil for planting
• Incorporating crop residue, cover crops, and amendments
• Renovating and reworking established ground

Warranty

The BE-FTL135 is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1, 3-Point Hitch, Fixed Center Mount
• Power Requirement: 15–30 HP Tractor
• PTO Speed: 540 RPM
• Driveline Protection: Shear-Pin PTO Yoke
• Tilling Width: 51"
• Tillage Depth: 3.54" (Adjustable via Skid Shoes)
• Drive System: Chain Drive
• Tines: 28 Total C-Shaped Tines (4 per Flange)
• Depth Control: Adjustable Skid Shoes
• Storage: Parking Stand
• SKU: BE-FTL135
• Brand: Braber Equipment

Note: Tillage depth and performance vary with soil type, moisture, and condition, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Full-Width Tilling for Compact Tractors — Built by Braber

The Braber BE-FTL135 combines a Category 1 3-point hitch, 540 PTO drive, a reliable chain drive system, shear-pin driveline protection, and 28 C-shaped tines into one efficient 51" rotary tiller. For compact tractor owners preparing seedbeds across gardens and estates, the BE-FTL135 turns and pulverizes the soil in a single full-width pass.

BE-FTL135 — 51" FTL Rotary Tiller with Category 1 3-Point Hitch, Chain Drive, and 540 PTO.
