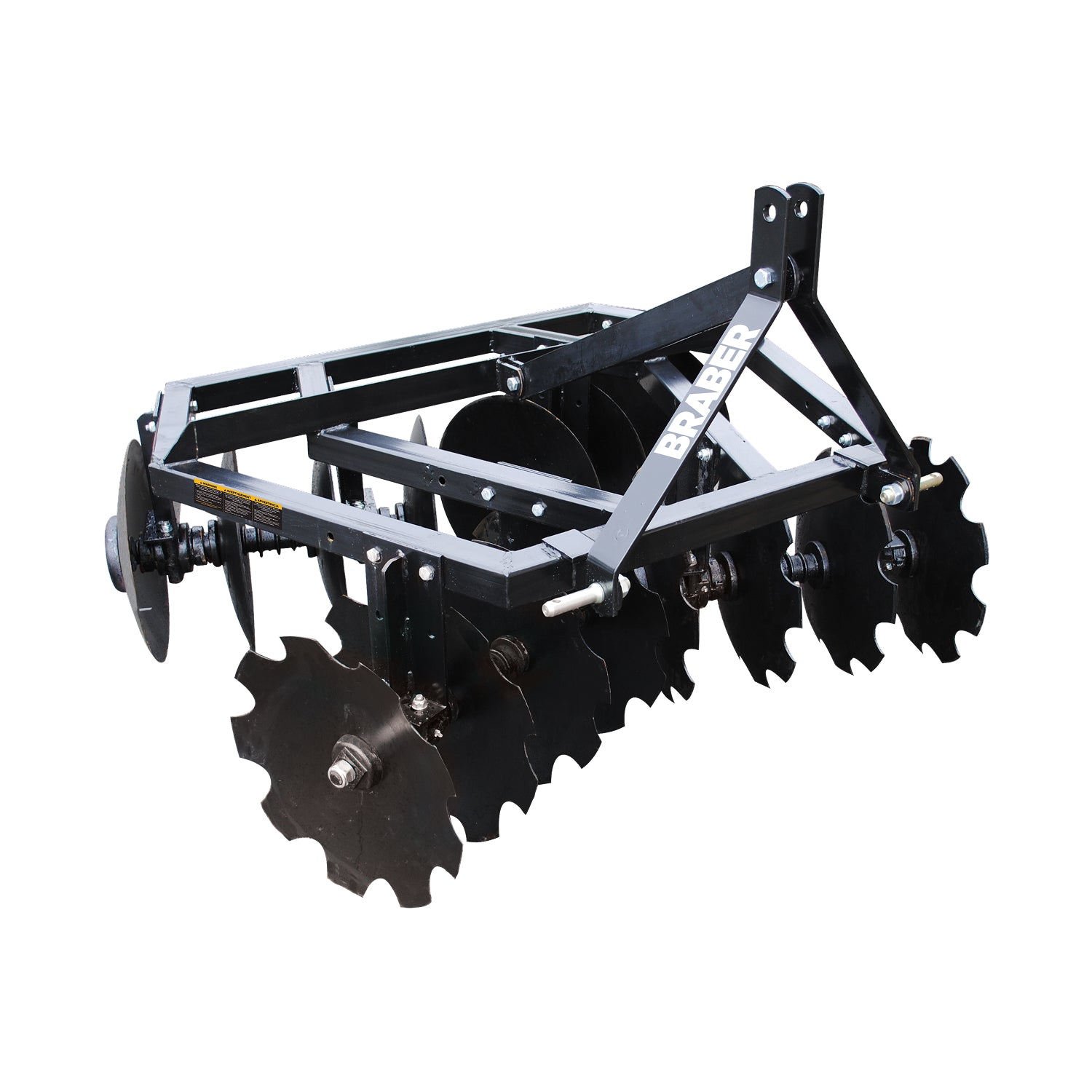

4'2" Disc Harrow with Category 1 3-Point Hitch — 16" Discs, 50" Cutting Width

The Braber BE-DH1216N is a compact 3-point hitch disc harrow built to cut, chop, and level soil for a clean, planting-ready seedbed. Mounting to a Category 1 3-point hitch and matched to tractors up to 40 HP, it combines notched front discs and plain rear discs across a 50" cutting width to break up clods, slice through residue, and smooth the ground in a single pass.

With 16" disc blades, regreasable cast iron bearings, a tubular iron frame, and a 410 lb build, the BE-DH1216N is a durable, low-maintenance implement well sized for compact and sub-compact tractor owners preparing gardens, fields, and food plots.

Cut, Chop, and Level in One Pass

A disc harrow's two-stage design is what makes it so effective. The notched front discs bite aggressively into the ground, slicing through crop residue and breaking up clods left behind by plowing or last season's growth. The plain rear discs then follow to level and finish the soil, leaving a smooth, even surface ready for planting. The 16" blade diameter reaches a useful working depth, while the 50" cutting width covers ground efficiently across each pass.

Features

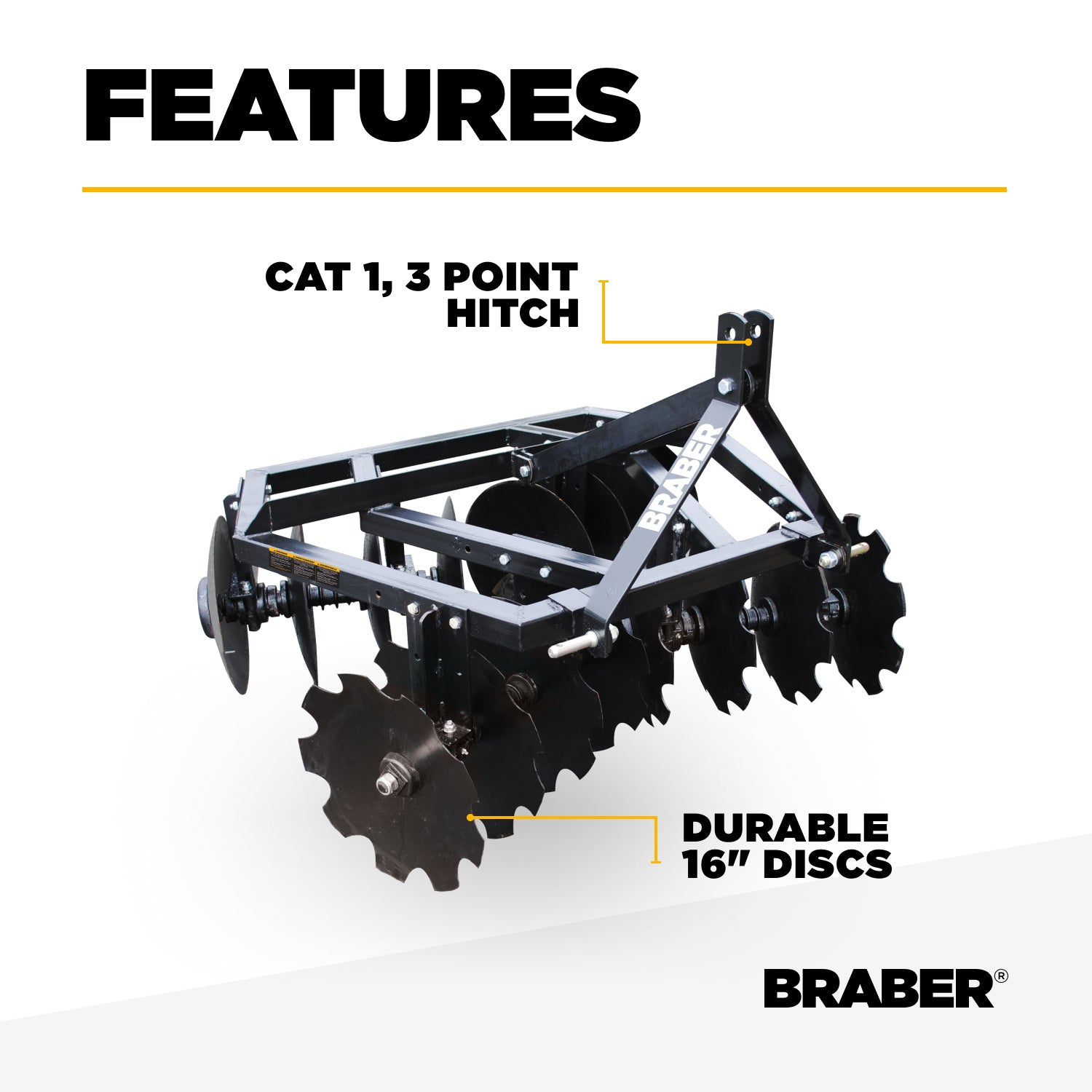

Category 1 3-Point Hitch

The BE-DH1216N mounts directly to the tractor's 3-point hitch for easy attachment and transport:

• Category 1, 3-point hitch for easy tractor mounting
• Matched to tractors up to 40 HP
• No engine or PTO required — the discs are driven by ground contact as the implement is pulled

Notched Front and Plain Rear Discs

The BE-DH1216N uses a proven two-stage disc arrangement for effective cutting and leveling:

• Notched front discs to cut through residue and break up clods
• Plain rear discs to level and finish the soil
• 16" blade diameter for effective working depth
• 50" cutting width for efficient coverage

Regreasable Cast Iron Bearings

The regreasable cast iron bearings support the disc gangs through demanding soil work and allow simple, routine maintenance — keeping the harrow running season after season with basic upkeep.

Tubular Iron Frame

A tubular iron frame provides the strength and rigidity needed to keep the discs working at a consistent depth and angle, for durable, dependable performance under load.

Stable Build

Built for stability and consistent ground engagement:

• 410 lb build for stability and disc penetration during operation

Built for Seedbed and Soil Preparation

With notched and plain discs and a 50" cutting width, the BE-DH1216N is suited for:

• Preparing seedbeds for planting
• Breaking up clods and soil after plowing
• Slicing through and incorporating crop residue
• Leveling and smoothing gardens, fields, and food plots
• Working in amendments and organic matter

Warranty

The BE-DH1216N is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1, 3-Point Hitch
• Power Requirement: Up to 40 HP Tractor
• Blade Diameter: 16"
• Cutting Width: 50"
• Disc Configuration: Notched Front Discs, Plain Rear Discs
• Bearings: Regreasable Cast Iron
• Frame: Tubular Iron
• Weight: 410 lbs
• SKU: BE-DH1216N
• Brand: Braber Equipment

Note: Working depth and performance vary with soil type, moisture, and condition, as well as available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Dependable Soil Preparation — Built by Braber

The Braber BE-DH1216N combines a Category 1 3-point hitch, notched front and plain rear discs, regreasable cast iron bearings, and a tubular iron frame into one durable 4'2" disc harrow. For tractor owners preparing seedbeds and working soil, the BE-DH1216N cuts, chops, and levels in a single pass.

BE-DH1216N — 4'2" Disc Harrow with Category 1 3-Point Hitch, 16" Discs, and 50" Cutting Width.
