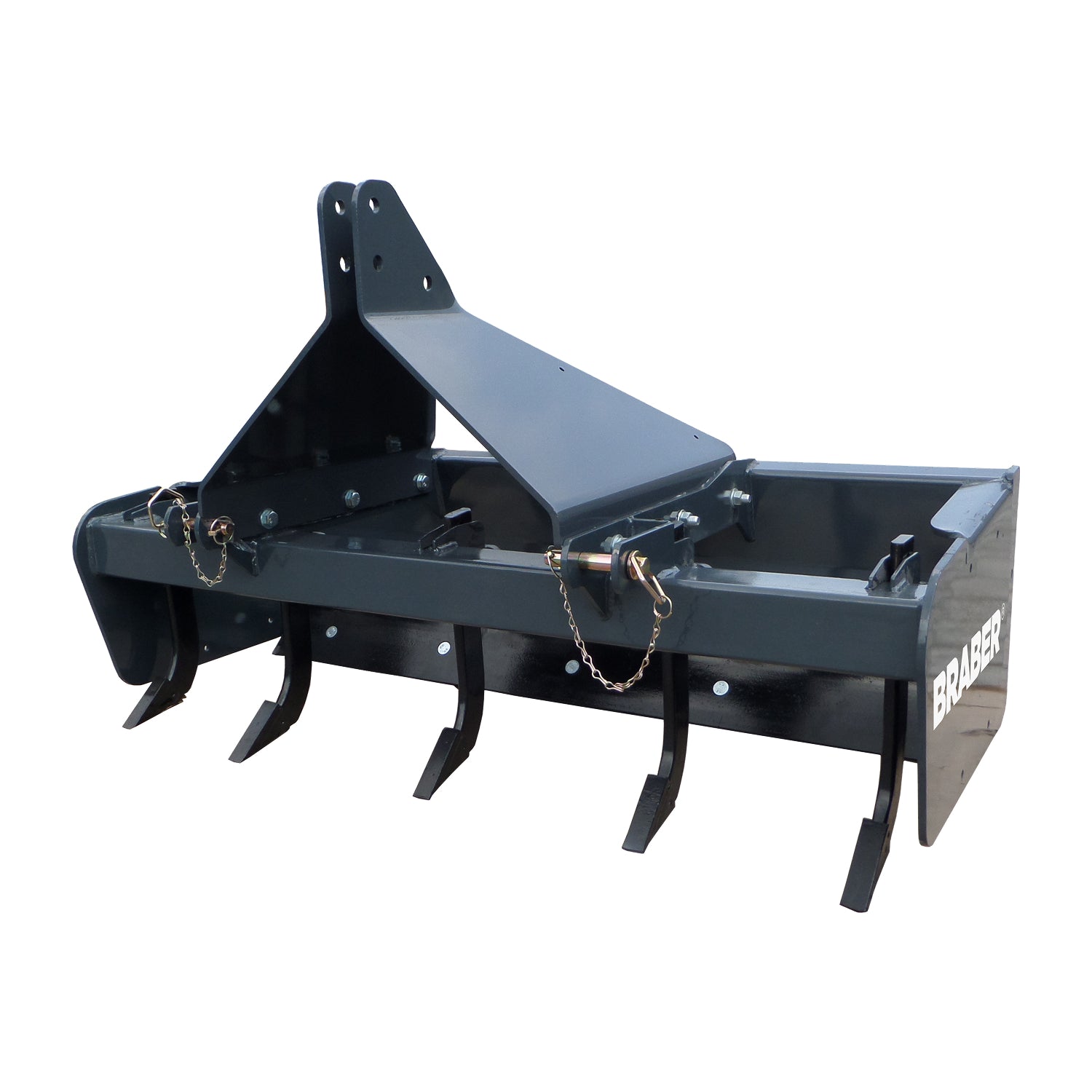

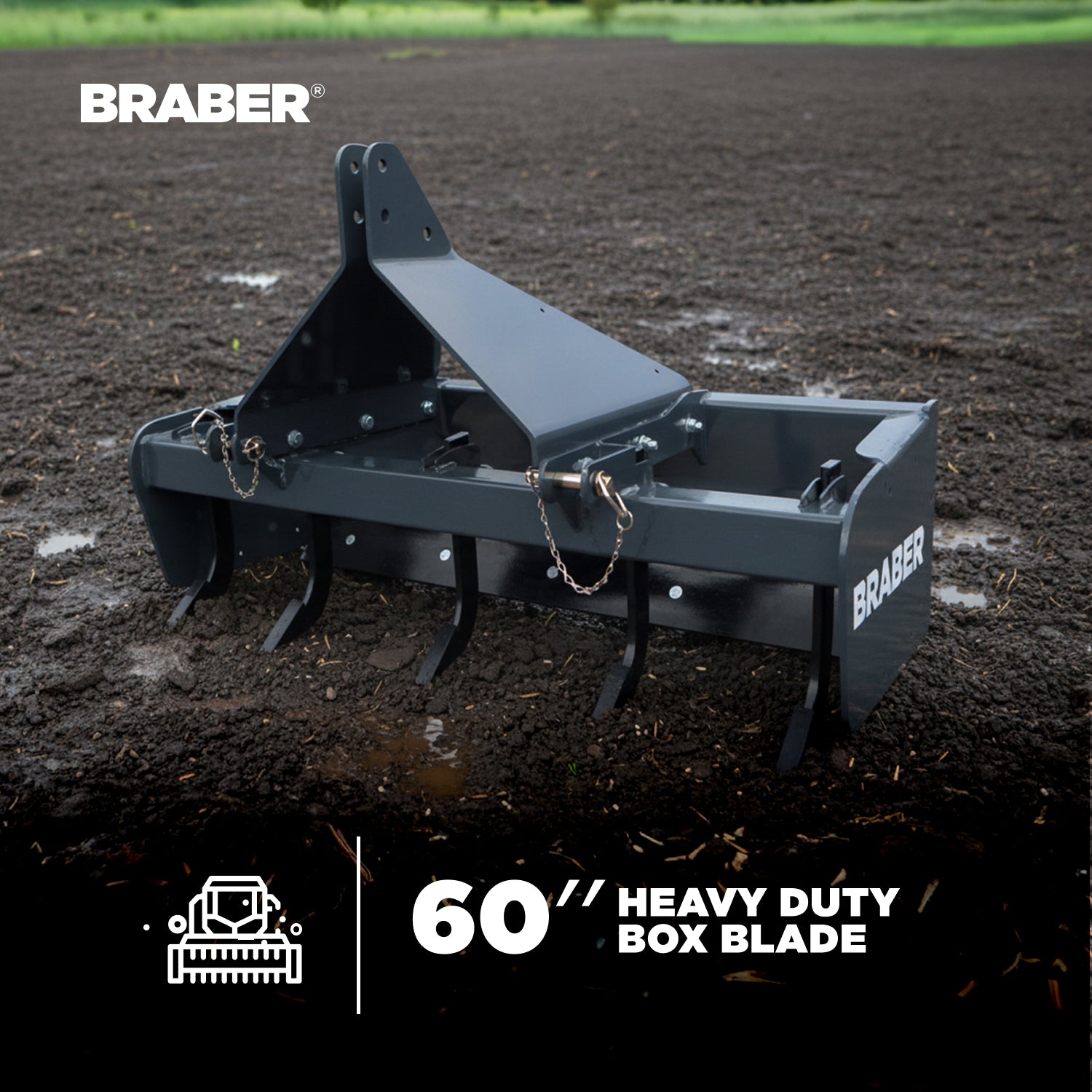

5' Heavy-Duty Box Blade with Category 1 3-Point Hitch — 60" Working Width

The Braber BE-BBR5ND is a 5' heavy-duty box blade built to rip, grade, carry, and level material. Mounting to a Category 1 3-point hitch and rated for utility tractors up to 50 HP, it combines 5 scarifier shanks with front and rear reversible cutting edges in an enclosed box — breaking up hard ground and grading it smooth in one versatile tool.

With 3/8" thick side panels, an enclosed upper frame, and a tall 17" moldboard, the BE-BBR5ND delivers the rigidity and material capacity that heavy-duty grading demands, on a stable 502 lb build.

Rip, Carry, Grade, and Level

A box blade is one of the most versatile grading tools a tractor can carry. The 5 scarifier shanks dig in to break up hard-packed ground, compacted gravel, and washboarded surfaces. The enclosed box then captures the loosened material between its front and rear cutting edges — pushing forward to cut and carry material, and back-dragging to spread, fill, and level it smooth. Because the 1/2" x 6" cutting edges are reversible, they flip end-for-end as they wear to extend their life. The result is a single implement that grades driveways, levels soil, spreads material, and clears snow.

Features

Category 1 3-Point Hitch

The BE-BBR5ND mounts directly to the tractor's 3-point hitch:

• Category 1, 3-point hitch for universal tractor integration
• Quick Hitch compatible
• Rated for utility tractors up to 50 HP
• No engine or PTO required — the box blade rips and grades by ground contact as it's pulled

5 Scarifier Shanks

Five heavy-duty scarifier shanks break up hard-packed ground, compacted gravel, and washboarded surfaces ahead of the box, loosening material so it can be carried and graded.

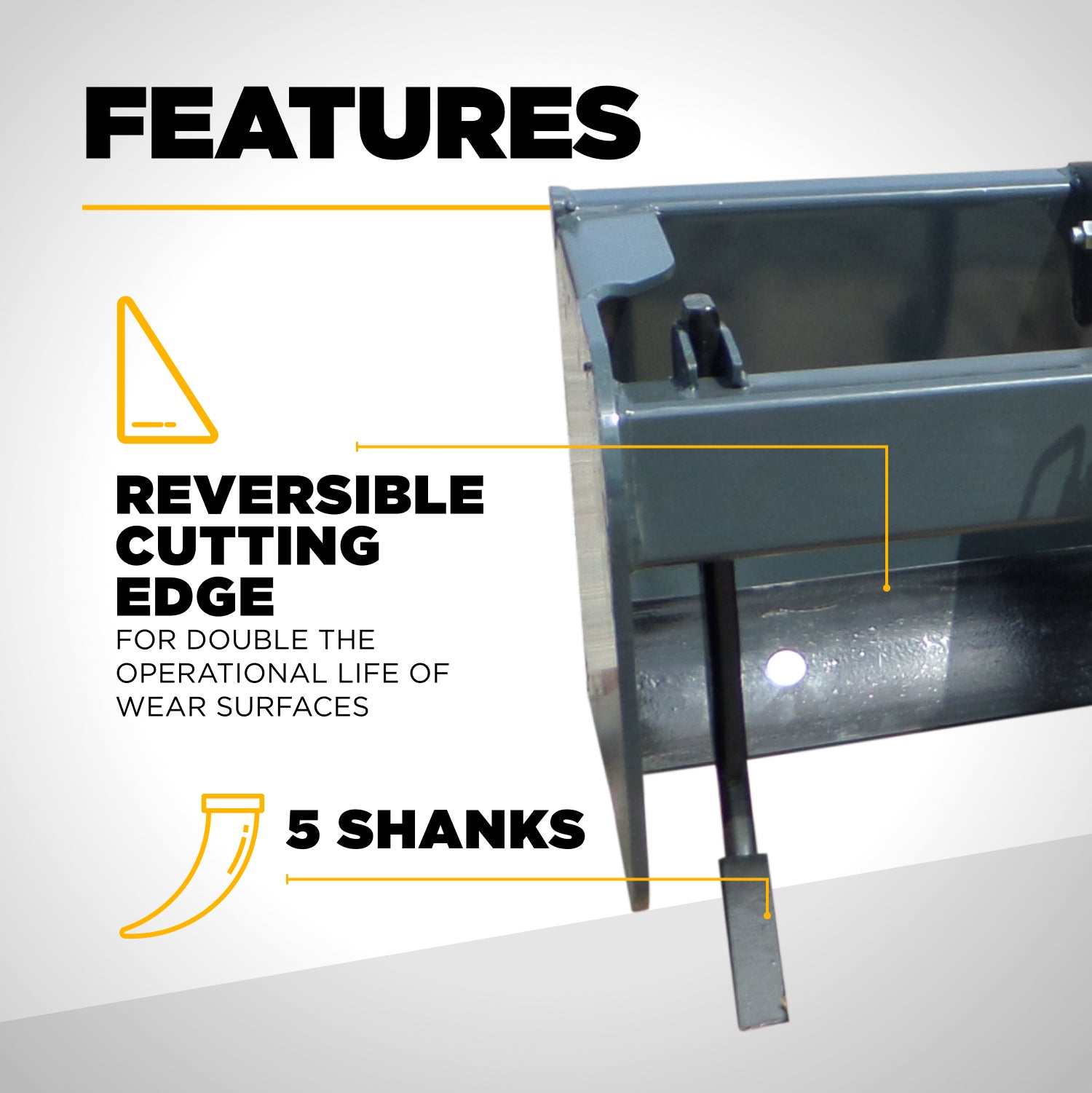

Front and Rear Reversible Cutting Edges

Front and rear reversible 1/2" x 6" cutting edges let the box cut and carry material when pushing forward and back-drag to spread and level when reversing — and flip end-for-end as they wear to extend their life.

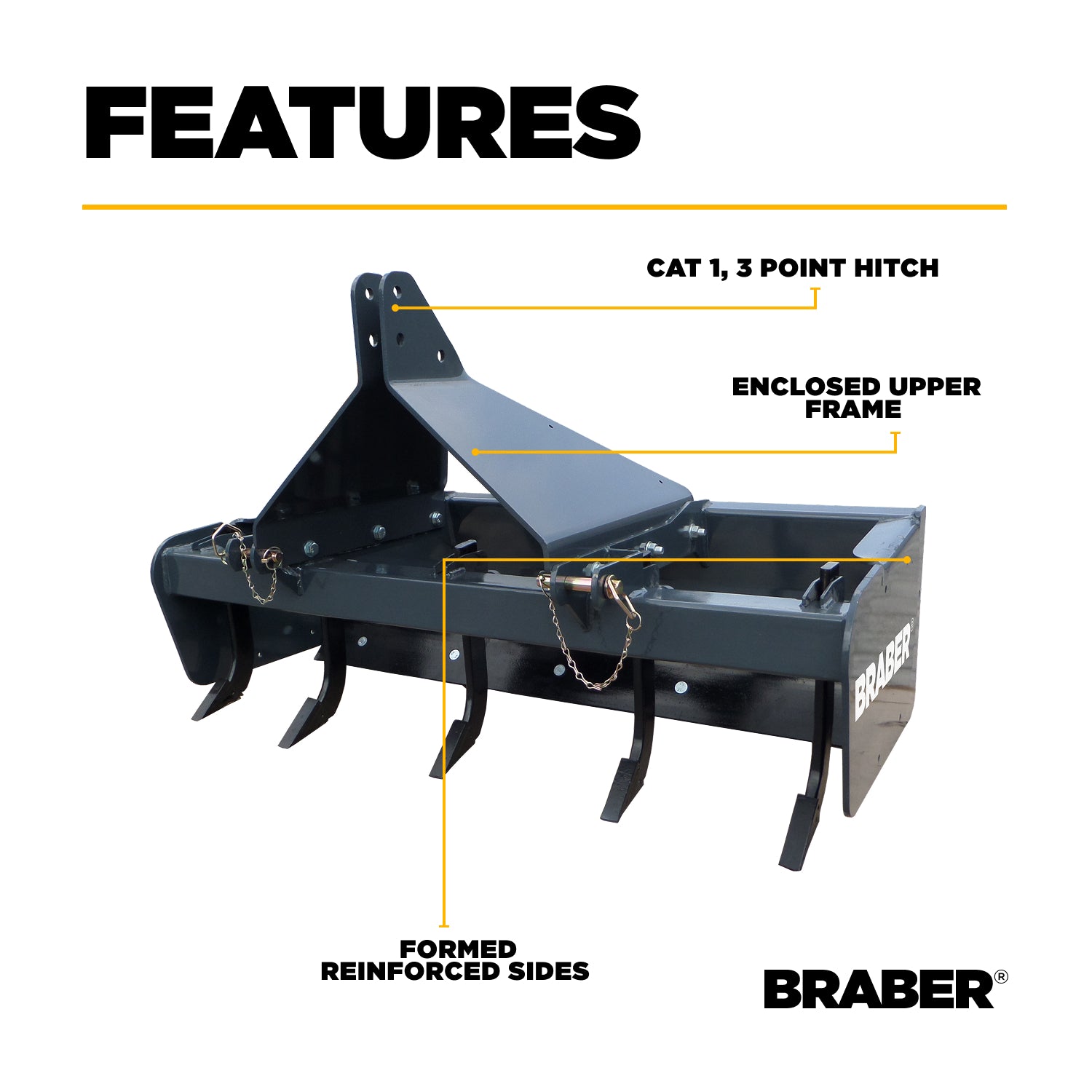

Heavy-Duty Enclosed Construction

An enclosed upper frame and 3/8" thick formed reinforced side panels give the BE-BBR5ND maximum rigidity, standing up to heavy grading loads over the long term.

17" Moldboard

A tall 17" moldboard gives the box the capacity to handle large volumes of material in each pass.

Built for Grading and Material Moving

With ripping, carrying, and grading in one tool, the BE-BBR5ND is suited for:

• Grading and maintaining driveways, lanes, and roads
• Breaking up hard-packed and washboarded surfaces
• Carrying, spreading, and leveling soil and gravel
• Back-dragging and filling low spots
• Clearing and leveling snow

Warranty

The BE-BBR5ND is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1, 3-Point Hitch (Quick Hitch Compatible)
• Power Requirement: Up to 50 HP Tractor
• Working Width: 60" (5')
• Scarifier Shanks: 5
• Cutting Edges: Front & Rear Reversible, 1/2" x 6"
• Moldboard Height: 17"
• Side Panels: 3/8" Thick
• Frame: Enclosed Upper Frame
• Weight: 502 lbs
• SKU: BE-BBR5ND
• Brand: Braber Equipment

Note: Performance varies with material type, ground condition, and available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Heavy-Duty Grading — Built by Braber

The Braber BE-BBR5ND combines a Category 1 3-point hitch, 5 scarifier shanks, front and rear reversible cutting edges, and heavy-duty enclosed construction into one capable 5' box blade. For ripping, grading, carrying, and leveling material, the BE-BBR5ND does it all in a single tool.

BE-BBR5ND — 5' Heavy-Duty Box Blade with Category 1 3-Point Hitch and 60" Working Width.
