4' Box Blade with Category 1 3-Point Hitch — 48" Working Width

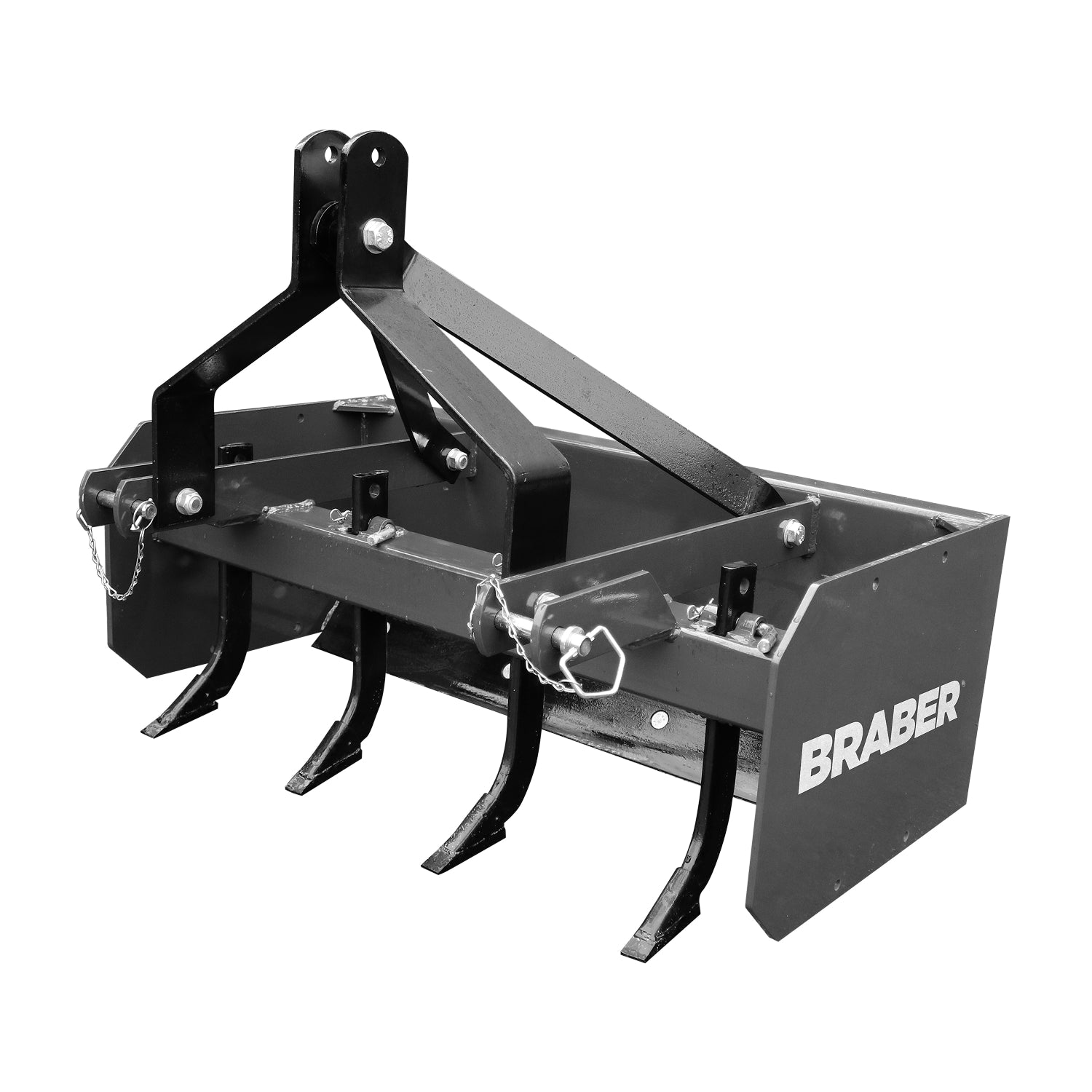

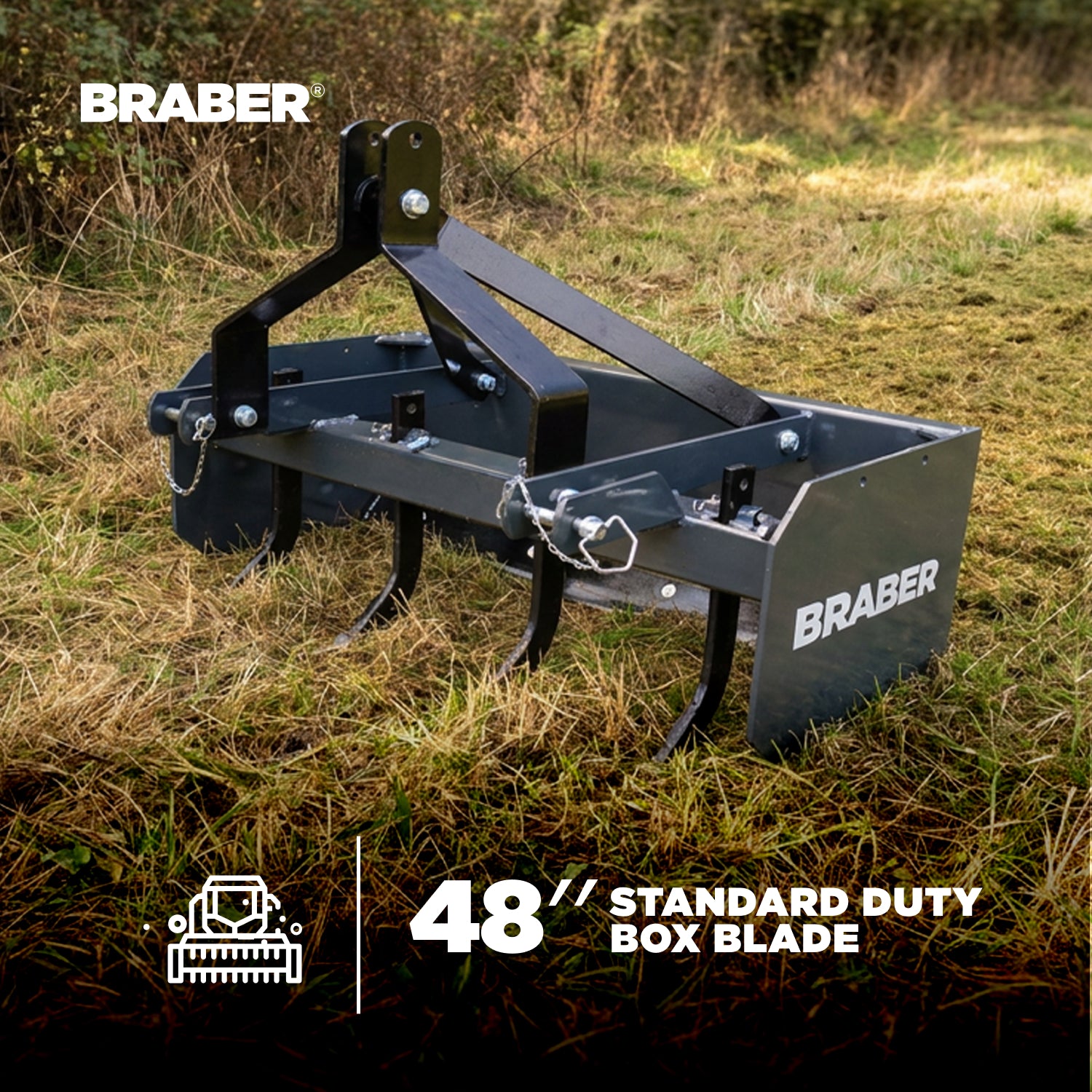

The Braber BE-BBR4N is a 4' box blade built to rip, grade, carry, and level material in compact and narrow areas. Mounting to a Category 1 3-point hitch and rated for utility tractors up to 50 HP, it combines 4 scarifier shanks with front and rear reversible cutting edges — breaking up hard ground and grading it smooth in one versatile tool.

With 3/8" thick side panels and a tall 17" moldboard on a stable 368 lb build, the BE-BBR4N is a capable, durable grading tool well sized for smaller tractors and tighter spaces.

Rip, Carry, Grade, and Level

A box blade is one of the most versatile grading tools a tractor can carry. The 4 scarifier shanks dig in to break up hard-packed ground, compacted gravel, and washboarded surfaces. The box then captures the loosened material between its front and rear cutting edges — pushing forward to cut and carry material, and back-dragging to spread, fill, and level it smooth. Because the 1/2" x 6" cutting edges are reversible, they flip end-for-end as they wear to extend their life. The result is a single implement that grades driveways, levels soil, spreads material, and clears snow.

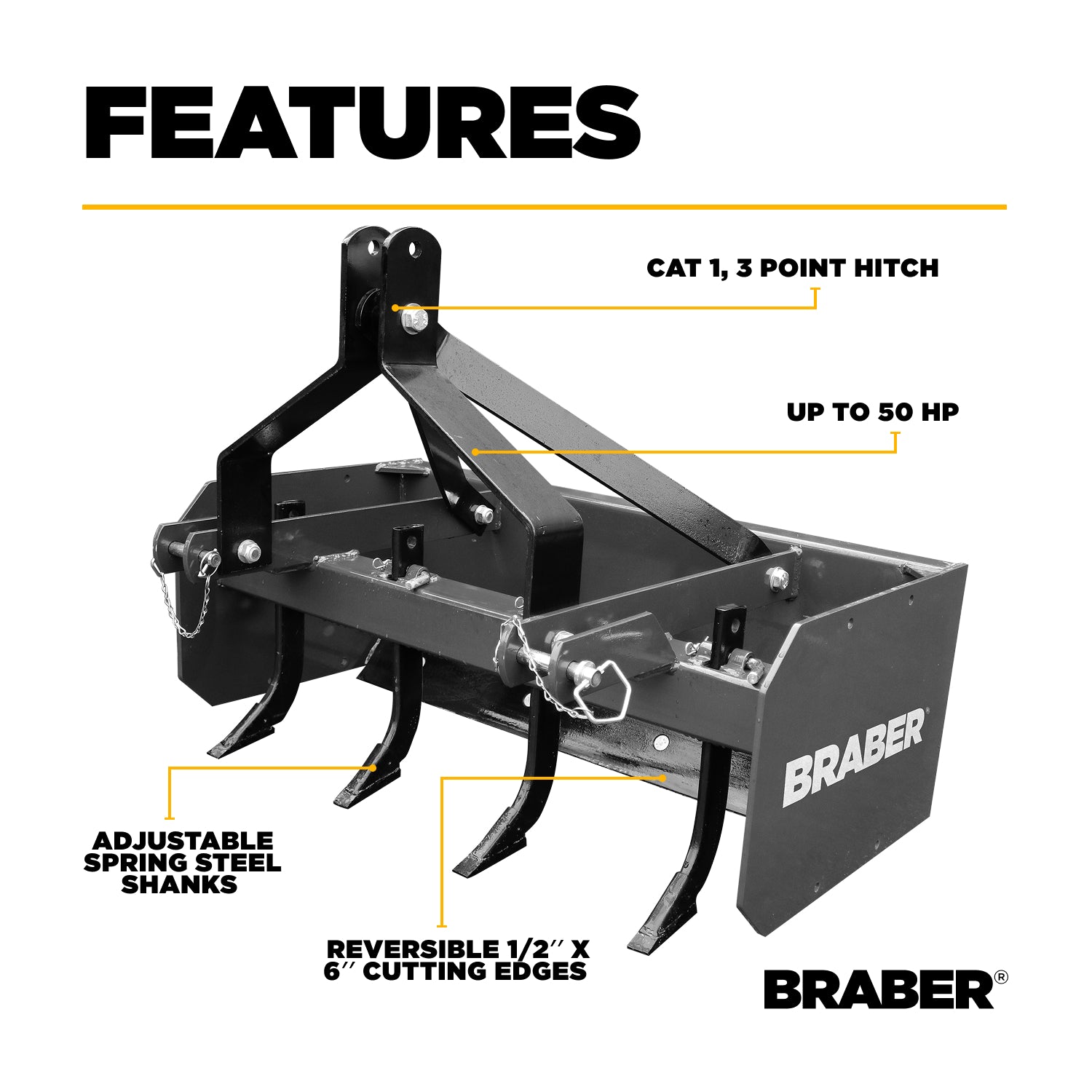

Features

Category 1 3-Point Hitch

The BE-BBR4N mounts directly to the tractor's 3-point hitch:

• Category 1, 3-point hitch for universal tractor integration
• Rated for utility tractors up to 50 HP
• No engine or PTO required — the box blade rips and grades by ground contact as it's pulled

4 Scarifier Shanks

Four heavy-duty scarifier shanks break up hard-packed ground, compacted gravel, and washboarded surfaces ahead of the box, loosening material so it can be carried and graded.

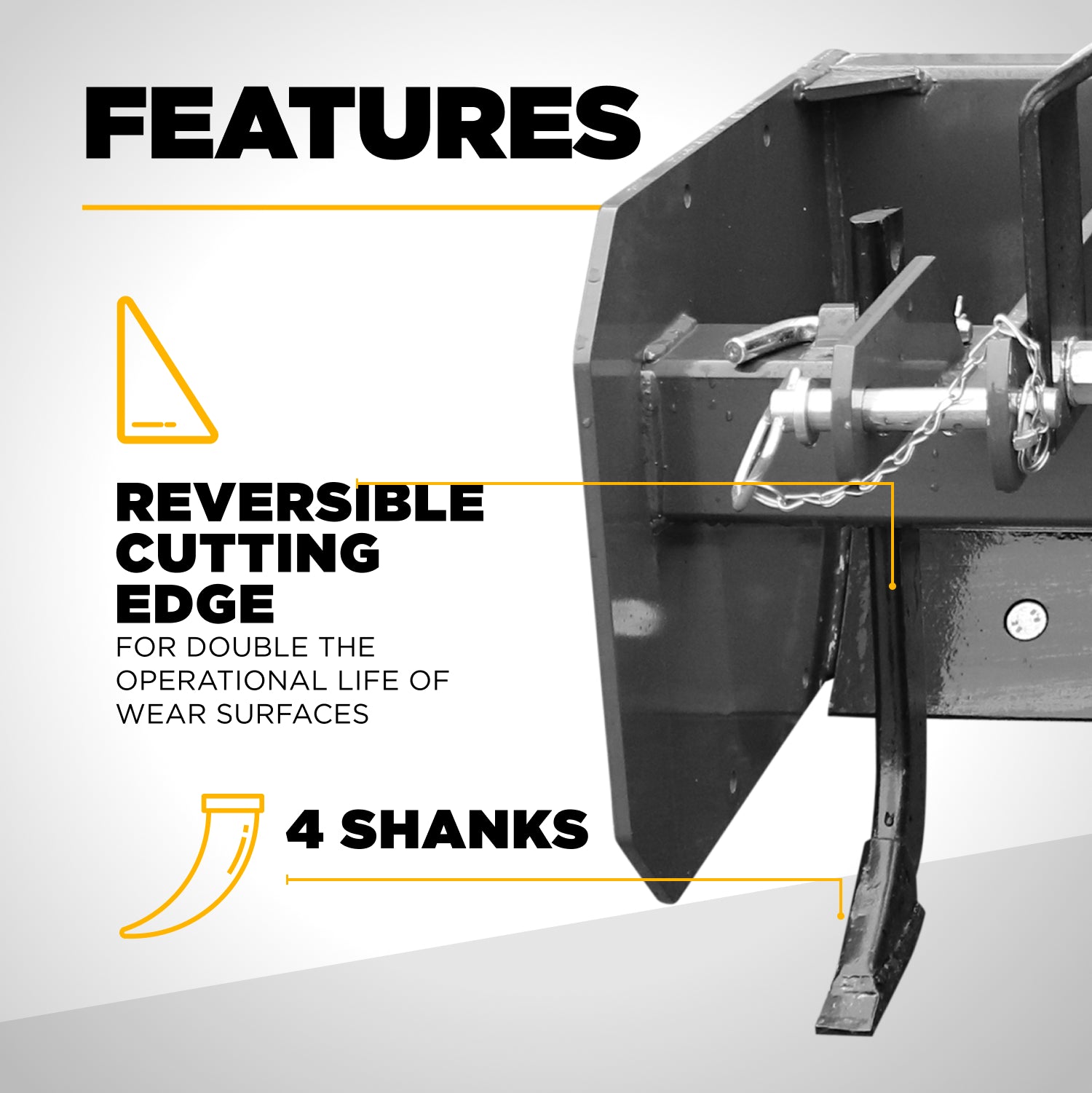

Front and Rear Reversible Cutting Edges

Front and rear reversible 1/2" x 6" cutting edges let the box cut and carry material when pushing forward and back-drag to spread and level when reversing — and flip end-for-end as they wear to extend their life.

3/8" Side Panels

3/8" thick side panels provide the structural integrity to stand up to repeated grading work for long-term durability.

17" Moldboard

A tall 17" moldboard gives the box the capacity to handle large volumes of material in each pass.

Built for Grading and Material Moving

With ripping, carrying, and grading in one tool, the BE-BBR4N is suited for:

• Grading and maintaining driveways, lanes, and roads
• Breaking up hard-packed and washboarded surfaces
• Carrying, spreading, and leveling soil and gravel
• Back-dragging and filling low spots
• Clearing and leveling snow

Warranty

The BE-BBR4N is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1, 3-Point Hitch
• Power Requirement: Up to 50 HP Tractor
• Working Width: 48" (4')
• Scarifier Shanks: 4
• Cutting Edges: Front & Rear Reversible, 1/2" x 6"
• Moldboard Height: 17"
• Side Panels: 3/8" Thick
• Weight: 368 lbs
• SKU: BE-BBR4N
• Brand: Braber Equipment

Note: Performance varies with material type, ground condition, and available tractor horsepower. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Versatile Grading — Built by Braber

The Braber BE-BBR4N combines a Category 1 3-point hitch, 4 scarifier shanks, front and rear reversible cutting edges, and 3/8" side panel construction into one capable 4' box blade. For ripping, grading, carrying, and leveling material, the BE-BBR4N does it all in a single tool.

BE-BBR4N — 4' Box Blade with Category 1 3-Point Hitch and 48" Working Width.
