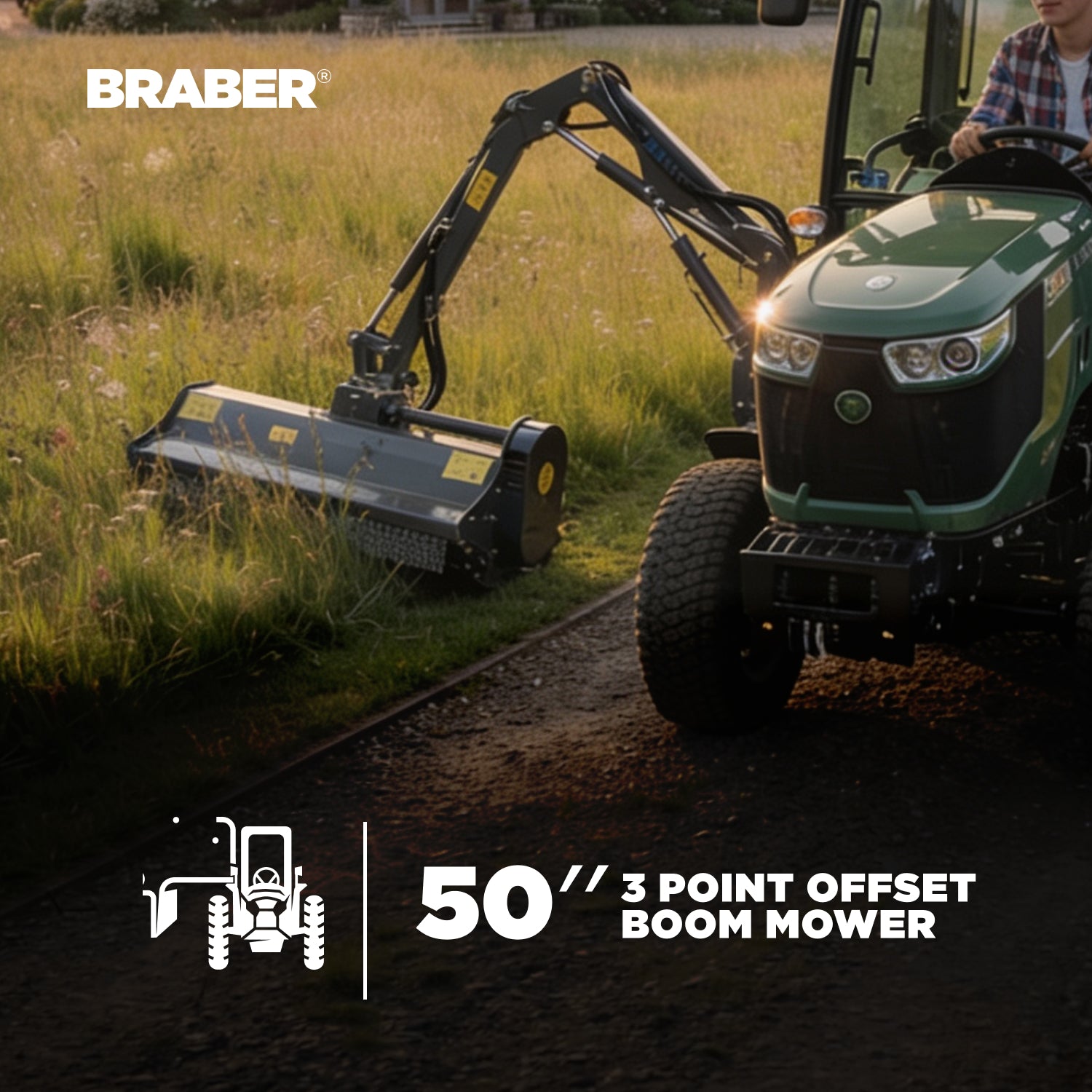

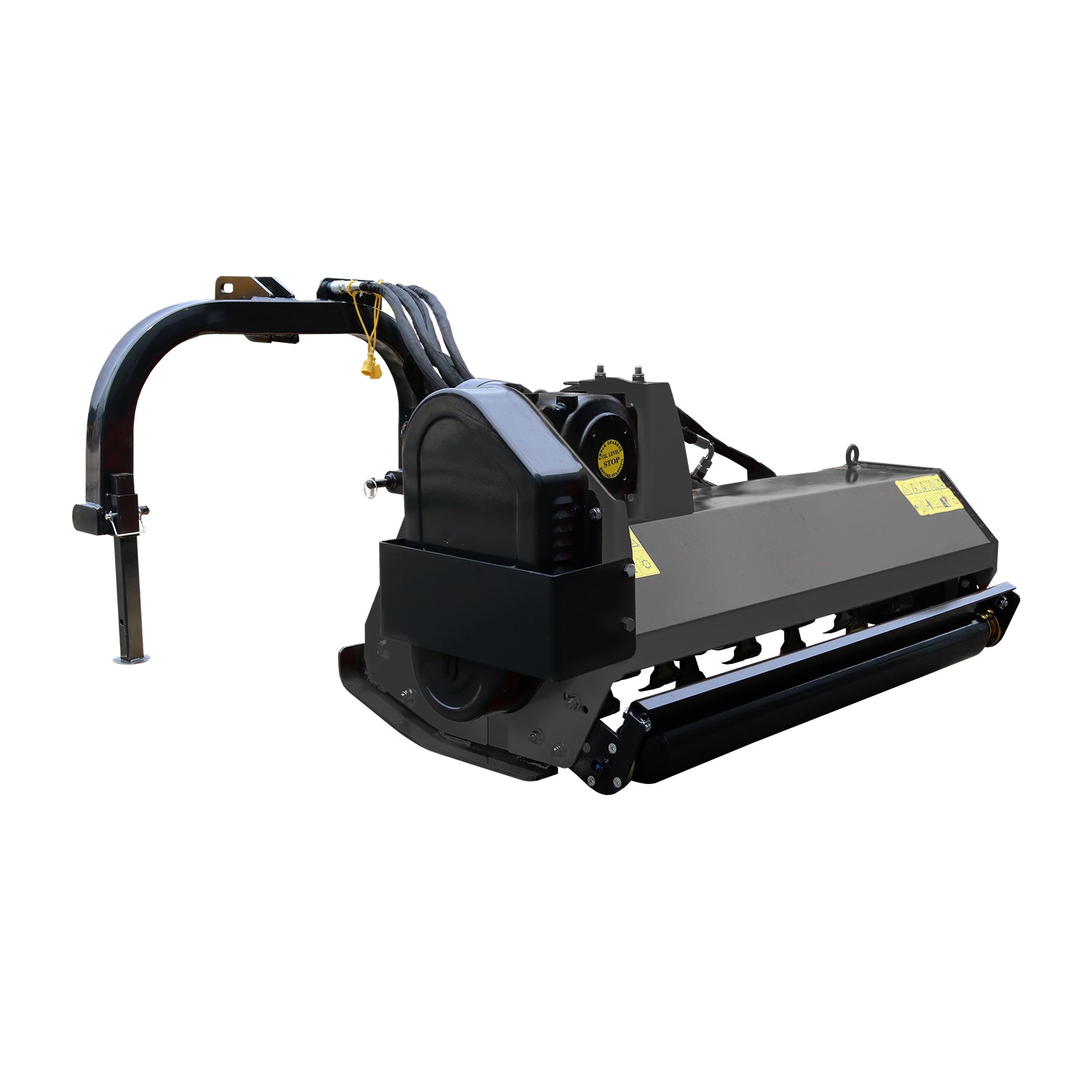

50" 3-Point Offset Boom Mower with Category 1 Hitch — Hydraulic Tilt & Offset, 20 Hammers

The Braber BE-AGL125F is a 3-point offset boom mower built to cut where a conventional mower can't reach — ditch banks, road verges, slopes, and hedges. Mounting to a Category 1 3-point hitch and driven by a 540 RPM PTO through a cast iron gearbox, its flail head carries 20 hammers for industrial-grade mulching, and articulates on a hydraulic boom to tackle terrain off to the side of the tractor. It's matched to tractors from 20 to 40 HP.

A hydraulic offset hitch shifts the head beyond the tractor's tire track, while hydraulic tilt from +90° to −53° pivots the head for vertical and sloped work — and a full-width rear roller holds a consistent cutting height and protects the turf.

Reach Beyond the Tractor — and Tilt to the Terrain

What sets a boom mower apart is its reach and articulation. The hydraulic offset hitch slides the flail head out to the side, letting you mow beyond the tractor's wheels — along a ditch, a fence line, or a canal bank — while the tractor stays safely on level ground. From there, hydraulic tilt pivots the head anywhere from +90° up (for hedge faces and embankment tops) to −53° down (for ditch bottoms and bank slopes), following the contour of the land. The flail head's 20 hammers mulch grass, weeds, and light brush cleanly, throwing the cuttings down rather than out to the side — the same contained, safe cutting action that makes flail heads ideal for roadside and property-edge work.

Features

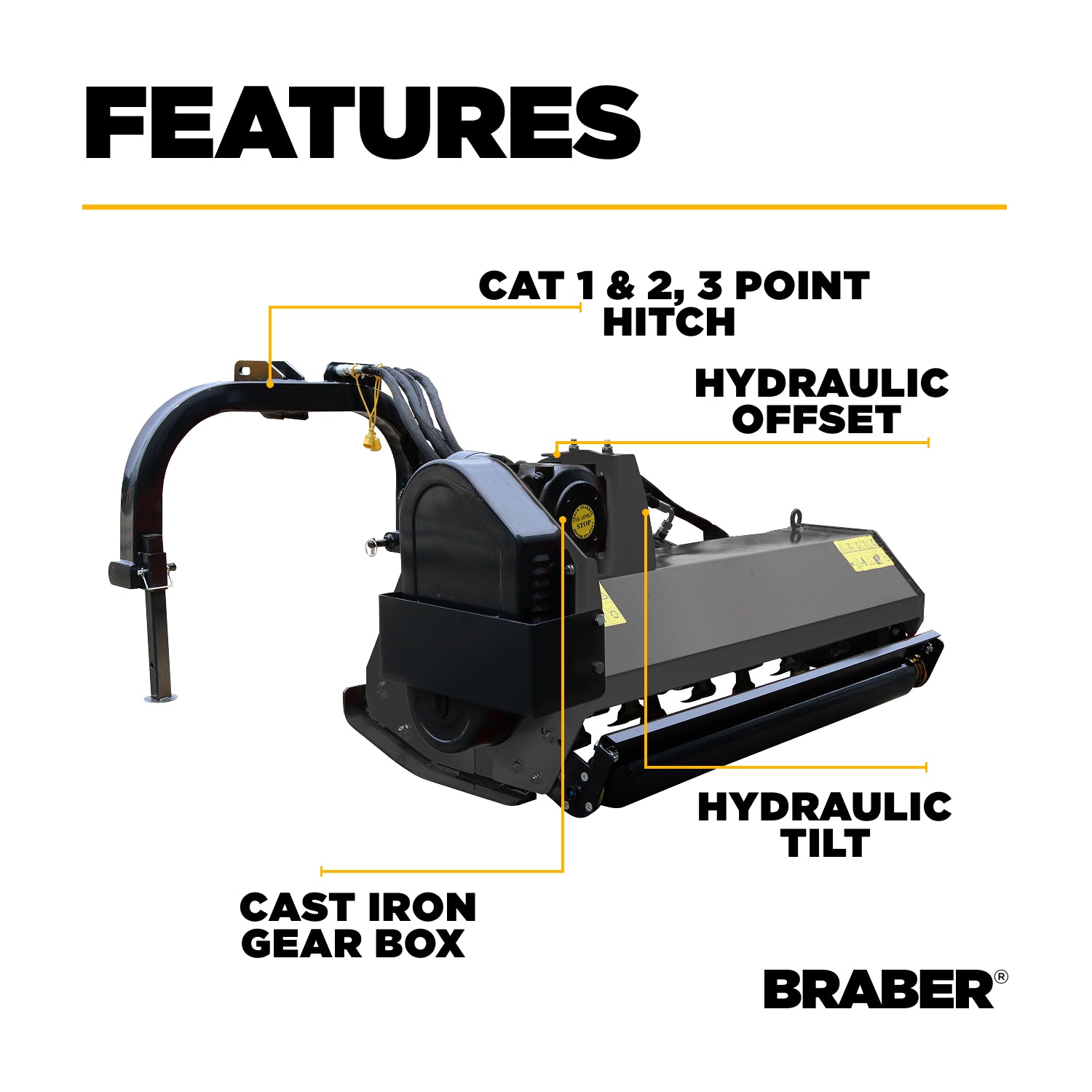

Category 1 3-Point Hitch, 540 PTO, Cast Iron Gearbox

The BE-AGL125F mounts and powers up directly from your tractor:

• Category 1, 3-point hitch for universal tractor integration
• 540 RPM PTO drive through a durable cast iron gearbox for high-torque power
• Matched to tractors from 20 to 40 HP

Hydraulic Tilt (+90° to −53°)

Hydraulic tilt pivots the head from +90° for vertical cutting of hedges and embankment faces to −53° for ditch bottoms and sloped banks — following the terrain for a clean cut on ground a fixed mower can't address.

Hydraulic Offset Hitch

A hydraulic offset hitch shifts the head laterally beyond the tractor's tire track, so you can mow ditches, verges, and fence lines while keeping the tractor on stable ground.

20 Hammers for Industrial-Grade Mulching

The flail head is fitted with 20 hammers for mulching grass, weeds, and light brush. As a flail-type head, it throws cuttings down rather than out, for a cleaner, more contained finish. (Optional grass knives are available for a finer cut.)

Full-Width Rear Roller

A full-width rear roller gauges a consistent cutting height across the head and protects the turf, while helping the head follow ground contours.

Built for Ditch Banks, Verges, and Slopes

With its reach and articulation, the BE-AGL125F is suited for:

• Mowing ditch banks, canal banks, and embankments
• Maintaining road verges and shoulders from the safety of level ground
• Trimming hedges and vertical faces
• Cutting sloped ground beyond the tractor's reach
• Clearing grass, vegetable residue, bushes, and pruning waste in orchards and vineyards

Warranty

The BE-AGL125F is backed by Braber Equipment's limited warranty, and the gearbox carries a 6-year warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 1, 3-Point Hitch
• Drive: 540 RPM PTO, Cast Iron Gearbox
• Power Requirement: 20–40 HP Tractor
• Working Width: 50"
• Blades: 20 Hammers (Grass Knives Optional)
• Hydraulic Tilt: +90° to −53°
• Offset: Hydraulic Offset Hitch
• Rear Roller: Full-Width
• Weight: 695 lbs
• SKU: BE-AGL125F
• Brand: Braber Equipment

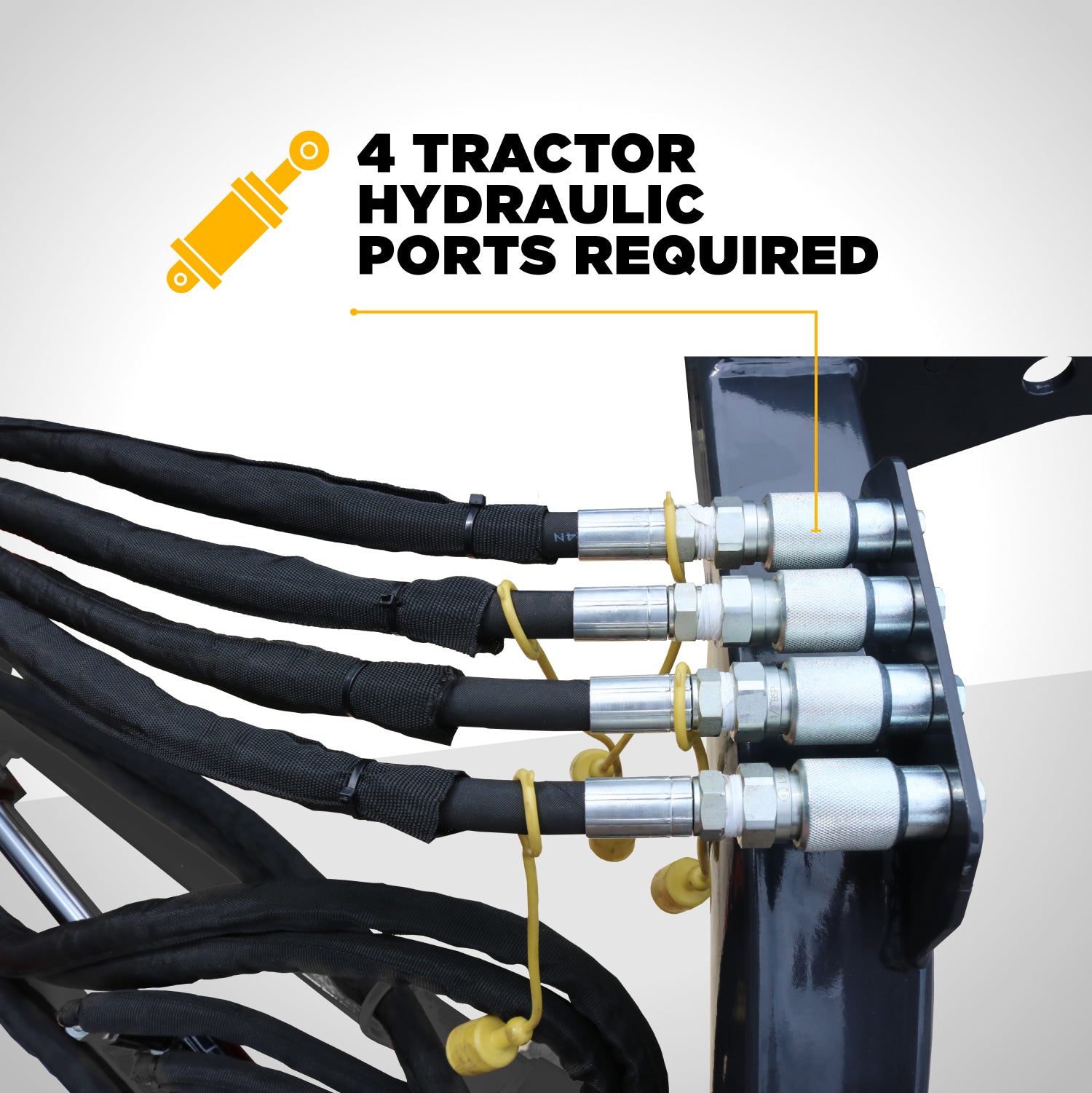

Note: Hydraulic tilt and offset functions require tractor hydraulic remotes — confirm the number of ports needed with your dealer. Performance varies with material type, density, and ground conditions, as well as available tractor horsepower. Never operate without guards in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Reach and Articulation — Built by Braber

The Braber BE-AGL125F combines a Category 1 3-point hitch, 540 PTO cast iron gearbox, hydraulic tilt and offset, and a 20-hammer flail head into one capable offset boom mower. For cutting ditch banks, verges, slopes, and hedges beyond the tractor's reach, the BE-AGL125F gets there.

BE-AGL125F — 50" 3-Point Offset Boom Mower with Category 1 Hitch, Hydraulic Tilt & Offset, and 20 Hammers.
