78" 3-Point Offset Boom Ditch Mower with Category 2 Hitch — Hydraulic Tilt & Offset, 20 Large Hammers

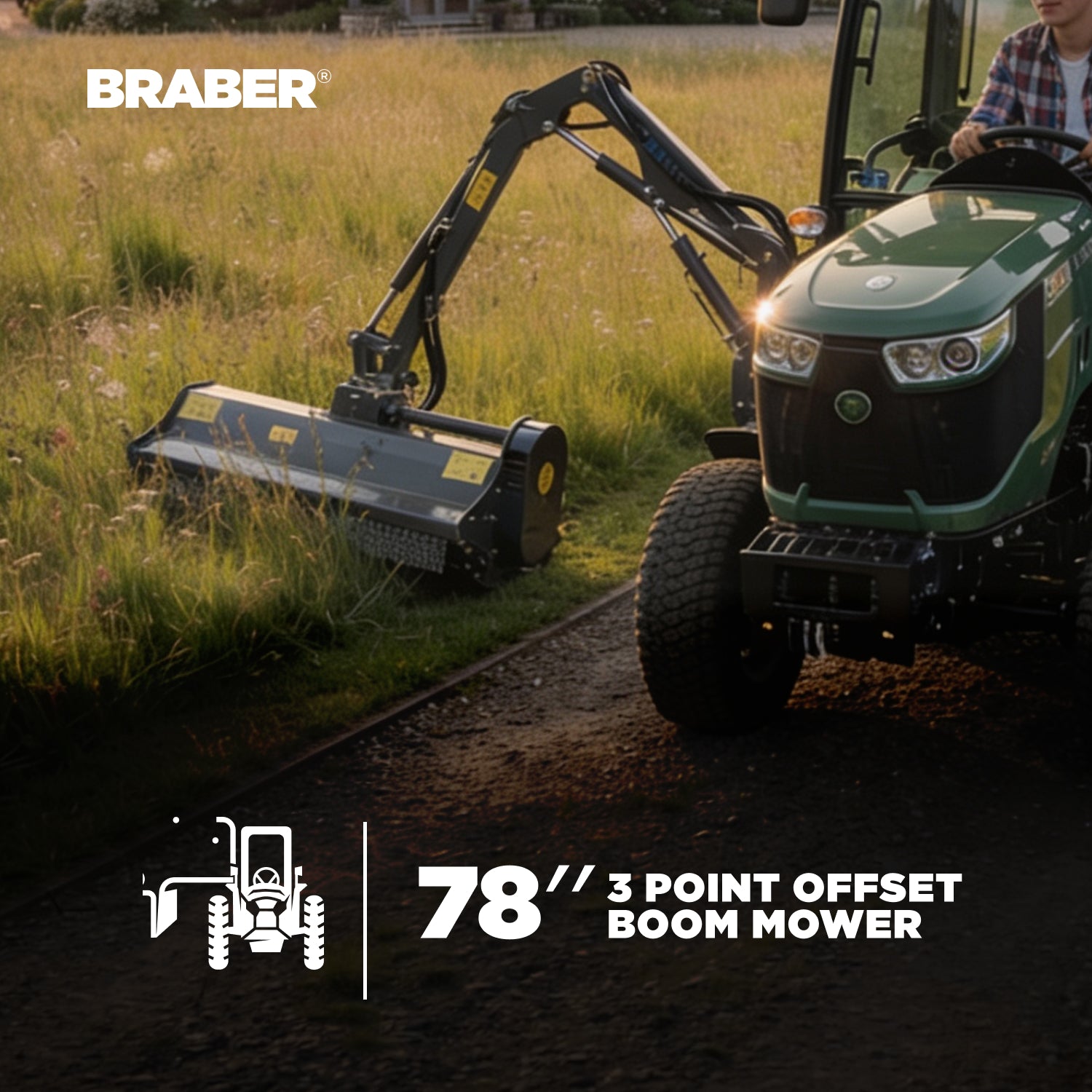

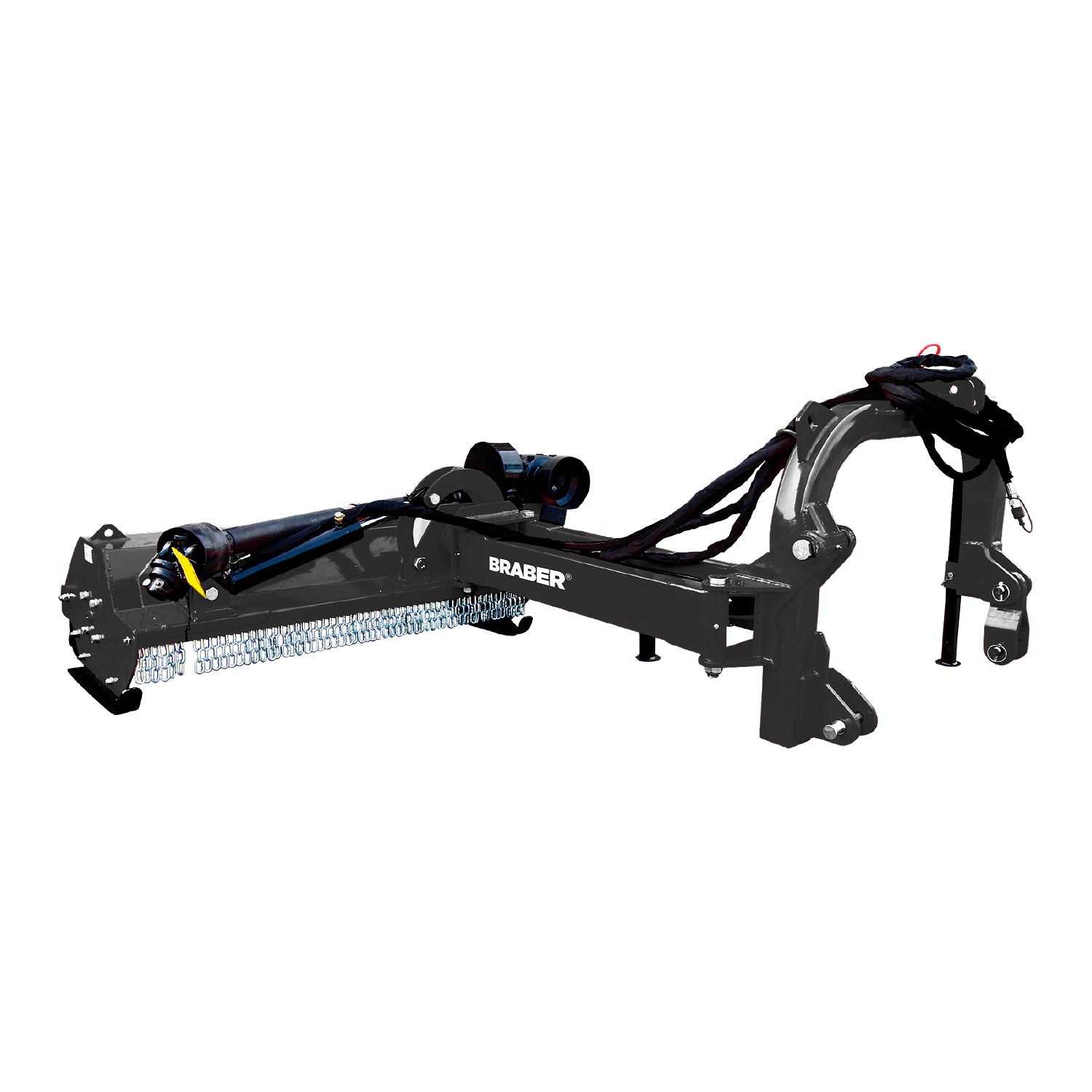

The Braber BE-AGF200 is a heavy-duty 78" offset boom ditch mower built to cut where a conventional mower can't reach — ditch banks, road verges, steep slopes, and hedges — on a scale that matches high-horsepower tractors. Mounting to a Category 2 3-point hitch and driven by a 540 RPM PTO, its flail head carries 20 large hammers for industrial-grade mulching and articulates on a hydraulic boom to work off to the side of the tractor. It's rated for heavy utility tractors from 80 to 120 HP.

A hydraulic offset hitch extends the head well beyond the tractor's footprint, hydraulic tilt from +90° to −65° pivots the head for vertical and steep-slope cutting, and a full-width rear roller with adjustable skid shoes holds a consistent cutting height and protects the ground.

Maximum Reach for Ditch and Verge Work

A boom mower earns its keep by reaching terrain the tractor can't safely drive on. The BE-AGF200's hydraulic offset hitch slides the flail head out beyond the tractor's footprint, so you can mow a ditch, embankment, or verge while the tractor stays on level ground — and its hydraulic tilt swings the head from +90° up (for hedge faces and bank tops) all the way to −65° down (for steep ditch bottoms and slopes), an even steeper reach than lighter boom mowers. The flail head's 20 large hammers shred grass, weeds, brush, and pruning waste up to 1" thick, throwing the cuttings down rather than out to the side for a clean, contained finish along roadsides and property edges.

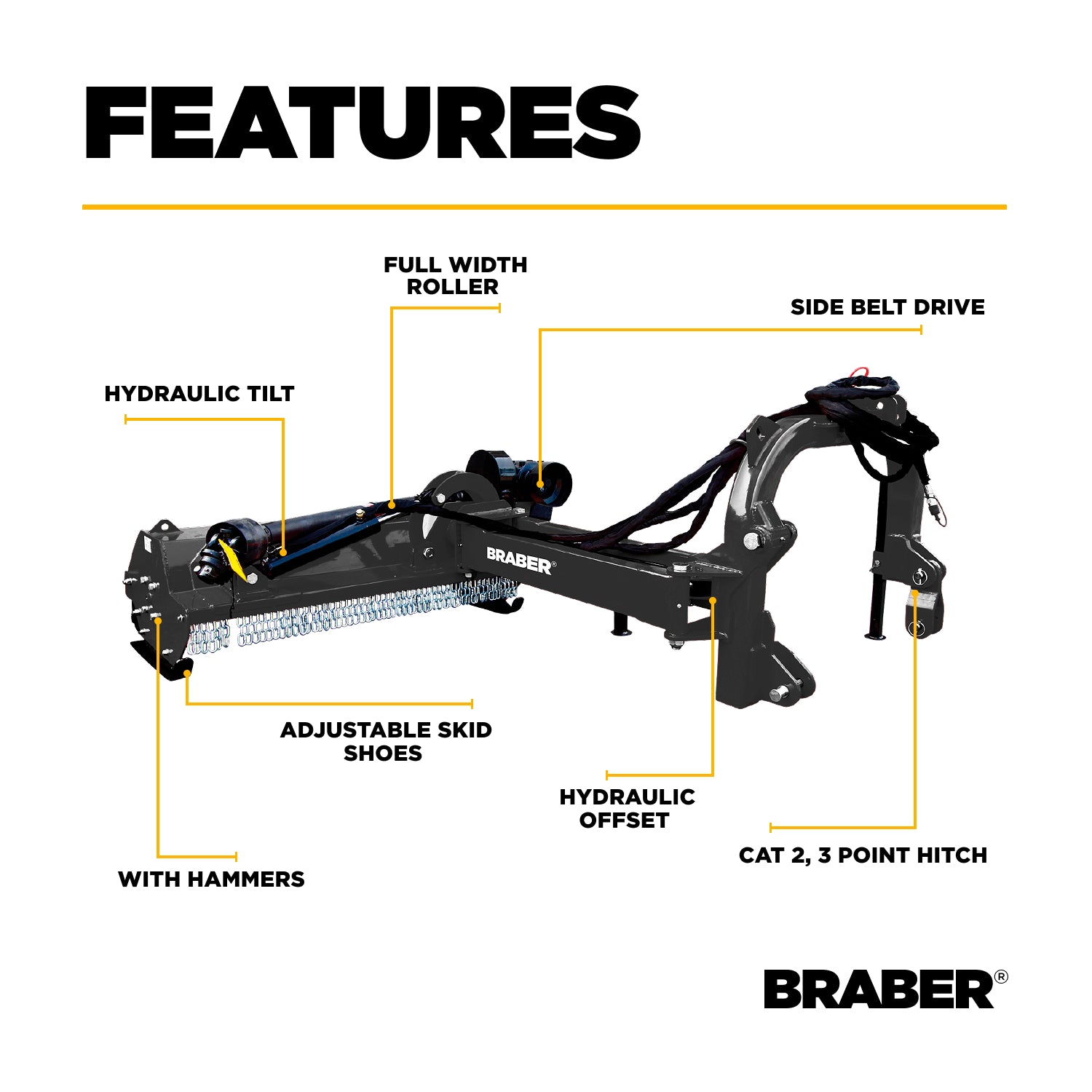

Features

Category 2 3-Point Hitch and 540 PTO

The BE-AGF200 mounts and powers up directly from your tractor:

• Category 2, 3-point hitch for high-horsepower tractor integration
• 540 RPM PTO drive
• Rated for heavy utility tractors from 80 to 120 HP

Hydraulic Tilt (+90° to −65°)

Hydraulic tilt pivots the head from +90° for vertical cutting of hedges and bank tops to −65° for steep ditch bottoms and slopes — following even demanding terrain for a clean cut.

Hydraulic Offset Hitch

A hydraulic offset hitch shifts the head laterally for maximum reach beyond the tractor's footprint, so you can mow ditches, verges, and fence lines while keeping the tractor on stable ground.

20 Large Hammers for Industrial-Grade Mulching

The flail head is fitted with 20 large hammers for heavy-duty mulching of grass, weeds, brush, and pruning waste. As a flail-type head, it throws cuttings down rather than out, for a cleaner, more contained finish.

Full-Width Rear Roller and Adjustable Skid Shoes

A full-width rear roller and adjustable skid shoes gauge a consistent cutting height and protect the ground, while helping the head follow contours.

Side Belt Drive with Protective Shield

A side belt drive transfers power smoothly to the rotor, protected by a shield that guards the drive system from debris damage for dependable operation.

Built for Large-Scale Ditch, Verge, and Slope Maintenance

With maximum reach and heavy-duty cutting, the BE-AGF200 is suited for:

• Mowing ditch banks, canal banks, and steep embankments
• Maintaining road verges and shoulders from the safety of level ground
• Trimming hedges and vertical faces
• Clearing grass, brush, and pruning waste up to 1" thick
• Large-scale roadside, municipal, and agricultural edge maintenance

Warranty

The BE-AGF200 is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Mounting: Category 2, 3-Point Hitch
• Drive: 540 RPM PTO, Side Belt Drive
• Power Requirement: 80–120 HP Tractor
• Working Width: 78"
• Blades: 20 Large Hammers
• Hydraulic Tilt: +90° to −65°
• Offset: Hydraulic Offset Hitch
• Stability: Full-Width Rear Roller, Adjustable Skid Shoes
• Cutting Capacity: Up to 1" Thick Material
• Weight: 1,764 lbs
• SKU: BE-AGF200
• Brand: Braber Equipment

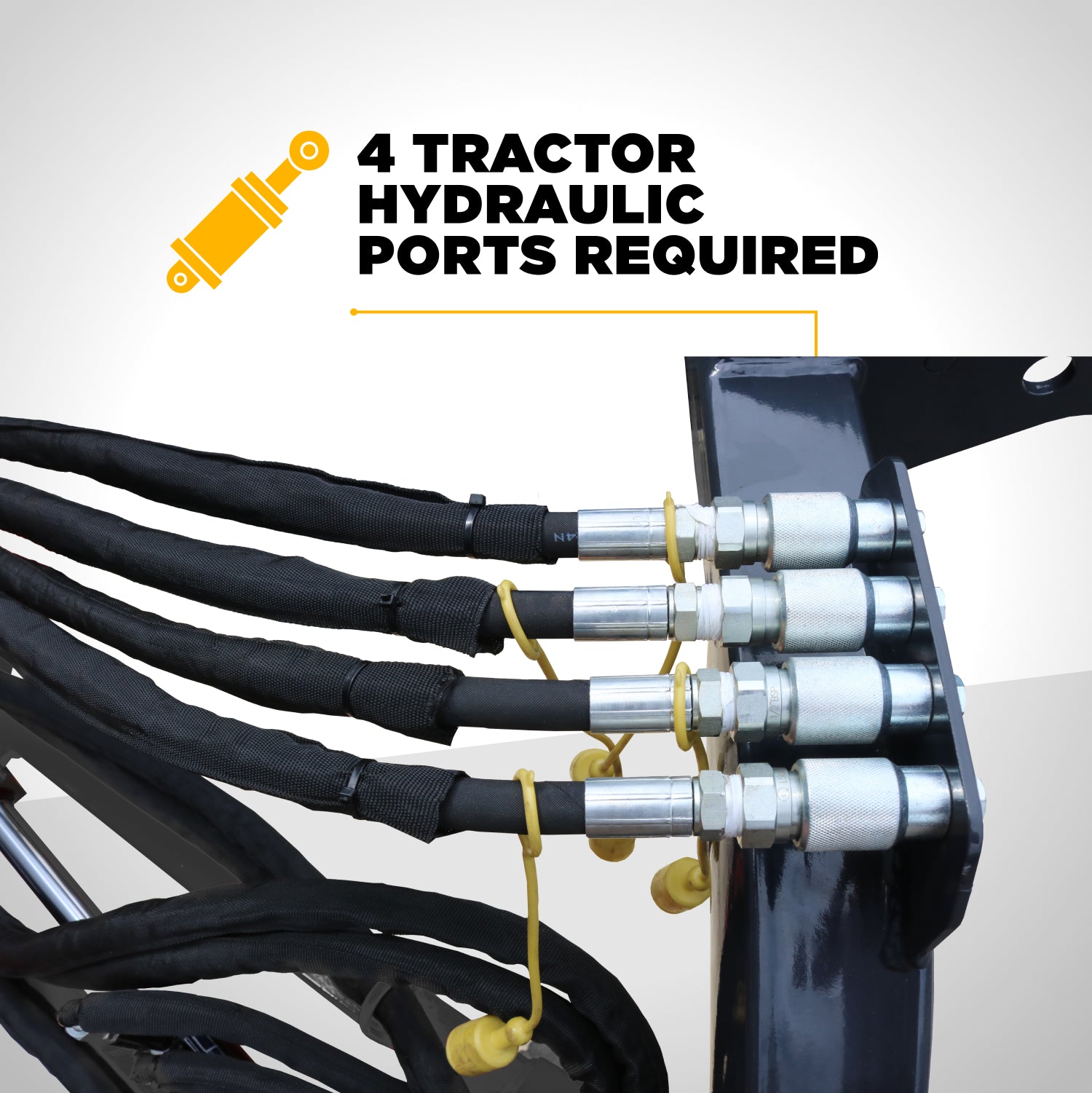

Note: Hydraulic tilt and offset functions require tractor hydraulic remotes — this mower requires 4 tractor hydraulic ports. Cutting capacity varies with tractor horsepower and material density. Performance varies with material type and ground conditions. Never operate without guards in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Maximum Reach and Power — Built by Braber

The Braber BE-AGF200 combines a Category 2 3-point hitch, 540 PTO side belt drive, hydraulic tilt and offset, and a 20-hammer flail head into one heavy-duty 78" offset boom ditch mower. For large-scale ditch, verge, and slope maintenance beyond the tractor's reach, the BE-AGF200 delivers.

BE-AGF200 — 78" 3-Point Offset Boom Ditch Mower with Category 2 Hitch, Hydraulic Tilt & Offset, and 20 Large Hammers.
