23-Bushel Ground-Driven Manure Spreader — 29 ft³, 2-Wheel Tow-Behind

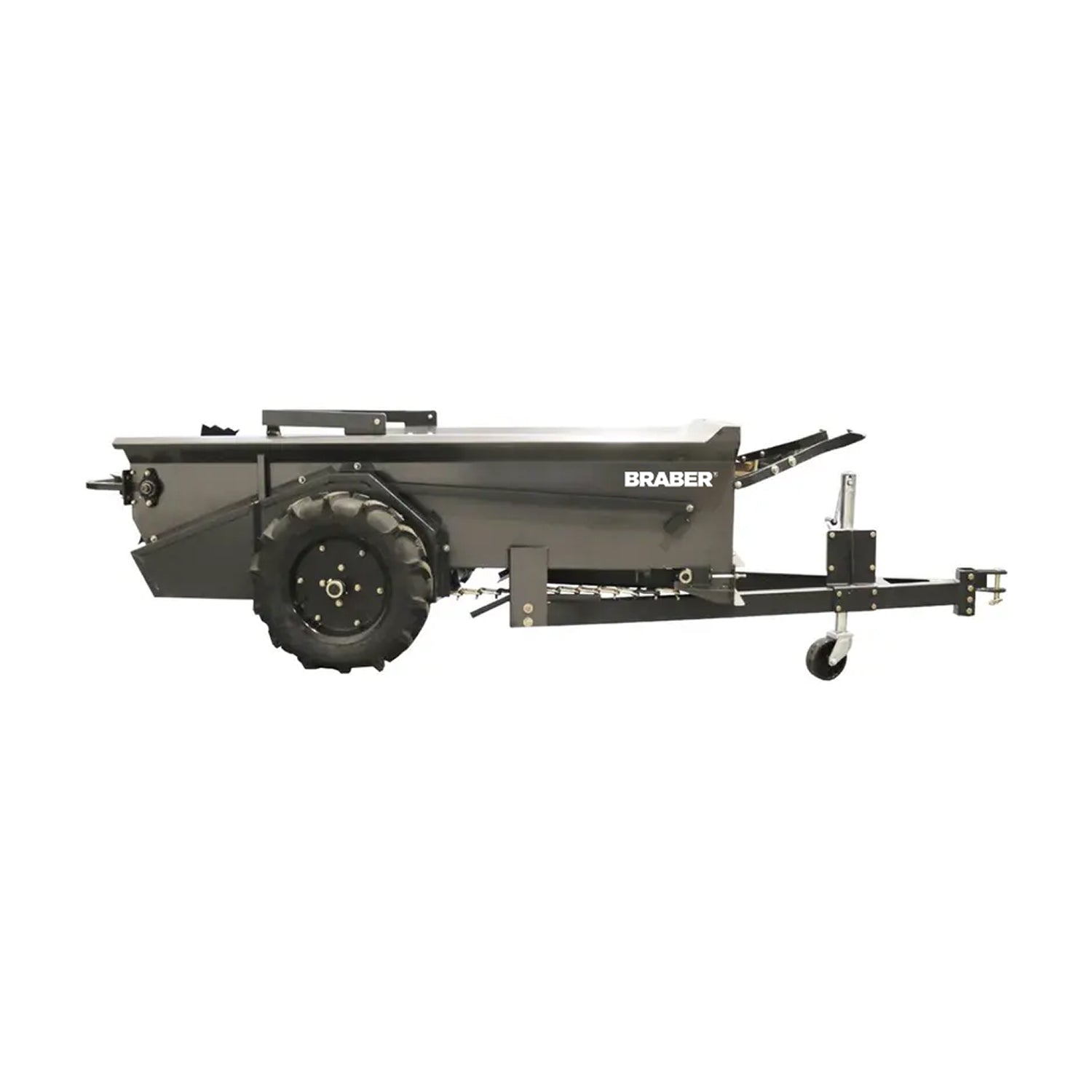

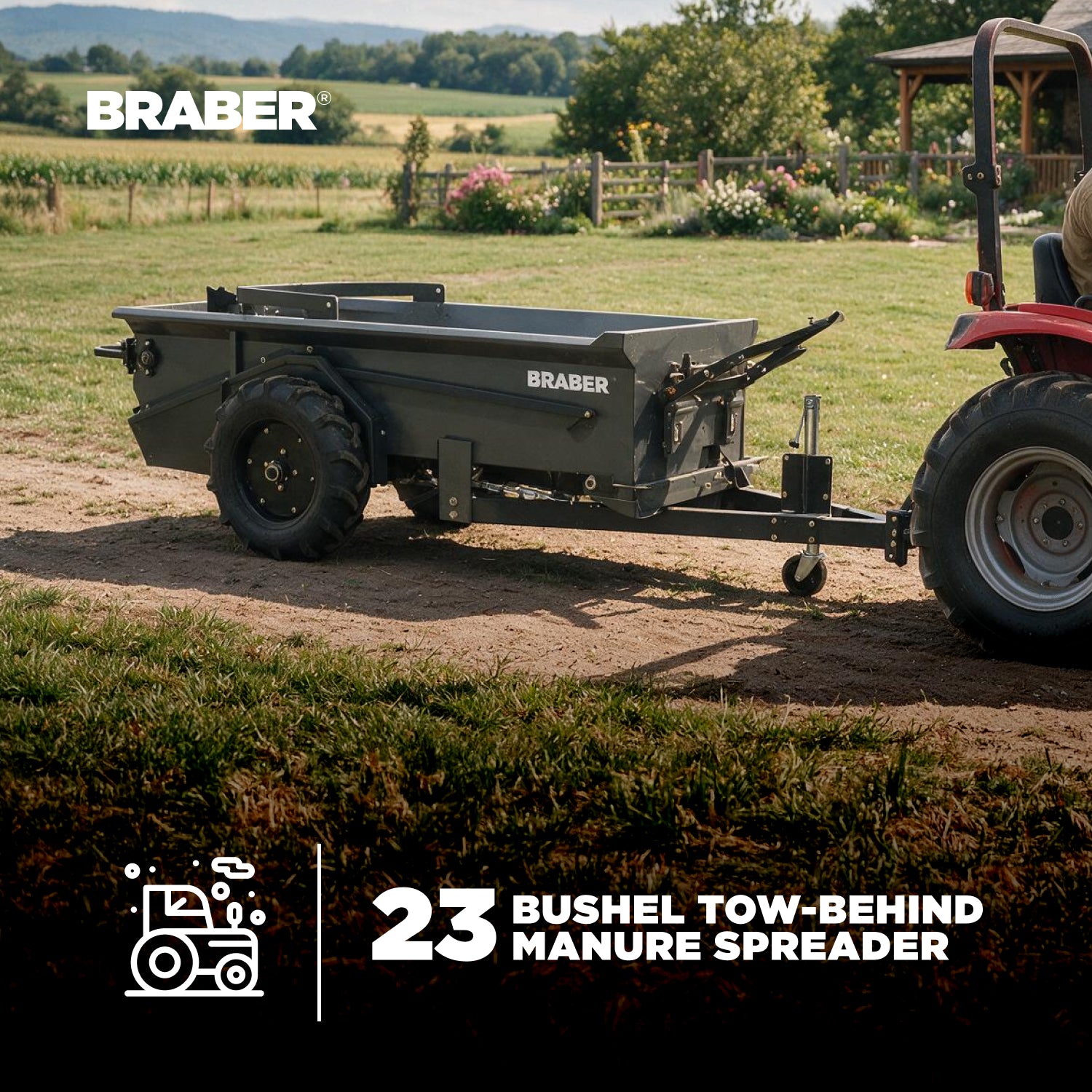

The Braber BE-23MS is a 23-bushel (29 ft³) ground-driven manure spreader built to haul and broadcast manure, compost, and bedding across fields, pastures, and gardens. Its 2-wheel ground-driven design needs no PTO — just tow it behind an ATV, UTV, compact tractor, or lawn tractor, and the wheels do the work. A low 27.5" loading height makes filling easy, and fully welded 12-gauge steel construction with industrial powder coating stands up to the job for the long term.

Load, Tow, and Spread — No PTO Needed

The BE-23MS turns a messy, manual chore into a quick pass across the field. Load it at the barn or stable, tow it out, and as the ground-driven wheels turn, they drive the apron chain — a 5/16" gold zinc-plated T-rod chain running over a high-density 3/4" poly vinyl apron bed — to feed material steadily toward the rear. There, an 18" steel beater with 8 replaceable paddles breaks up the load and flings it out in an even, thorough spread. An adjustable chain tensioner keeps the feed consistent, and because the whole system runs off the wheels, there's no PTO required — making it ideal for ATVs, UTVs, and other vehicles without one.

Features

Fully Welded 12-Gauge Steel Construction

Fully welded 12-gauge steel with an industrial powder coating gives the BE-23MS lasting durability against the elements and corrosive loads.

29 ft³ Capacity, Low Loading Height

A 23-bushel / 29 ft³ capacity covers large areas with fewer trips, and a low 27.5" loading height makes filling by hand, fork, or loader easy.

2-Wheel Ground Drive with Chain Tensioner

2-wheel ground-driven operation runs the spreader off the wheels — no PTO needed — while an adjustable chain tensioner keeps the apron feed reliable and consistent.

18" Steel Beater with 8 Paddles

An 18" steel beater with 8 replaceable beater paddles breaks up material and spreads it evenly and thoroughly.

Poly Vinyl Apron Bed and T-Rod Chain

A high-density 3/4" poly vinyl apron bed and 5/16" gold zinc-plated T-rod apron chain feed material smoothly and resist corrosion for a long service life.

Greaseable Wheel Hubs

Greaseable wheel hubs make upkeep simple and keep the spreader rolling for the long haul.

Swivel Jack and Adjustable Hitch

A swivel jack rated for 2,000 lbs and an adjustable hitch make the spreader easy to tow, position, and park.

Transport End Gate

A transport end gate contains material during hauling, so the load stays put until you're ready to spread.

Built for Manure and Compost Handling

With ground-driven simplicity and even spreading, the BE-23MS is suited for:

• Spreading manure, compost, and bedding on fields and pastures
• Cleaning out barns, stables, and paddocks
• Fertilizing gardens and small acreage
• Use behind ATVs, UTVs, compact tractors, and lawn tractors without a PTO

Warranty

The BE-23MS is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: Ground-Driven Manure Spreader (Tow-Behind)
• Capacity: 23 Bushel / 29 ft³
• Loading Height: 27.5"
• Drive: 2-Wheel Ground Driven, Adjustable Chain Tensioner
• Beater: 18" Steel, 8 Replaceable Paddles
• Apron Bed: 3/4" High-Density Poly Vinyl
• Apron Chain: 5/16" Gold Zinc-Plated T-Rod
• Construction: Fully Welded 12-Gauge Steel, Industrial Powder Coat
• Wheel Hubs: Greaseable
• Jack: Swivel, 2,000 lb Rated
• Hitch: Adjustable
• End Gate: Transport End Gate
• Dimensions: 77" L × 28" W × 16.7" H
• Weight: 400 lbs (with tires)
• SKU: BE-23MS
• Brand: Braber Equipment

Note: Spread rate varies with material type, moisture, and towing speed. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Ground-Driven Spreading — Built by Braber

The Braber BE-23MS combines fully welded 12-gauge steel construction, a 29 ft³ capacity, 2-wheel ground drive, and an 18" beater with replaceable paddles into one capable manure spreader. For hauling and spreading manure and compost without a PTO, the BE-23MS gets the job done behind almost any vehicle.

BE-23MS — 23-Bushel Ground-Driven Manure Spreader with 29 ft³ Capacity and 2-Wheel Tow-Behind Design.
