Installation On Diaphragm Pumps

The VDR50 Mounting Kit is a top-notch hardware solution that makes installing VDR50 series control units on diaphragm pumps a cinch. You'll get all the specific brackets, adapters, and fasteners you need to mount those units securely and safely. By putting this mounting hardware to work, you can rest assured that your pressure-regulating valves and gauges will be sitting pretty - right where you need them to be - even when the pump is bouncing around in the field.

Product Highlight On Our Website

Our VDR50 Mounting Kit makes setting up your advanced fluid management system much easier. It creates a rock-solid connection between the pump manifold and the control unit - ensuring that your regulation system stays right where it needs to be, even when you're pushing 34.3 GPM and 725 PSI.

What You Can Expect From The Kit

• Universal Fit: These mounting components have been custom-designed to work seamlessly with AR and Hypro VDR50 control units - every single time.
• Mounting Flexibility: You can mount it right on the pump or stash it somewhere remote, depending on your system setup.
• Pressure Handling: Engineered to withstand the kind of hydraulic stress that can knock other rigging to pieces.
• Rust Resistance: The components are fully treated to resist damage from agricultural chemicals and harsh elements that can be hard on equipment.

Hardware Specs and Control Unit Features

• Compatible Units: Any VDR50 Series Control Unit
• Pipe Support: We support 3/4" NPT and 1/2" HB for your options.
• Maximum System Pressure: I'm talking 725 PSI (50 Bar) max.

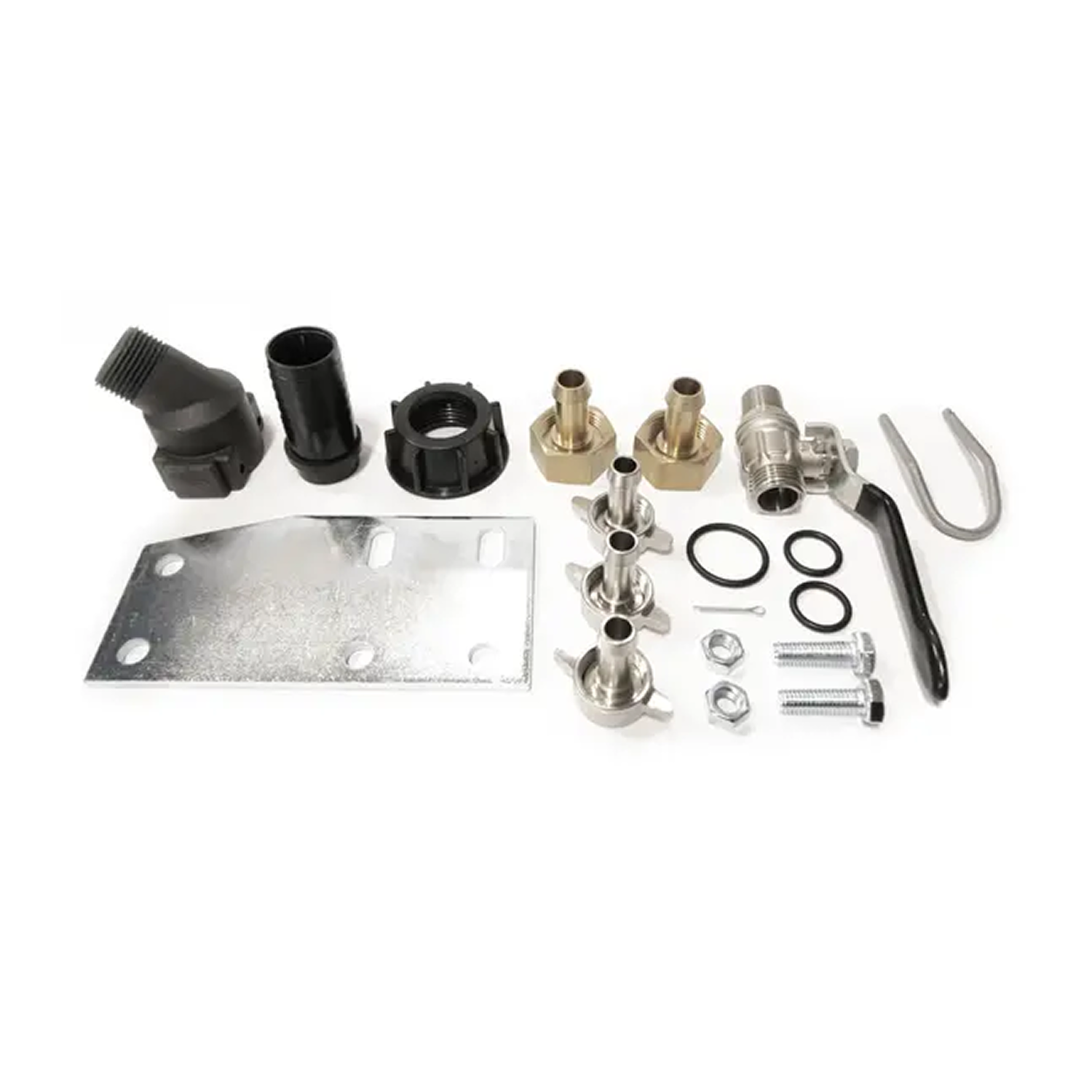

• What You Get In The Package: We'll send you the mounting brackets, O-rings, retainer clips, and all the nuts and bolts you need to get the job done.

Installation and Performance

Setting it all up is pretty straightforward - you just need to use some basic tools to secure the bracket and manifold adapters. The kit comes with O-rings that'll keep those pressure points from leaking and a solid bracket that keeps the control lever and gauge still firmly in place. This thing is the foundation of a rock-solid sprayer setup, giving you confidence that your VDR50 control unit will keep working like a charm for a long, long time.
