High-Performance Pressure Regulator - Built for the Toughest Jobs

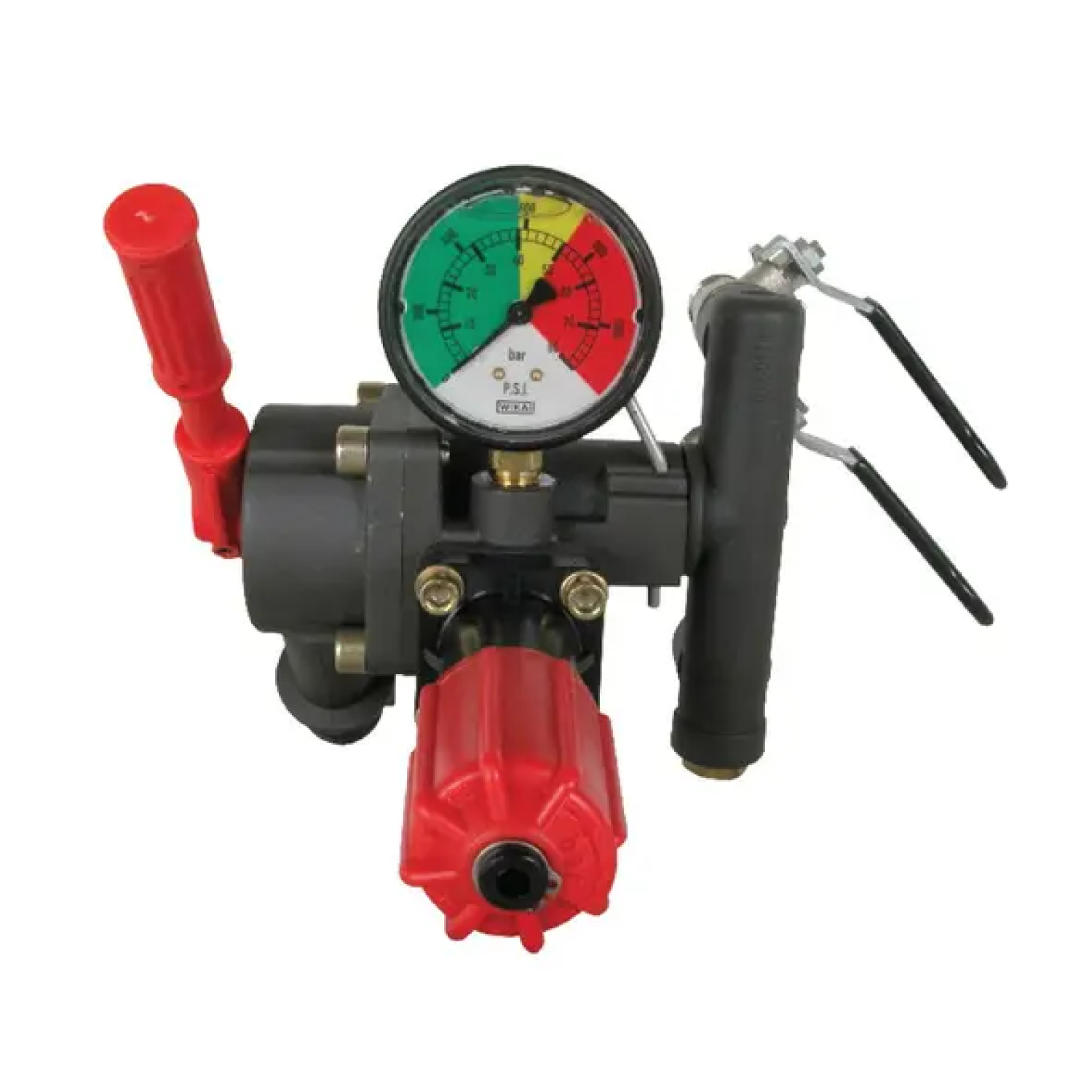

The Annovi Reverberi VDR50 Control Unit is a seriously capable high-performance pressure regulator, built specifically for pro-grade diaphragm pumps. The product code 9910VDR50 makes ordering a snap - just knowing the part number you need. This is a control center that lets you get a super accurate read on working pressure for the Annovi Reverberi AR813 and AR1064 pump models - and it's a direct fit for the Hypro 9910-D813 and 9910-D1064 pump models too.

It's built with top-notch stainless steel components, so it's got the durability to withstand the toughest agricultural chemicals and still keep spraying out a consistent pattern across your whole field. The VDR50 control valve comes with a pressure gauge, a bypass lever, and multiple outlets as standard, so you get all the control you need and more. Its sturdy build can handle flow rates of up to 34.3 GPM and pressures of up to 725 PSI, making it an absolute must-have for any high-output spraying operation that needs both power and precision.

Product Spotlight - The Heart of Your High-Pressure System

The VDR50 acts as the central control point for your high-pressure spraying system - giving you a single point to control flow and pressure. And with its heavy-duty build, you can bet that pro operators will be able to maintain exactly the right system parameters all day long.

Product Benefits and Features

• Precision Pressure Control: We've got a super advanced pressure relief valve that lets you dial in the perfect pressure for a consistent application rate
• Dual Control Outlets: Two individual shut-offs, so you can run multiple spray lines or isolate sections as needed - super flexible
• One Complete Bypass Lever: As standard - this gives you quick and easy switching between bypass and regulated flow modes
• Totally Reliable: Built with stainless steel internals to last you a long time and resist all kinds of chemical corrosion
• Handles the Big Jobs: Capable of dealing with up to 34.3 GPM - perfect for big industrial and agricultural diaphragm pumps

Key Features and Specs

• Max Flow Rate: 34.3 GPM - that's a lot of liquid!
• Maximum Pressure: 725 PSI (50 Bar) - built to take the pressure
• Port Configuration: Two 1/2” HB Outlets and one 1” HB Bypass - simple to connect and control
• Pressure Relief Valve: Keeps things safe by letting excess pressure pass through without messing up your pressure regulation
• Temperature Rating: will take temperatures up to 140° F

Manufacturers and Apps

The Hypro VDR50 Control Unit is a world-class working-pressure regulating valve, built by the guys at Hypro, who've been doing high-pressure diaphragm pump tech for years. They really know their stuff and have built the VDR50 to deliver top-notch pressure regulation and reliable performance even in the toughest environments. It's a direct fit for the Hypro D813 diaphragm pump and can handle flow rates up to 35 gallons per minute and working pressures up to 725 psi.

One of the key features of the VDR50 is the integrated glycerine bath pressure gauge, which provides super-accurate, real-time readings of system pressure. There's also a complete bypass lever, so you can quickly divert flow and achieve safe, efficient pressure relief when you need it. For added flexibility, the unit comes with two 1/2” HB outlets with individual shut-offs, a 1” HB bypass, and you can add an additional ball valve (Part Number 9910-130491) if you need to - making it easy to tailor the system to your needs.

Of course, there are other top brands like Annovi Reverberi that also make excellent control units - like the Annovi Reverberi VDR50 Control Unit / Pressure Regulator, for example. These are built to manage working pressure and distribution of sprayed liquids in all sorts of settings, from agriculture to construction and industrial manufacturing. They're built to last with their robust construction and advanced pressure-regulating valve tech, making them perfect for high-pressure, high-flow jobs that need a bit of TLC.

Whether you're spraying crops, cleaning up with industrial cleaning gear, or managing fluid distribution in a factory, the VDR50 control unit is built to deliver consistent performance and a long life. It's a high-pressure diaphragm design with a reliable pressure gauge and flexible mounting options, so you can keep precise control over sprayed liquids, get the job done efficiently, and keep your gear in top shape. If you need a high-performance pressure regulator that can take the heat and handle whatever you throw at it, the Hypro VDR50 Control Unit is a proven winner.

Installation and Reliability of Pressure Gauge

The VDR50 is built with one thing in mind - a hassle-free installation that won't leave you scrambling with leak-prone connections. Fortunately, standard hose-barb fittings make hooking up to AR and Hypro pumps a breeze. Coming in at a manageable 5 pounds and measuring 20.3 x 12.7 x 15.2 cm, this thing is solidly built to give your equipment a sturdy foundation. We also threw in some nice individual shut-offs on each outlet, so even if one line goes down, you can still tweak the rest of your spray distribution to keep everything running smoothly, no matter the time of year.
