Walterscheid W2480 CV PTO Driveline — 64", 1-3/8" 6-Spline, 53 HP

The Braber 69.999.001 is a Walterscheid W2480 Series PTO driveline that transfers tractor power to an implement for reliable, general-purpose operation. Its standout feature is a 6-spline 1-3/8" constant-velocity (CV) tractor connection for smooth running through wide operating angles, paired with a 6-spline 1-3/8" quick-disconnect implement connection for fast, tool-free hookup. Rated for 53 HP at 540 RPM with a 64" collapsed length, it's a dependable driveline for a wide range of 540 RPM implements.

Smooth Power Through Wide Angles

A PTO driveline is the telescoping, jointed shaft that carries power from the tractor's PTO to the implement's gearbox. Standard drivelines use cross (Cardan) joints, which introduce slight speed fluctuation when the shaft runs at a sharp angle — the kind you get on tight turns or with articulating implements. This Walterscheid driveline instead uses a constant-velocity (CV) joint at the tractor end, which holds output speed steady and smooth even through wide operating angles. The result is less vibration, less wear, and more reliable power delivery when the geometry gets demanding.

Features

Walterscheid W2480 Series

A Walterscheid W2480 Series driveline delivers dependable, general-purpose power transfer.

Constant-Velocity (CV) Tractor Connection

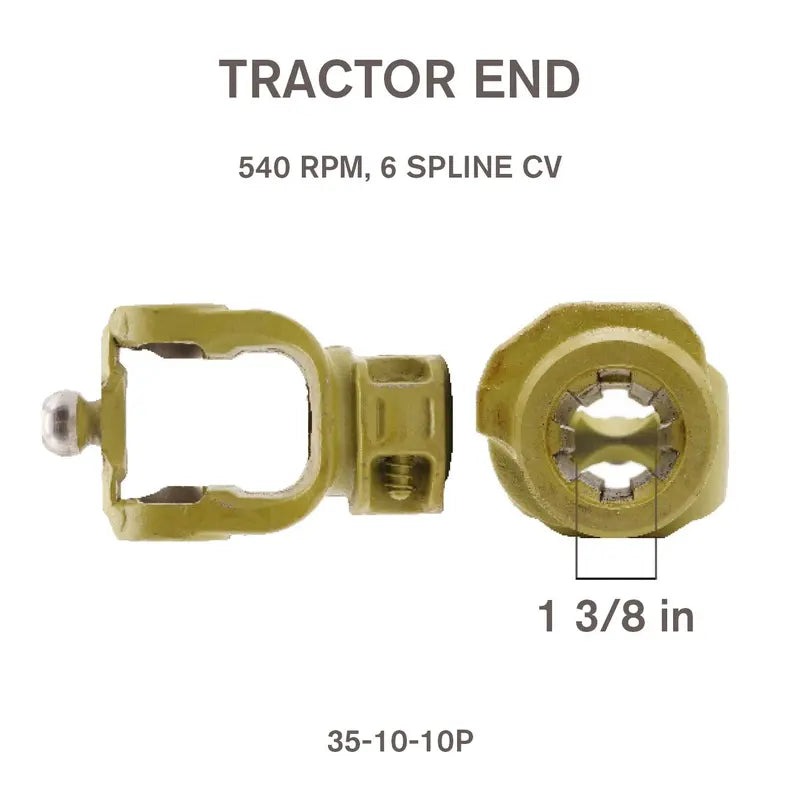

A 6-spline 1-3/8" constant-velocity (CV) tractor connection runs smoothly through wide operating angles, reducing vibration and wear.

Quick-Disconnect Implement Connection

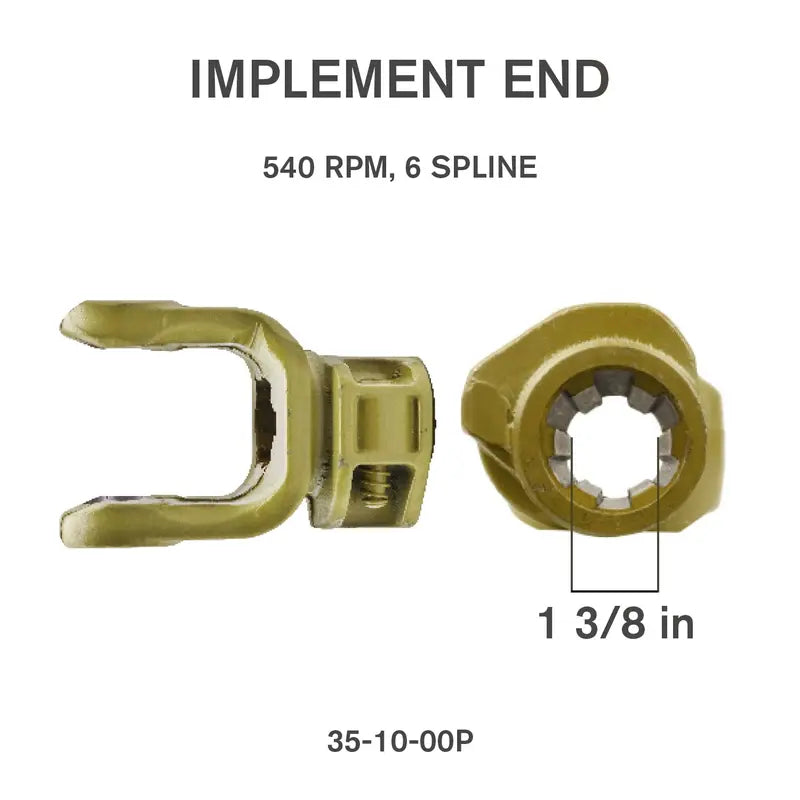

A 6-spline 1-3/8" quick-disconnect implement connection makes hookup fast and tool-free.

Lemon (Star) Profile Shafting

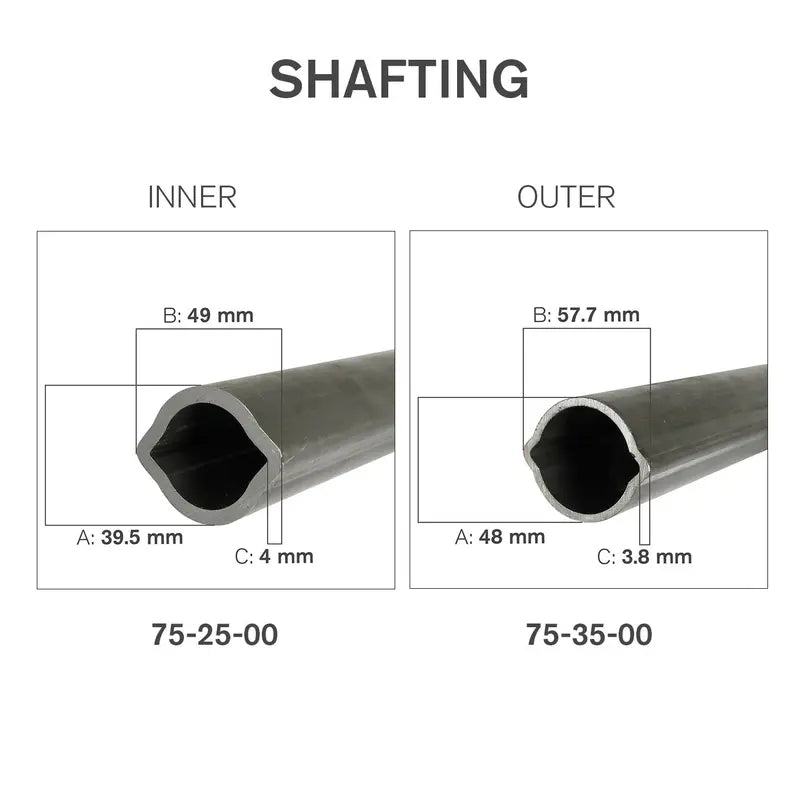

Lemon (star) profile shafting — a 49 mm inner tube (39.5 mm minor, 4 mm wall) and 57.7 mm outer tube (48 mm minor, 3.8 mm wall) — telescopes smoothly while transmitting torque securely.

53 HP Rating

Rated for 53 HP at 540 RPM, the driveline suits a wide range of general-purpose implements.

64" Collapsed Length

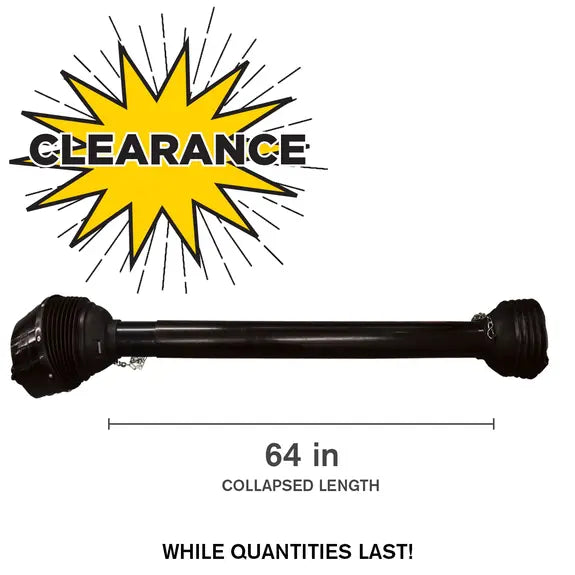

A 64" collapsed length suits wider tractor-to-implement spacing, extending and retracting through operation.

Built for General-Purpose 540 RPM Work

With its CV joint and dependable rating, the 69.999.001 is suited for:

• A wide range of 540 RPM PTO-driven implements
• Applications with wide or changing driveline operating angles
• Tight-turning or articulating setups where smooth power delivery matters
• General-purpose power transfer within its rating

Warranty

This PTO driveline is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: Constant-Velocity (CV) PTO Driveline
• Driveline Series: Walterscheid W2480 Series
• Tractor Connection: 6-Spline 1-3/8" Constant-Velocity (CV)
• Implement Connection: 6-Spline 1-3/8" Quick-Disconnect
• Shafting: Lemon (Star) Profile — 49 mm Inner (39.5 mm Minor, 4 mm Wall) / 57.7 mm Outer (48 mm Minor, 3.8 mm Wall)
• Power Rating: 53 HP at 540 RPM
• Collapsed Length: 64"
• SKU: 69.999.001
• Brand: Braber Equipment

Note: Confirm spline sizes, length, and speed compatibility for your tractor and implement before use. Always operate with the driveline guard in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Smooth, Reliable Power Transfer — Built by Braber

The Braber 69.999.001 brings the Walterscheid W2480 Series driveline together with a constant-velocity tractor joint, lemon-profile shafting, and quick-disconnect hookup into one 64" PTO shaft that runs smoothly even through wide angles. For general-purpose 540 RPM work, the 69.999.001 keeps the power flowing.

69.999.001 — Walterscheid W2480 CV PTO Driveline, 64", 1-3/8" 6-Spline, 53 HP.
