Series 4 Shear Bolt PTO Driveline — 1-3/8" 6-Spline, 35 HP

The Braber 69.888.400 is a Series 4 shear bolt PTO driveline that transfers tractor power to an implement while protecting the driveline from overload through a sacrificial shear bolt. Built on the BY-PY #4 Series for reliable power transfer, it features a 6-spline 1-3/8" quick-disconnect tractor connection, a 6-spline 1-3/8" shear bolt clutch implement connection, strong triangular-profile shafting, and a 35 HP at 540 RPM rating. It's a direct replacement for part 69.000.007.

Power Transfer With Shear Bolt Protection

A PTO driveline is the telescoping, universal-jointed shaft that carries power from the tractor's PTO to the implement's gearbox — and this one protects what's behind it with a shear bolt clutch. When an implement overloads or hits an obstruction, the sacrificial shear bolt is engineered to break, disconnecting the drive before the shock can damage the driveline, gearbox, or tractor PTO. Replacing a broken shear bolt is a quick, inexpensive job — so it's smart to keep spares on hand. Compared with a slip clutch, the shear bolt is a simpler, lower-cost form of overload protection.

Features

BY-PY #4 Series Driveline

A BY-PY #4 Series driveline delivers reliable power transfer sized for lighter-duty 540 RPM applications.

Shear Bolt Clutch

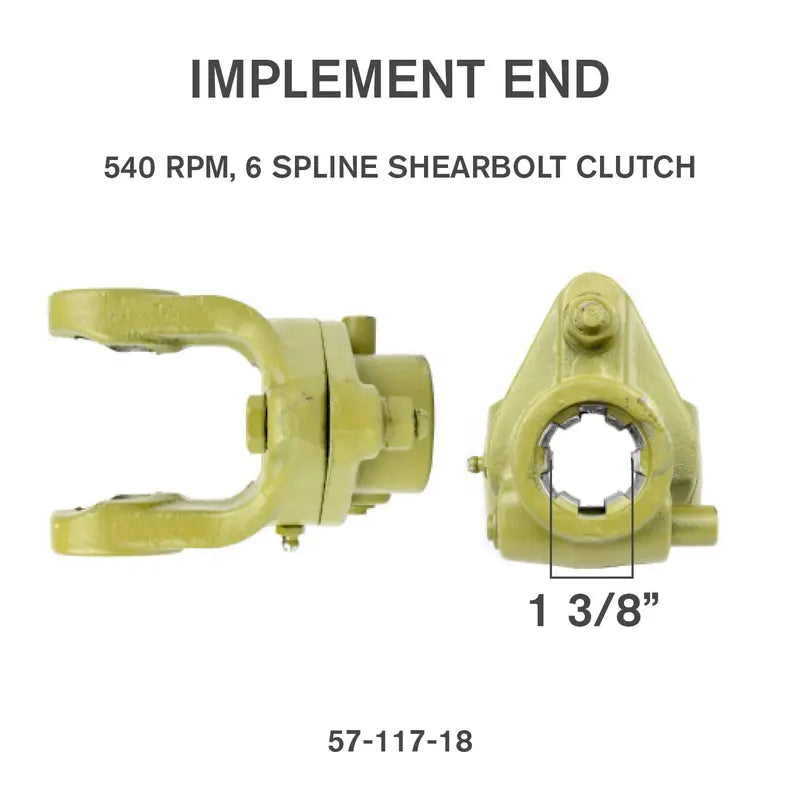

A 6-spline 1-3/8" shear bolt clutch implement connection provides overload protection through a sacrificial bolt that breaks under excess load to shield the driveline and gearbox.

Quick-Disconnect Tractor Connection

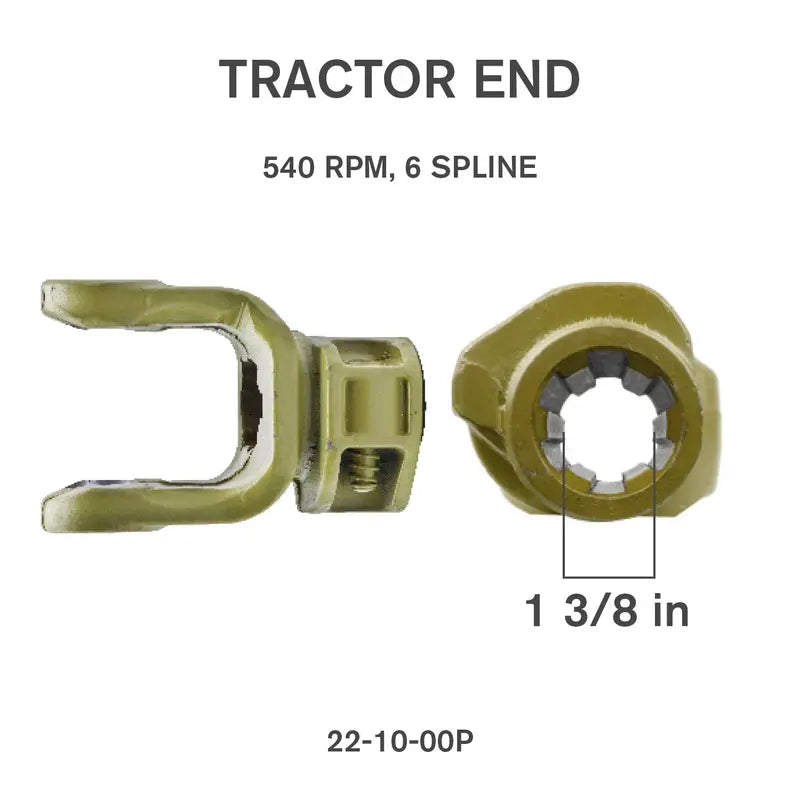

A 6-spline 1-3/8" quick-disconnect tractor connection makes hookup fast and tool-free.

Triangular-Profile Shafting

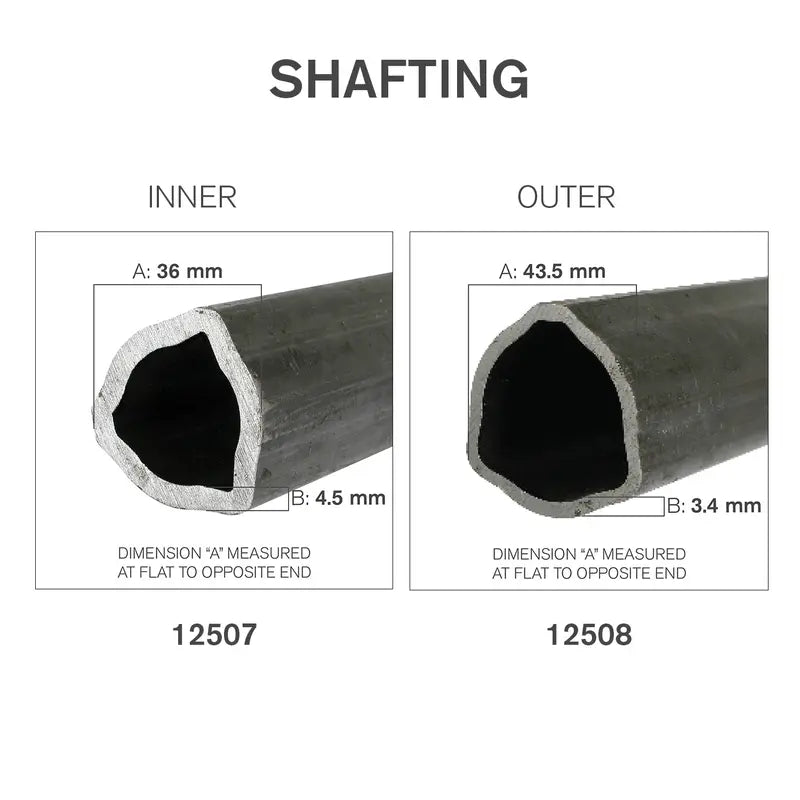

Triangular-profile shafting — a 36 mm inner tube (4.5 mm wall) and 43.5 mm outer tube (3.4 mm wall) — telescopes smoothly through the implement's travel while transmitting torque securely.

35 HP Rating

Rated for 35 HP at 540 RPM, the driveline suits lighter-duty implements.

54" Collapsed Length

A 54" collapsed length suits a range of tractor-to-implement spacing, extending and retracting through operation.

Built for 540 RPM Implements

With its shear-bolt protection and Series 4 rating, the 69.888.400 is suited for:

• 540 RPM rotary cutters
• Light tillers
• Other lighter-duty 540 RPM PTO-driven implements within its rating
• Replacing a worn or damaged 69.000.007 driveline

Warranty

This PTO driveline is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: Series 4 Shear Bolt PTO Driveline
• Driveline Series: BY-PY #4 Series
• Tractor Connection: 6-Spline 1-3/8" Quick-Disconnect
• Implement Connection: 6-Spline 1-3/8" Shear Bolt Clutch
• Shafting: Triangular Profile — 36 mm Inner (4.5 mm Wall) / 43.5 mm Outer (3.4 mm Wall)
• Power Rating: 35 HP at 540 RPM
• Collapsed Length: 54"
• Replaces: Part 69.000.007
• SKU: 69.888.400
• Brand: Braber Equipment

Note: Always replace with the correct shear bolt specified for the driveline — substituting a standard or higher-grade bolt defeats the overload protection and can cause serious damage or injury. Confirm spline sizes, length, and speed compatibility for your tractor and implement before use. Always operate with the driveline guard in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Reliable Power, Simple Protection — Built by Braber

The Braber 69.888.400 combines a BY-PY #4 driveline, a shear bolt clutch, triangular-profile shafting, and quick-disconnect hookup into one PTO shaft that transfers power and guards your equipment. For 540 RPM rotary cutters and light tillers, the 69.888.400 keeps the power flowing and the driveline protected.

69.888.400 — Series 4 Shear Bolt PTO Driveline, 1-3/8" 6-Spline, 35 HP.
