Series 6 Slip Clutch PTO Driveline — 42", 1-3/8" 6-Spline, 64 HP

The Braber 69.888.040 is a Series 6 slip clutch PTO driveline that transfers tractor power to an implement while protecting the driveline from overload and shock loads. Built on the BY-PY #6 Series for heavy-duty power transfer, it features a 6-spline 1-3/8" quick-disconnect tractor connection, a 4-disc slip clutch on the implement end, and a 64 HP at 540 RPM rating — a dependable driveline for demanding 540 RPM work. It's a direct replacement for part 69.000.040.

Power Transfer With Built-In Protection

A PTO driveline is the telescoping, universal-jointed shaft that carries power from the tractor's PTO to the implement's gearbox. What sets this one apart is its slip clutch. When an implement suddenly overloads — hitting a root, a rock, or a shock load — something in the driveline has to absorb it. Instead of a shear bolt that breaks and needs replacing, the 4-disc slip clutch momentarily slips, letting the friction discs give way under excess torque and then re-engaging once the load clears. That protects the driveline, gearbox, and tractor PTO from damage — and does it again and again, with no parts to replace after each event.

Features

BY-PY #6 Series Driveline

A BY-PY #6 Series driveline delivers reliable, heavy-duty power transfer sized for demanding 540 RPM applications.

4-Disc Slip Clutch

A 4-disc slip clutch, rated at 560 RPM, provides reusable overload protection — slipping under excess torque to shield the driveline and implement gearbox, then re-engaging automatically.

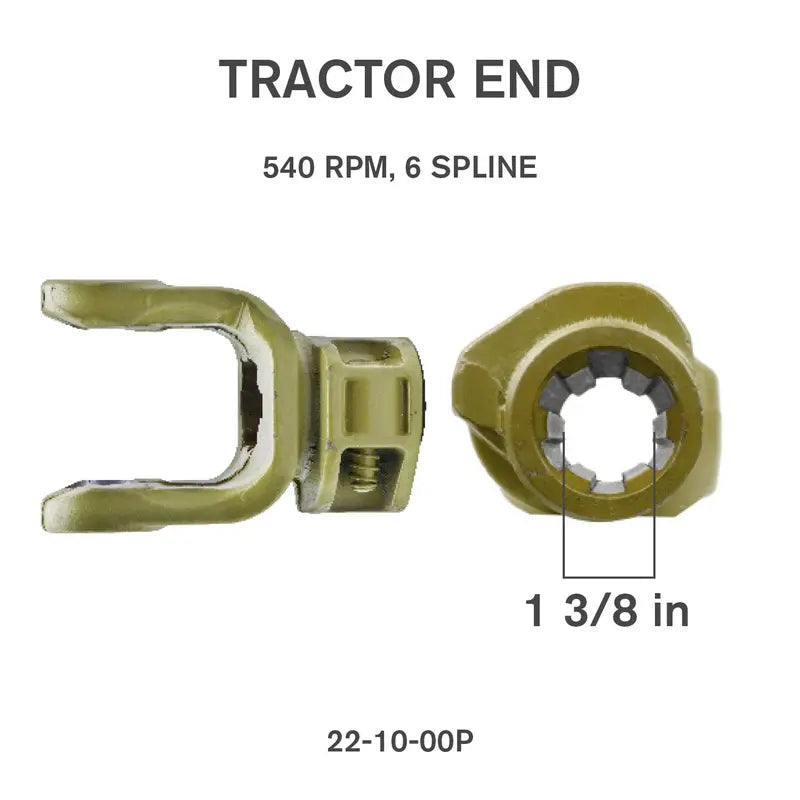

Quick-Disconnect Tractor Connection

A 6-spline 1-3/8" quick-disconnect tractor connection makes hookup fast and tool-free, while the implement end also uses a 6-spline 1-3/8" connection.

64 HP Rating

Rated for 64 HP at 540 RPM, the driveline handles demanding power transfer with confidence.

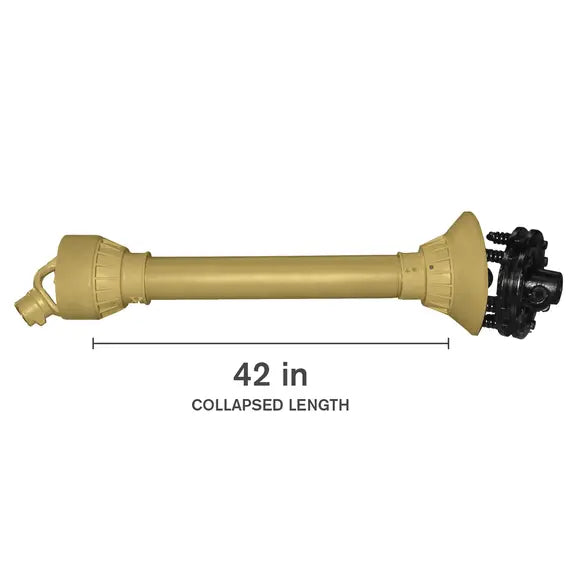

42" Collapsed Length

A 42" collapsed length suits a range of tractor-to-implement spacing; the telescoping shaft extends and retracts through the implement's travel.

Built for 540 RPM Implements

With its heavy-duty rating and slip-clutch protection, the 69.888.040 is suited for:

• 540 RPM medium tillers
• Other 540 RPM PTO-driven implements within its power rating
• Applications where shock loads and overloads are a risk
• Replacing a worn or damaged 69.000.040 driveline

Warranty

This PTO driveline is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: Series 6 Slip Clutch PTO Driveline
• Driveline Series: BY-PY #6 Series
• Tractor Connection: 6-Spline 1-3/8" Quick-Disconnect
• Implement Connection: 6-Spline 1-3/8"
• Slip Clutch: 4-Disc, Rated 560 RPM
• Power Rating: 64 HP at 540 RPM
• Collapsed Length: 42"
• Replaces: Part 69.000.040
• SKU: 69.888.040
• Brand: Braber Equipment

Note: Confirm spline sizes, length, and speed compatibility for your tractor and implement before use. Always operate with the driveline guard in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Reliable Power, Reusable Protection — Built by Braber

The Braber 69.888.040 combines a heavy-duty BY-PY #6 driveline, a 4-disc slip clutch, and quick-disconnect hookup into one 42" PTO shaft that transfers power and protects your equipment. For 540 RPM medium tillers and similar implements, the 69.888.040 keeps the power flowing and the driveline safe.

69.888.040 — Series 6 Slip Clutch PTO Driveline, 42", 1-3/8" 6-Spline, 64 HP.
