Series 4 Slip Clutch PTO Driveline — 46", 1-3/8" 6-Spline, Triangular Shafting

The Braber 69.885.446 is a Series 4 slip clutch PTO driveline that transfers tractor power to an implement while protecting the driveline from overload and shock loads. It pairs a 540 RPM, 6-spline 1-3/8" quick-disconnect tractor connection with a 4-disc slip clutch on the implement end, runs on strong triangular-profile telescoping shafting, and measures 46" collapsed — with a protective safety shield for safe operation.

Power Transfer With Built-In Protection

A PTO driveline is the telescoping, universal-jointed shaft that carries power from the tractor's PTO to the implement's gearbox — and this one is engineered to protect what's behind it. Its 4-disc slip clutch gives way under excess torque when an implement overloads or hits a shock load, then re-engages automatically once the load clears. Unlike a shear bolt that breaks and must be replaced, the slip clutch delivers reusable overload protection for the driveline, gearbox, and tractor PTO. As a Series 4 driveline, it's sized for lighter-duty 540 RPM applications.

Features

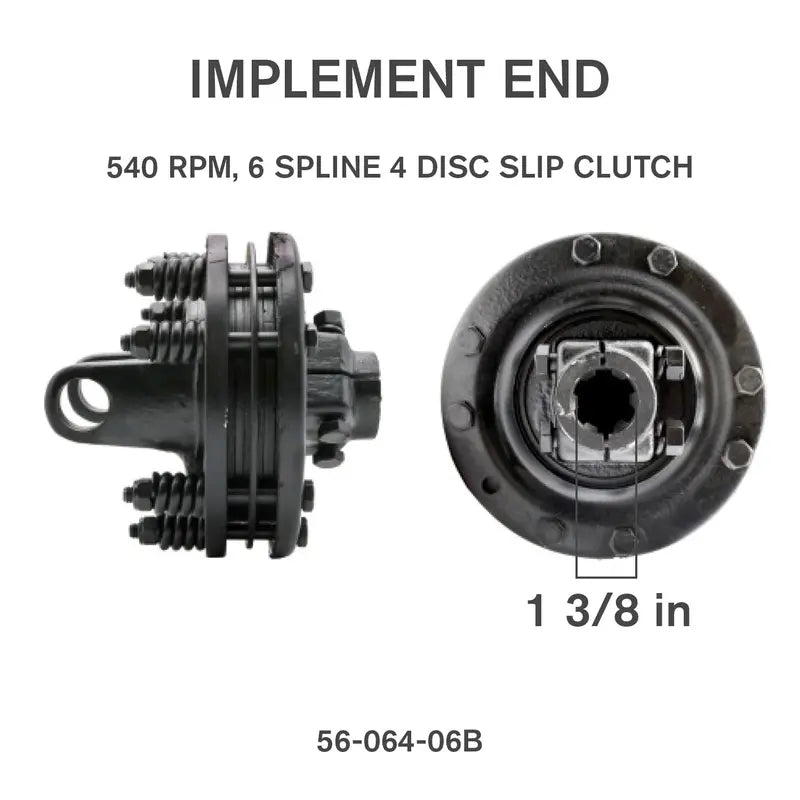

4-Disc Slip Clutch

A 4-disc slip clutch on the 540 RPM, 6-spline 1-3/8" implement connection provides overload protection that slips and re-engages — no parts to replace after each event.

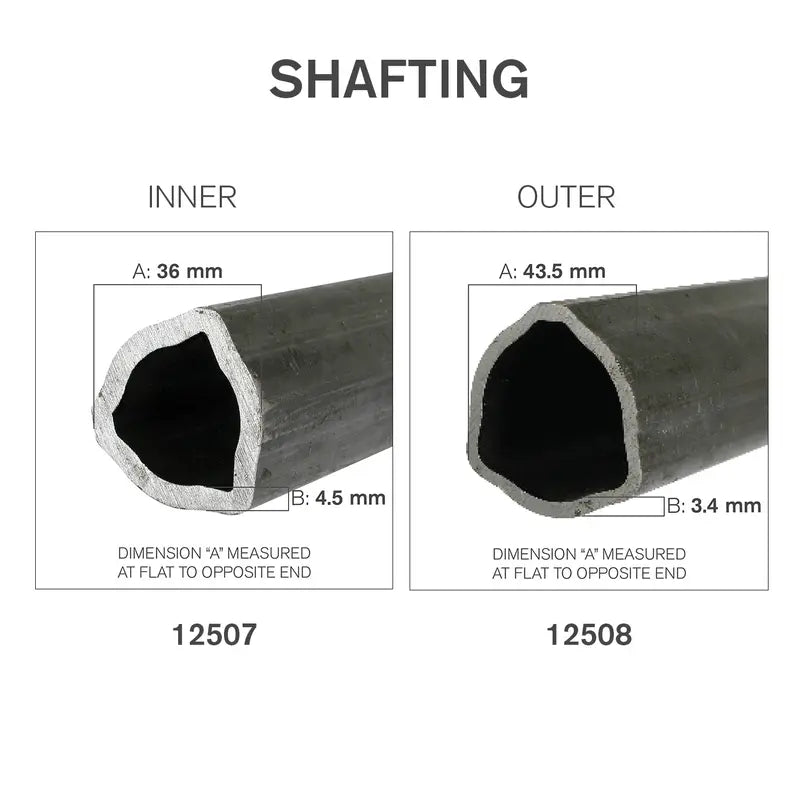

Triangular-Profile Shafting

Triangular-profile shafting — a 36 mm inner tube (4.5 mm wall) and 43.5 mm outer tube (3.4 mm wall) — telescopes smoothly through the implement's travel while transmitting torque securely, stronger than a plain round shaft.

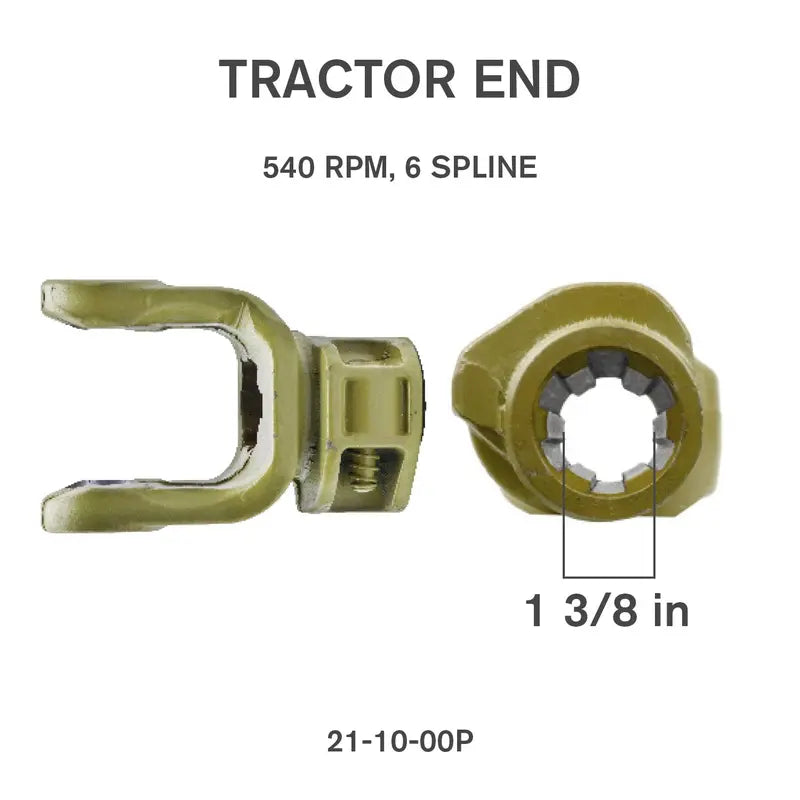

Quick-Disconnect Tractor Connection

A 540 RPM, 6-spline 1-3/8" quick-disconnect tractor connection makes hookup fast and tool-free.

Safety Shield

A protective safety shield covers the rotating driveline for dependable, safe operation.

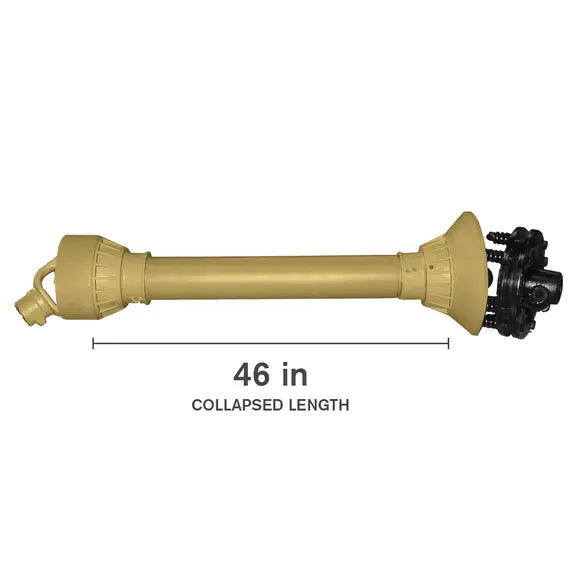

46" Collapsed Length

A 46" collapsed length suits a range of tractor-to-implement spacing, extending and retracting through operation.

Built for 540 RPM Implements

With its slip-clutch protection and Series 4 shafting, the 69.885.446 is suited for:

• 540 RPM PTO-driven tillers
• Rotary cutters and brush cutters
• Finish and rotary mowers
• Other lighter-duty 540 RPM implements where shock loads are a risk

Warranty

This PTO driveline is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: Series 4 Slip Clutch PTO Driveline
• Tractor Connection: 540 RPM, 6-Spline 1-3/8" Quick-Disconnect
• Implement Connection: 540 RPM, 6-Spline 1-3/8"
• Slip Clutch: 4-Disc
• Shafting: Triangular Profile — 36 mm Inner (4.5 mm Wall) / 43.5 mm Outer (3.4 mm Wall)
• Collapsed Length: 46"
• Construction: Heavy-Duty Steel with Protective Safety Shield
• SKU: 69.885.446
• Brand: Braber Equipment

Note: Confirm spline sizes, length, and speed compatibility for your tractor and implement before use. Always operate with the driveline guard in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Reliable Power, Reusable Protection — Built by Braber

The Braber 69.885.446 combines a 4-disc slip clutch, triangular-profile shafting, quick-disconnect hookup, and a full safety shield into one 46" Series 4 PTO driveline. For 540 RPM tillers, cutters, and mowers, the 69.885.446 keeps the power flowing and the driveline protected.

69.885.446 — Series 4 Slip Clutch PTO Driveline, 46", 1-3/8" 6-Spline, Triangular Shafting.
