Series 6 Slip Clutch PTO Driveline — 40", 1-3/8" 6-Spline, 64 HP

The Braber 69.777.039 is a Series 6 slip clutch PTO driveline that transfers tractor power to an implement while protecting the driveline from overload and shock loads. Built on the BY-PY #6 Series for heavy-duty power transfer, it features a 6-spline 1-3/8" quick-disconnect tractor connection, a 2-disc slip clutch on the implement end, strong triangular-profile shafting, and a 64 HP at 540 RPM rating — in a compact 40" collapsed length. It's a direct replacement for parts 69.000.038 and 69.000.039.

Power Transfer With Built-In Protection

A PTO driveline is the telescoping, universal-jointed shaft that carries power from the tractor's PTO to the implement's gearbox — and this one is engineered to protect what's behind it. Its 2-disc slip clutch gives way under excess torque when an implement overloads or hits a shock load, then re-engages automatically once the load clears. Unlike a shear bolt that breaks and must be replaced, the slip clutch delivers reusable overload protection for the driveline, gearbox, and tractor PTO. As a Series 6 driveline, it carries a heavy-duty 64 HP rating in a short 40" package.

Features

BY-PY #6 Series Driveline

A BY-PY #6 Series driveline delivers reliable, heavy-duty power transfer sized for demanding 540 RPM applications.

2-Disc Slip Clutch

A 2-disc slip clutch, rated at 560 RPM, on the 6-spline 1-3/8" implement connection provides overload protection that slips and re-engages — no parts to replace after each event.

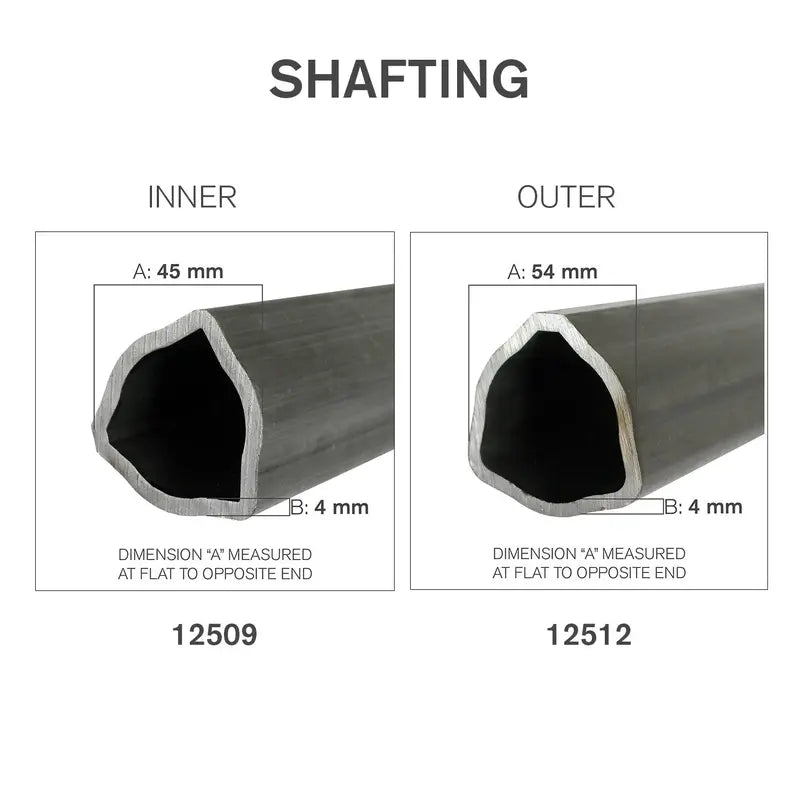

Triangular-Profile Shafting

Triangular-profile shafting — a 45 mm inner and 54 mm outer tube with a 4 mm wall — telescopes smoothly through the implement's travel while transmitting torque securely, stronger than a plain round shaft.

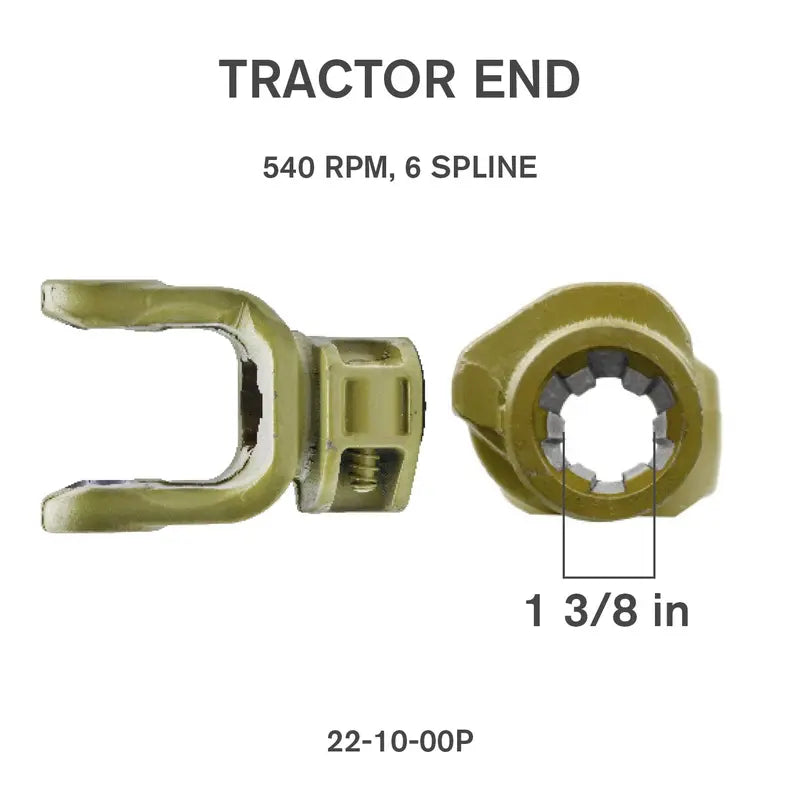

Quick-Disconnect Tractor Connection

A 6-spline 1-3/8" quick-disconnect tractor connection makes hookup fast and tool-free.

64 HP Rating

Rated for 64 HP at 540 RPM, the driveline handles demanding power transfer with confidence.

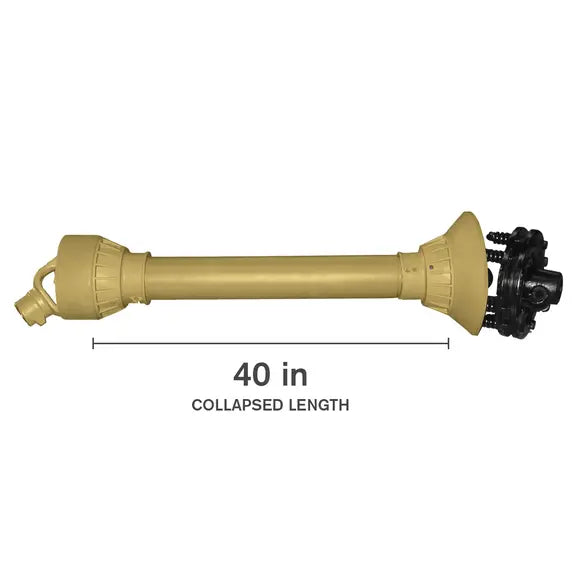

40" Collapsed Length

A 40" collapsed length suits closer tractor-to-implement spacing, extending and retracting through operation.

Built for 540 RPM Implements

With its heavy-duty rating and slip-clutch protection, the 69.777.039 is suited for:

• 540 RPM medium tillers
• Other 540 RPM PTO-driven implements within its power rating
• Applications where shock loads and overloads are a risk
• Replacing a worn or damaged 69.000.038 or 69.000.039 driveline

Warranty

This PTO driveline is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: Series 6 Slip Clutch PTO Driveline
• Driveline Series: BY-PY #6 Series
• Tractor Connection: 6-Spline 1-3/8" Quick-Disconnect
• Implement Connection: 6-Spline 1-3/8"
• Slip Clutch: 2-Disc, Rated 560 RPM
• Shafting: Triangular Profile — 45 mm Inner / 54 mm Outer Tube, 4 mm Wall
• Power Rating: 64 HP at 540 RPM
• Collapsed Length: 40"
• Replaces: Parts 69.000.038 and 69.000.039
• SKU: 69.777.039
• Brand: Braber Equipment

Note: Confirm spline sizes, length, and speed compatibility for your tractor and implement before use. Always operate with the driveline guard in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

Reliable Power, Reusable Protection — Built by Braber

The Braber 69.777.039 combines a heavy-duty BY-PY #6 driveline, a 2-disc slip clutch, triangular-profile shafting, and quick-disconnect hookup into one compact 40" PTO shaft. For 540 RPM medium tillers and similar implements, the 69.777.039 keeps the power flowing and the driveline protected.

69.777.039 — Series 6 Slip Clutch PTO Driveline, 40", 1-3/8" 6-Spline, 64 HP.
