15/16" Twisted Clevis — Forged, 90° Orientation, 20,000 lb Working Load Limit

The Braber 64.201.516 is a twisted, fully forged clevis for connecting hitches, chains, and implements at a 90° orientation. Rated for a 20,000 lb working load limit, it delivers serious strength for heavy-duty towing and hitching, with a 7/8" heat-treated pin and a 1-7/16" clevis opening for secure, versatile connections.

Forged Strength at a Right Angle

The twisted design is what makes this clevis special: its body is turned 90°, so it links a chain or implement at a right angle to the attachment point — ideal where a straight clevis can't orient the load correctly. And because it's fully forged rather than cast or welded, its grain structure is aligned for consistent strength with no built-in stress, making it stronger and more reliable under heavy loads. The heat-treated pin adds durability, and a two-tone finish — a black powder-coated body with a yellow zinc dichromate-plated pin — protects against corrosion inside and out.

Features

• Twisted forged clevis for connecting hitches, chains, and implements at a 90° orientation
• 20,000 lb working load limit for heavy-duty towing and hitching
• Fully forged with aligned grain structure for consistent strength and no built-in stress

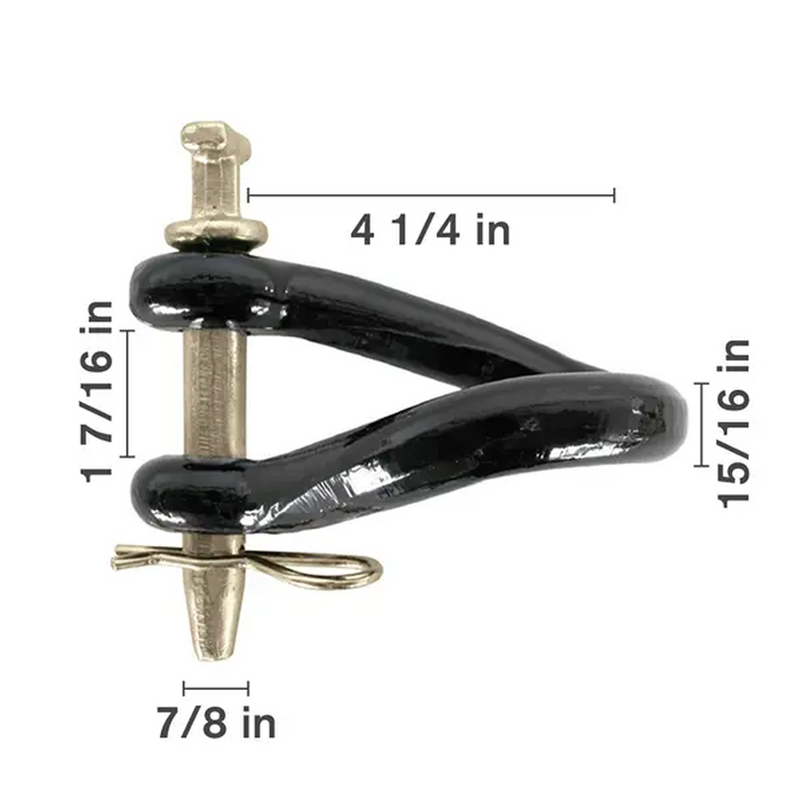

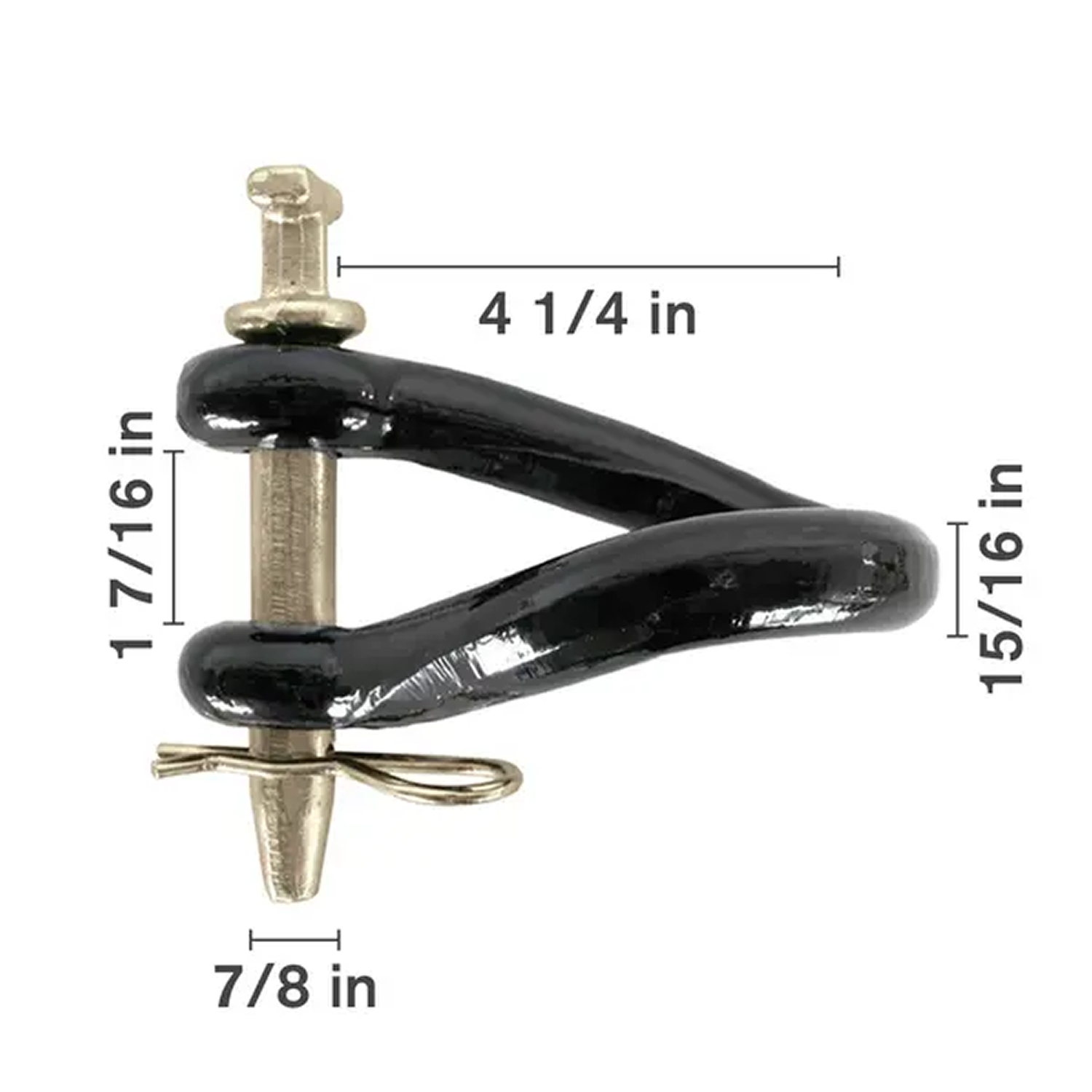

• 7/8" heat-treated pin with a 1-7/16" clevis opening for secure, versatile connections
• 15/16" body diameter with a 4-1/4" usable length for reliable fitment
• Black powder-coated body with a yellow zinc dichromate-plated pin for lasting corrosion resistance
• Sturdy 4.2 lb build

Important Usage Note

This is farm hardware — not for lifting. Do not use the clevis for overhead or personnel lifting, and never exceed the rated working load limit.

Warranty

This clevis is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: Twisted Forged Clevis (90° Orientation)
• Working Load Limit: 20,000 lbs
• Construction: Fully Forged
• Pin: 7/8" Heat-Treated
• Clevis Opening: 1-7/16"
• Body Diameter: 15/16"
• Usable Length: 4-1/4"
• Finish: Black Powder-Coated Body, Yellow Zinc Dichromate-Plated Pin
• Weight: 4.2 lbs
• SKU: 64.201.516
• Brand: Braber Equipment

Note: Farm hardware — not for lifting. Do not exceed the working load limit. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

64.201.516 — 15/16" Twisted Forged Clevis, 90° Orientation, 20,000 lb Working Load Limit.
