PTO Adapter — 1-1/8" 6-Spline Female to 1-3/8" 6-Spline (540) Male, Pin-Lock

The Braber 551PA is a PTO adapter that adapts a 1-1/8" 6-spline female end to a 1-3/8" 6-spline (540 RPM standard) male end, letting you pair mismatched tractor and implement shafts. Its pin-lock design — with drilled holes on both ends for locking-pin retention — holds the adapter securely, and heavy-duty steel construction delivers dependable power transfer.

Bridge Mismatched PTO Shafts

When a tractor's PTO and an implement's driveline don't share the same spline size, they can't connect — and that's the problem this adapter solves. The 551PA takes a smaller 1-1/8" 6-spline female connection on one end and presents the common 1-3/8" 6-spline (540 RPM) male output on the other, bridging the gap between the two. Rather than a clamp, it uses a pin-lock system: drilled holes on both ends accept locking pins to retain the adapter on the shafts for a secure hold. Its heavy-duty steel build stands up to the torque of real power transfer.

Features

• PTO adapter for connecting mismatched tractor and implement shafts
• Adapts a 1-1/8" 6-spline female end to a 1-3/8" 6-spline (540 RPM standard) male end
• Pin-lock design with drilled holes on both ends for locking-pin retention

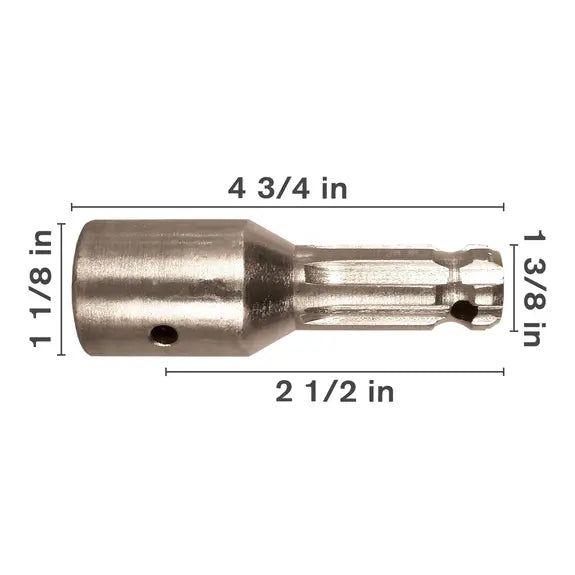

• 4-3/4" overall length with a 2-1/2" female section, 1-1/8" female diameter, and 1-3/8" male diameter
• Heavy-duty steel construction for dependable power transfer

Warranty

This PTO adapter is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: PTO Spline Adapter (Pin-Lock)
• Female End: 1-1/8" 6-Spline
• Male End: 1-3/8" 6-Spline (540 RPM Standard)
• Retention: Pin-Lock (Drilled Holes Both Ends)
• Overall Length: 4-3/4"
• Female Section: 2-1/2"
• Female Diameter: 1-1/8"
• Male Diameter: 1-3/8"
• Construction: Heavy-Duty Steel
• SKU: 551PA
• Brand: Braber Equipment

Note: Confirm PTO spline sizes and speed compatibility for your tractor and implement before use. Locking pins are used to retain the adapter — always operate with PTO guards and shields in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

551PA — PTO Adapter, 1-1/8" 6-Spline Female to 1-3/8" 6-Spline (540) Male, Pin-Lock.
