8" PTO Extender — 1-3/8" 6-Spline (540), Quick-Disconnect

The Braber 508PA is a PTO extender that lengthens the reach of a PTO shaft, for connecting implements that sit farther back from the tractor. With a 1-3/8" 6-spline connection on both ends for standard 540 RPM compatibility and a quick-disconnect (QD) female collar for fast, tool-free hookup, it adds 8" of shaft reach on rugged, corrosion-resistant construction.

Add Reach to Your PTO

Sometimes an implement's driveline sits too far back to reach the tractor's PTO — and instead of wrestling with the fit, you add an extender. The 508PA slips between the tractor PTO and the implement shaft, adding 8" of reach with the same 1-3/8" 6-spline connection on both ends, so nothing about the standard 540 RPM hookup changes except the length. Its quick-disconnect collar lets you snap the connection on and off by hand — no tools — and a yellow zinc dichromate-plated finish protects the steel against corrosion for dependable power transfer.

Features

• PTO extender that lengthens the reach of a PTO shaft for implements that sit farther back
• 1-3/8" 6-spline on both ends for standard 540 RPM PTO compatibility
• Quick-disconnect (QD) female collar for fast, tool-free hookup and release

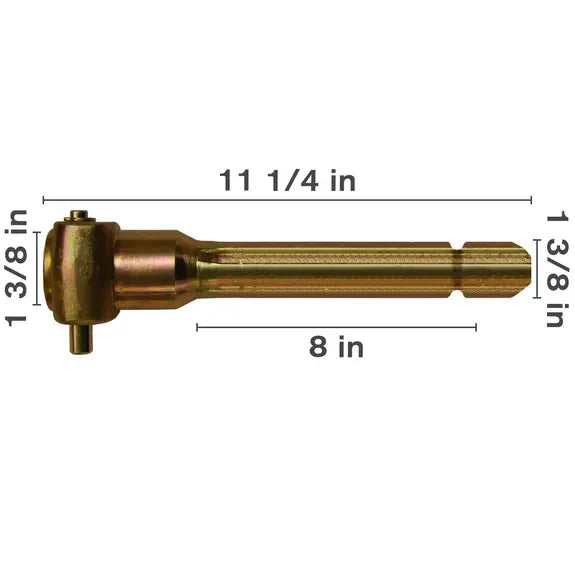

• 11-1/4" overall length with an 8" shaft extension and 1-3/8" diameter on both ends
• Yellow zinc dichromate-plated steel construction for corrosion resistance and dependable power transfer

Warranty

This PTO extender is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: PTO Extender
• Splines: 1-3/8" 6-Spline, Both Ends (540 RPM Standard)
• Connection: Quick-Disconnect (QD) Female Collar
• Overall Length: 11-1/4"
• Shaft Extension: 8"
• Diameter (Both Ends): 1-3/8"
• Finish: Yellow Zinc Dichromate-Plated Steel
• SKU: 508PA
• Brand: Braber Equipment

Note: Confirm PTO spline sizes and speed compatibility for your tractor and implement before use. Always operate with PTO guards and shields in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

508PA — 8" PTO Extender, 1-3/8" 6-Spline (540), Quick-Disconnect.
