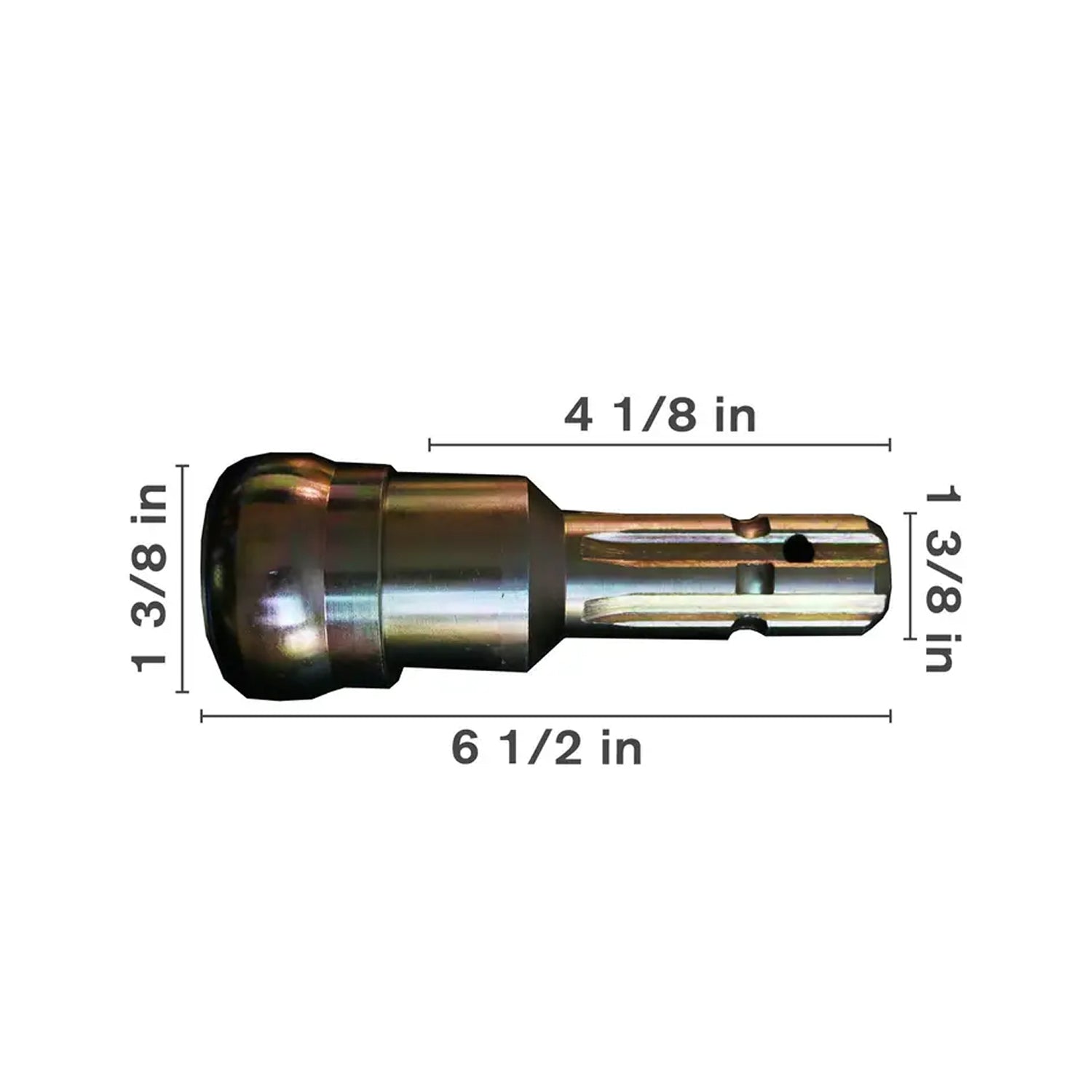

PTO Extender — 1-3/8" 6-Spline (540), Quick-Disconnect, +4-1/8" Reach

The Braber 500PA is a PTO adapter/extender that adds shaft length, for connecting implements that sit farther back from the tractor. With a 1-3/8" 6-spline connection on both ends for standard 540 RPM compatibility and a quick-disconnect (QD) female collar for fast, tool-free hookup, it adds 4-1/8" of reach on heavy-duty steel construction.

Add Reach to Your PTO

Sometimes an implement's driveline sits too far back to reach the tractor's PTO — and instead of wrestling with the fit, you add an extender. The 500PA slips between the tractor PTO and the implement shaft, adding 4-1/8" of reach with the same 1-3/8" 6-spline connection on both ends, so nothing about the standard 540 RPM hookup changes except the length. Its quick-disconnect collar snaps the connection on and off by hand — no tools — and the heavy-duty steel build stands up to the torque of real power transfer.

Features

• PTO adapter/extender that adds shaft length for implements that sit farther back
• 1-3/8" 6-spline on both ends for standard 540 RPM PTO compatibility
• Quick-disconnect (QD) female collar for fast, tool-free hookup and release
• Adds 4-1/8" of shaft length
• 7-1/4" overall length for reliable fitment
• Heavy-duty steel construction for dependable power transfer

Warranty

This PTO extender is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: PTO Adapter / Extender
• Female End: 1-3/8" 6-Spline (Quick-Disconnect)
• Male End: 1-3/8" 6-Spline
• Speed: 540 RPM Standard
• Connection: Quick-Disconnect (QD) Female Collar
• Added Reach: 4-1/8"
• Overall Length: 7-1/4"
• Construction: Heavy-Duty Steel
• SKU: 500PA
• Brand: Braber Equipment

Note: Confirm PTO spline sizes and speed compatibility for your tractor and implement before use. Always operate with PTO guards and shields in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

500PA — PTO Extender, 1-3/8" 6-Spline (540), Quick-Disconnect, +4-1/8" Reach.
