Quick-Disconnect Yoke Kit — PTO Locking Pin, Spring & C-Clip Rebuild Set

The Braber 401000001 is a replacement quick-disconnect yoke kit that restores the locking-pin mechanism on a PTO yoke, bringing back fast, tool-free connection and release. It includes the locking pin, spring, and retaining C-clip for a complete rebuild — the direct-replacement parts to service a worn or damaged QD yoke instead of replacing the whole thing.

Rebuild the QD Mechanism, Not the Whole Yoke

A quick-disconnect yoke lets you snap a PTO shaft on and off by hand — but over time the spring-loaded locking pin wears, the spring weakens, or the C-clip loosens, and the collar stops holding reliably. This kit replaces all three wear parts at once, restoring the positive lock without the cost of a new yoke. The components are direct-replacement for quick, straightforward servicing, and a yellow zinc dichromate-plated steel finish resists corrosion for dependable performance.

Features

• Replacement QD yoke kit that restores the locking-pin mechanism for fast, tool-free connection and release
• Includes the locking pin, spring, and retaining C-clip for a complete rebuild

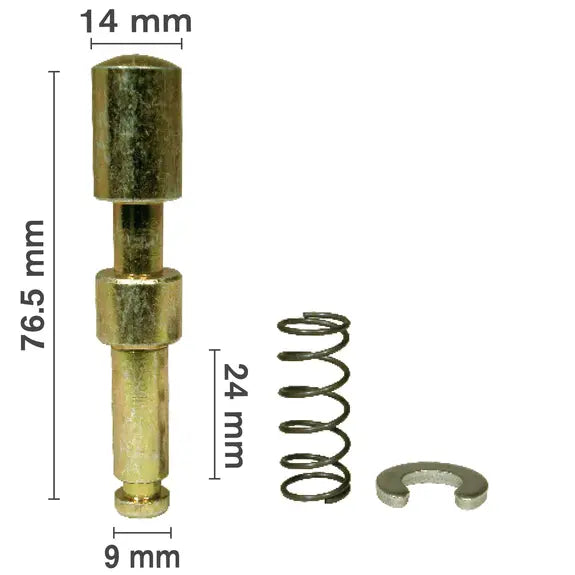

• 76.5 mm overall pin length with a 14 mm head diameter and 9 mm base, plus a 24 mm spring
• Direct-replacement components for quick, straightforward servicing of a worn or damaged QD yoke
• Yellow zinc dichromate-plated steel for corrosion resistance and dependable performance

Warranty

This QD yoke kit is backed by Braber Equipment's limited warranty — contact your dealer for current warranty terms and coverage details.

Product Specifications

• Type: Quick-Disconnect PTO Yoke Rebuild Kit
• Contents: Locking Pin, Spring, Retaining C-Clip
• Pin Length: 76.5 mm
• Pin Head Diameter: 14 mm
• Pin Base: 9 mm
• Spring: 24 mm
• Finish: Yellow Zinc Dichromate-Plated Steel
• SKU: 401000001
• Brand: Braber Equipment

Note: Confirm the kit matches your quick-disconnect yoke before servicing. Always operate with PTO guards and shields in place. Product may vary slightly from images shown. Specifications are subject to change without notice — confirm details with your dealer prior to purchase.

401000001 — Quick-Disconnect Yoke Kit with Locking Pin, Spring & C-Clip.
