Secure, Vibration‑Proof Mounting for Tiller Tines in One Simple Kit

The 14mm x 40mm tiller bolt assembly is a heavy-duty fastener for agricultural equipment, engineered to deliver reliable tine retention on rotary tillers and rotavators. Optimised for 14 mm diameter mounting holes and a 40 mm clamping length, this complete kit eliminates tine loosening, bolt breakage, and the frustrating downtime that comes with mismatched hardware.

What Makes Our 14mm x 40mm Assembly Different

Generic hardware‑store bolts are manufactured for general construction, not for the repeated shock loading of a rotary tiller. Mixed kits with unknown grades, incorrect thread lengths, or loose tolerances leave money on the table-and tines on the ground.

• Purpose‑built shoulder and thread length – The length of a tiller bolt assembly is 40 mm from under the head to the tip, but not all of that length is threaded. Approximately 20–25 mm of unthreaded shank sits in the shear plane so threads never bear the cutting load, reducing hole elongation and wobble.

• Locking hardware included – The assembly includes a bolt, nut, and washer, all strength‑matched. The prevailing‑torque lock nut and hardened flat washer work together to keep clamp force constant under relentless vibration.

• Precisely machined 14.0 mm diameter – Tight manufacturing tolerance (±0.05 mm) eliminates the rattle and misalignment common with "14 mm class" bolts that actually measure 14.2 mm or more.

How a 14mm x 40mm Tiller Bolt Assembly Works in Practice

Installation follows a clear, repeatable sequence. If you can read a torque wrench, you can do this in minutes per tine.

1. Confirm hole size and orientation – Measure the tine ear and flange holes to verify they are 14 mm. Clean any rust, packed soil, or paint from mating surfaces so the parts seat flat.

2. Seat the tine on the rotor flange – Position the tine's mounting pad flush against the flange. Ensure the curve faces the correct direction (right‑hand or left‑hand, per your tiller's layout).

3. Insert the 14mm x 40mm bolt – Pass the bolt through from the flange side so the nut faces outward, away from direct soil impact. The head style of the bolt often includes flanged hex or plow-style heads, which sit flush and resist spinning during torquing.

4. Add washer(s) and lock nut – Place the hardened flat washer, then thread the locking nut on by hand until finger‑tight. This ensures the washer is oriented correctly and threads are not cross‑started.

5. Tighten to recommended torque – Using a calibrated torque wrench, tighten to the specification in your machine manual. Typical values for M14 high‑tensile bolts: approximately 145 N·m (105 ft‑lb) for grade 8.8, or approximately 200 N·m (150 ft‑lb) for grade 10.9. Always defer to the manufacturer's figure at this point.

6. Recheck after the first hour of use – Vibration, heat, and surface settling can reduce clamp load during initial operation. Re‑torque all tine bolts after roughly one hour of work, then inspect at the start of each season.

Product Details: 14mm x 40mm Tiller Bolt Assembly

A quick‑scan spec list for owners, mechanics, and parts managers who need to confirm fitment before they add items to their cart.

• Material / Finish – Tiller blade bolts are made from high-tensile steel. Heat treated boron steel is used for some tiller bolts, delivering superior hardness and fatigue resistance. Finished in zinc electroplate to guard against corrosion in wet, acidic, or fertiliser‑exposed environments.

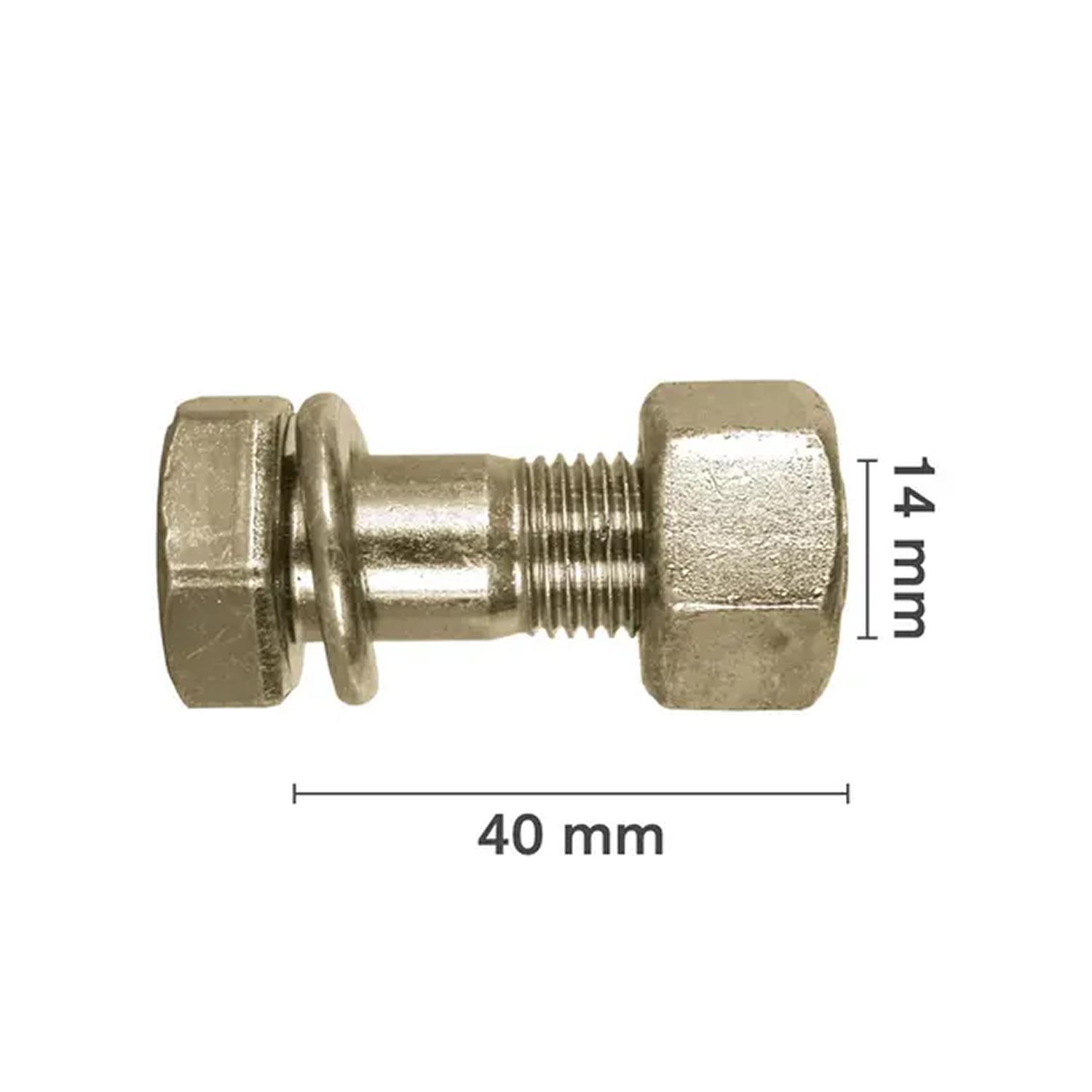

• Dimensions / Specs – Nominal shank diameter: 14.00 mm. Overall bolt length: 40 mm (under head to tip). Thread pitches are often coarse or fine, such as M14 × 2.0 or M14 × 1.5-verify your machine's specification.

• Assembly Components – Each assembly includes: 1 × 14 mm × 40 mm high‑tensile bolt, 1 × strength‑matched lock nut (nyloc or distorted‑thread), 1 × hardened flat washer. Tiller bolt kits ensure a secure fit for tiller tines right out of the pack.

• Compatible Tine Types – Suits common "L" and "C" style rotary tiller tines that use a single 14 mm bolt per mounting ear.

• Typical Applications – Compact‑tractor 3‑point rotary tillers in the 30–70 hp range; larger walk‑behind rototillers and mini rotary units used in orchards, market gardens, and pasture renovation. Bolts are available in grade 8.8 and 10.9 to suit standard through to heavy‑duty operating conditions.

Frequently Asked Questions

Common fitment and usage questions answered quickly so you can order with confidence.

How do I confirm that a 14mm x 40mm bolt assembly will fit my tiller? Measure the tine and flange mounting‑hole diameter (should be 14 mm) and the total thickness of the clamped parts (approximately 30–45 mm). Then search your owner's manual for the specified M14 hardware size and grade.

Is 40 mm the overall bolt length or the grip length? The 40 mm is the nominal length from under the bolt head to the end of the shank. Of that, roughly 20–25 mm is unthreaded (grip/shank), and 15–18 mm is threaded for nut engagement-enough to clamp typical rotor‑flange‑plus‑tine stacks securely.

Can I reuse the lock nuts? For nyloc or deformed‑thread nuts, best practice is to replace them whenever they no longer offer noticeable resistance during hand threading. Reused lock nuts can lose their prevailing torque and allow the bolt to back off under vibration.

What torque should I use on a 14mm tiller bolt? Typical values: approximately 145 N·m (105 ft‑lb) for grade 8.8 and approximately 200 N·m (150 ft‑lb) for grade 10.9. Always check your tiller manufacturer's specification-over‑torquing can yield the bolt or damage the flange.

Will this assembly work with both left‑hand and right‑hand tines? Yes. The bolt assembly is direction‑neutral and can be used on either LH or RH tines, provided the hole size and stack thickness match the 14 mm × 40 mm specification.

How often should I replace my tiller bolt assemblies? Inspect hardware at the start of each season or after every 50–100 operating hours. Replace any bolt showing visible stretch, thread damage, or heavy corrosion. Keeping a small stock of spares on hand avoids delays during peak tillage periods.

Ready to Secure Your Tiller Tines Properly?

Loose, corroded, or mismatched bolts cost you more than a few minutes in the field-they damage flanges, wear out tines prematurely, and leave uneven soil finishes that affect crop establishment. Replacing every bolt on the rotor with correctly sized 14mm x 40mm assemblies is the simplest upgrade you can make for consistent, trouble‑free tilling.
